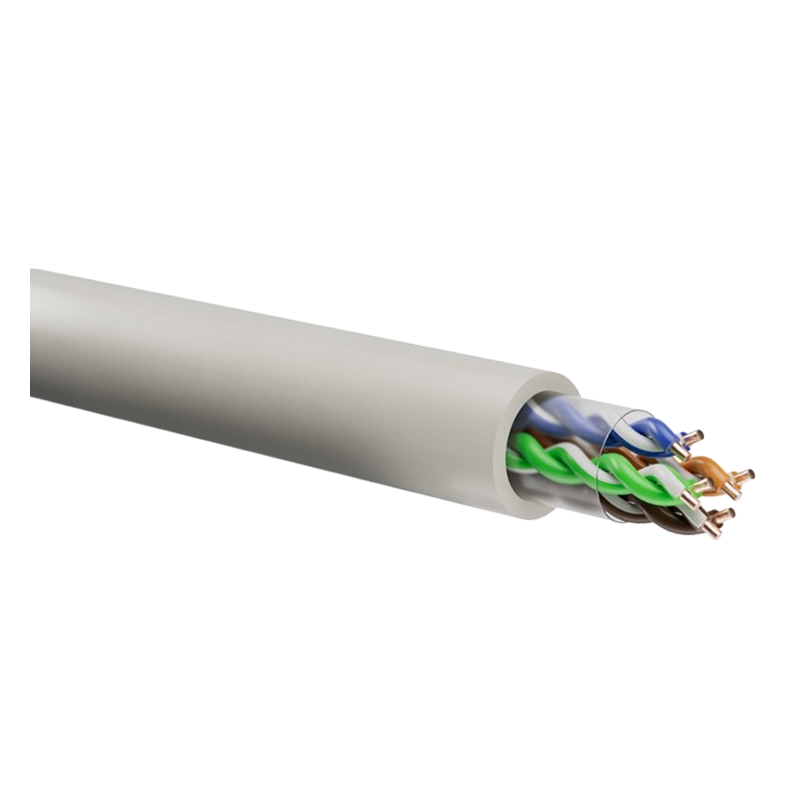

Item CAT5E U/UTP LSZH CPR ECA Data Cable 305 meter reel RUP50305
IT2 RUP50305
Item CAT5E U/UTP LSZH CPR ECA cable:
- 4 pairs
- U/UTP version
- Without shielding
- PVC sheath
- Sheath diameter 4.9 mm

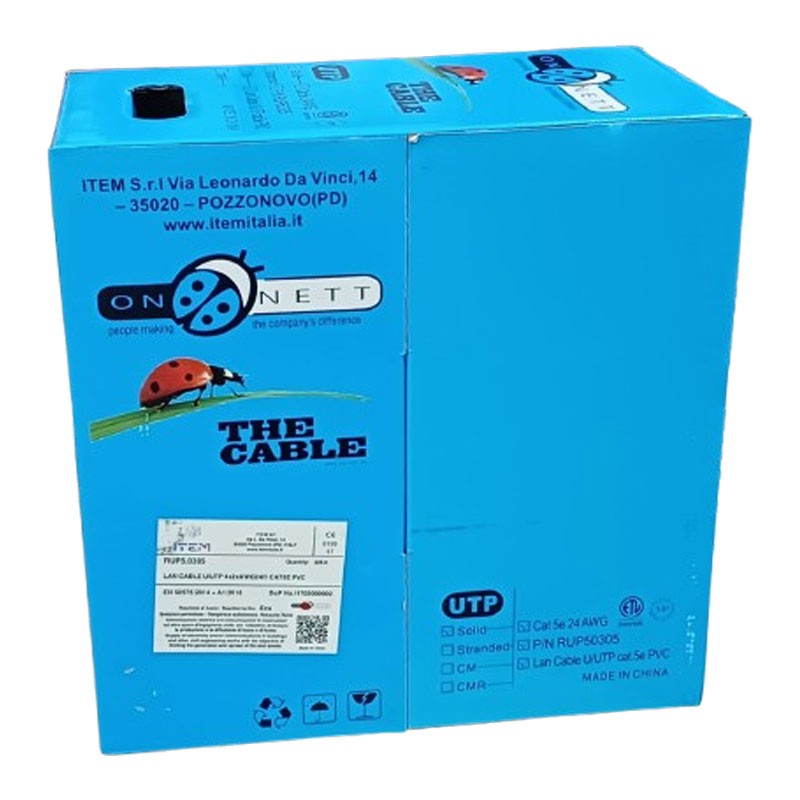

Cable sellable only by hanks of 305 meters.
The selling price is intended per meter.
€0.42
Items Available: 3050
: 305
Applications:
- ETHERNET, TP-DDI, 1000BASE TX, 1000BASET, ATM(TP)
Reference specifications:
- CEI 20-37-4-5, CEI 20-52. CEI 20-35 (IEC 60322-1), CEIEN 50267-2-1,CEIEN 50267-2-2, EN 50173 Ed. 2, EN 50288-2/3, EN 55022, EN 50081, EN 50082, IEC61034/2, IEC 60754-1-1, IEC60754-2, IEC61156, TIA/EIA-568-A5/B2 ISO/IEC-11801 Ed. 2
Directives:
- RoHS 2002/95/EC
Inner conductor:
- Rigid red copper - nominal cross section AWG 24/1 or 0.48 mm2
Individual conductor insulation:
- Polyolefin
Outer Sheath:
- Non-fire-propagating polyvinyl chloride (PVC-FR)
Characteristics:
- Characteristic impedance: 100 ± 15
- Nominal mute capacitance: 49 pF/m
- Max. loop resistance: 16.8 ?//100 m at 20 °C
- Nominal propagation rate: 68%
- Operating voltage: 80 V max.
- Insulation resistance: 5 G? x km
- Operating temperature: -15 °C ÷ +70 °C
- Installation temperature: -5 °C ÷ +50 °C
- Minimum bending radius: 52 mm
- Maximum tensile load: 20 kg
- Cable weight (PVC-LSØH): 36 Kg./Km
- Cable weight (PE): 42 Kg./Km
There are no reviews
Data sheet
- Type: Networking cables
