Cembre Bootlace Ferrule 4mmq 12mm for Copper Conductors 200pcs PKC412
CEM PKC412
8016692056852

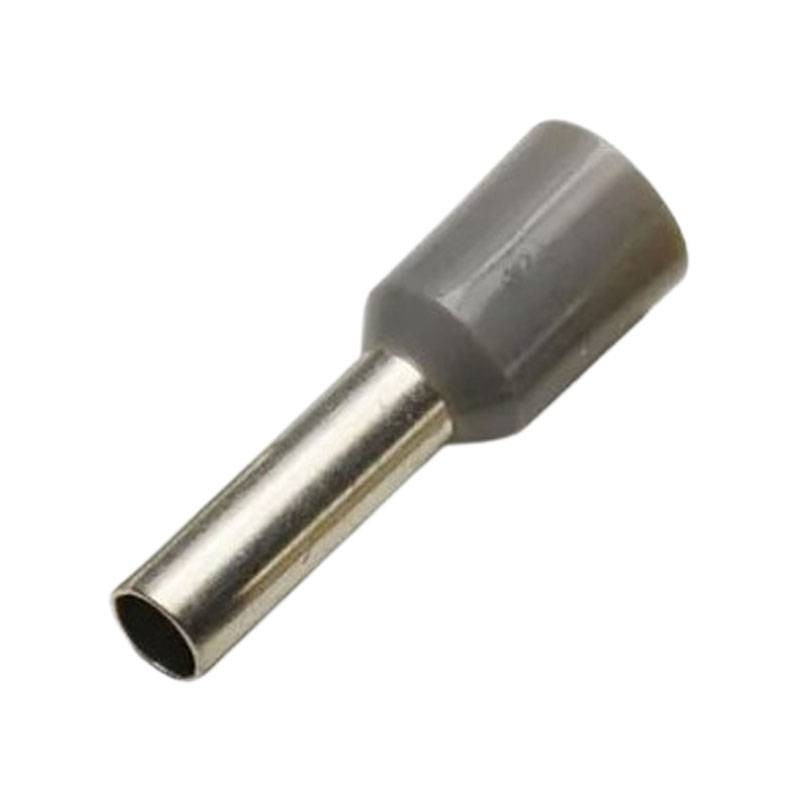

Cembre pre-insulated bootlace ferrule, professional, quick and safe connection for flexible copper cables, offers superior performance and easy compression due to the process of annealing and electrolytic tinning, with the following features:
-
Cable cross-section range: 4 sq. mm
-
Stripping length: 12 mm
-
Tube material: 99.9% pure electrolytic copper
-
Plating: Tin
-
Insulator: PA6
-
Colour: Grey
Selling price is per single piece, sellable by 200-piece package.
€0.05
Items Available: 200
Cembre Bootlace Ferrule reliability and safety conductor connection
The 4 sq. mm PKC bootlace ferrule is designed to provide a safe, durable and compliant electrical connection, ideal for use with multi-terminal cables and screw terminals.
Thanks to electrolytic annealing and tinning, the high-purity (99.9%) copper body offers excellent conductivity and superior mechanical strength, facilitating crimping operations even under harsh conditions.
PA6 insulation with intelligent design
The PA6 polyamide insulating jacket is designed to simplify conductor insertion due to its funnel-shaped inner shape, which prevents fraying of the strands and significantly reduces wiring time.
This design also improves installation safety by protecting the connection area and easily restoring cable insulation.
Wide applicability in electrical installations
Perfect for electrical panels, circuit breakers, consumer units, automation systems and control panels, the 4 sq. mm PKC tube easily integrates into all contexts where a secure and stable connection of flexible multi-terminal conductors is required.
Cembre Pre-insulated Bootlace Ferrule Technical Specifications
Technical Specifications
| Cable cross-section | 4 mmq |
| Conductor Material. | Tin-plated electrolytic copper (≥99.9%) |
| Annealing | Yes |
| Required stripping length | 12 mm |
| Insulation | PA6 polyamide blouse |
| Internal insulation shape | Funnel-shaped, to facilitate cable insertion |
| Color | Gray |
| Standard | DIN 46228/4 |
| Compatibility | Multi-strand flexible conductors (class 5) |
| Packaging | 200 pieces |
There are no reviews
Data sheet
- Type: Bootlace Ferrules
- Cross-Section: 4mmq
