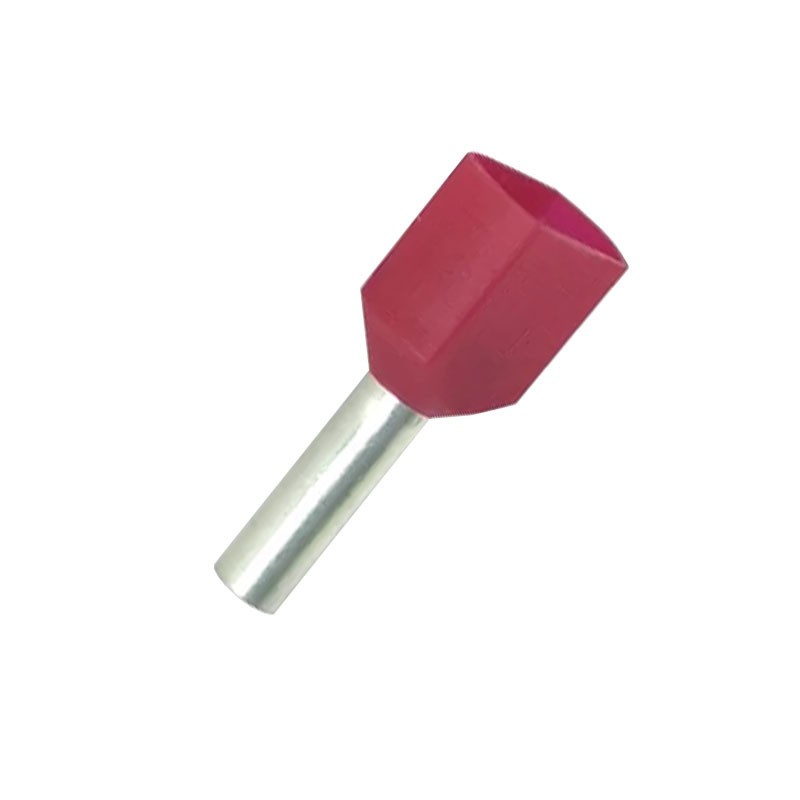

Cembre double tubing pre-insulated terminal 2X1mmq 8mm pieces 100 PKT108
CEM PKT108
8016692036441
Cembre double pre-insulated terminal tube for flexible copper cables, nominal cross-section 2x1mmq, length 8mm, pack of 100 pieces. Colour Red.
€0.04
Items Available: 10600
: 300
The tubes, the terminals of the series PKT are made of electrolytic copper and tin plated; specially designed for use in applications where it is necessary to insert in the same receptacle, 2-wire.
The connectors are made from electrolytic copper Cu-DHP UNI 5649/1988
Features:
- Stiffness dieletttrica (KV/mm) : >16,5
- Volume resistivity (? cm) : >1013
- Temp.masisma of the year (°C) : 115-130
- Flammability (UL94) V2
- Density (g/cm3) : 1,14
- Absorption d H2O (%) : 1,5
- Resistance at break (N/mm2) : 77
- The connectors can also be stored at a minimum temperature not below - 40°C
- Halogen-free
- Minimum operating temperature -20 °C
- Maximum use temperature of 115 °C
- Maximum use temperature for short periods up to 130 °C
- Material (Body) Copper-ETP, tin plated electrolytically
- Material (Blouse partially insulation) Polyamide PA6.
There are no reviews
Data sheet
- Type: Bootlace Ferrules
- Cross-Section: 2-1mmq
