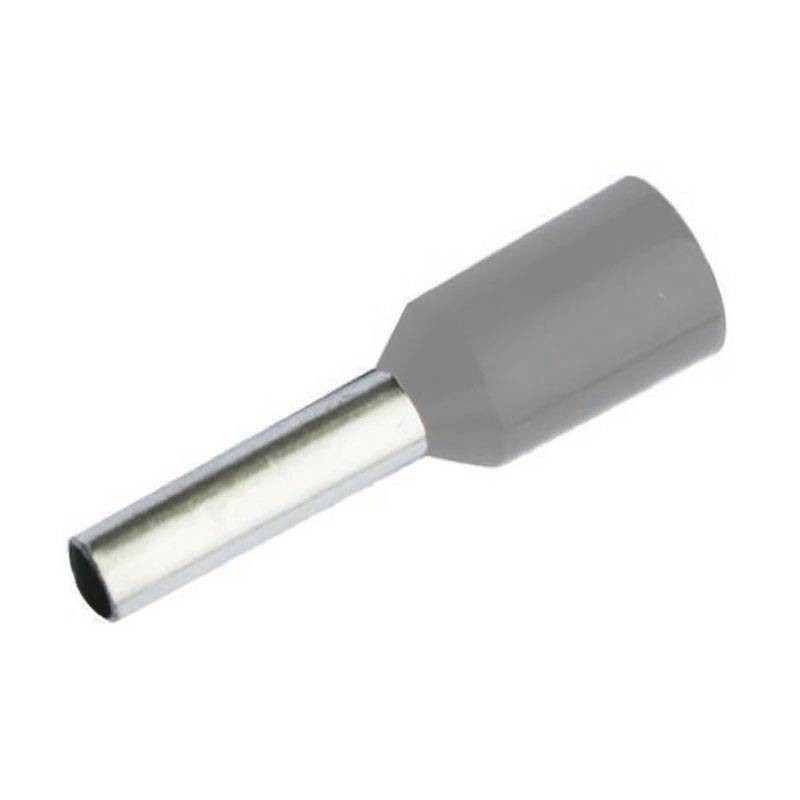

Cembre 0.75mmq 8mm preinsulated Bootlace Ferrule for Conductors 500pcs PKD7508
CEM PKD7508
8016692084602
Cembre pre-insulated bootlace ferrule, safe and fast connection for flexible copper conductors, with the following characteristics:
-
Wire cross-section range: 0.75 sq. mm
-
Stripping length: 8 mm
-
Conductor material: electrolytic copper
-
Conductor treatment: Tinned
-
Insulation material: Polyamide PA6, halogen-free
-
Colour: Grey
Selling price is per piece, sellable by package of 500 pieces.
€0.02
Items Available: 52000
: 9000
Maximum reliability bootlace ferrule for electrical connections
The PKD bootlace ferrule is designed to ensure a reliable and durable connection of multi-terminal flexible cables with screw terminals or terminal blocks. This type of terminal is essential in electrical installations where consumer units, circuit breakers, distribution boards and control panels are used, providing a secure and stable contact point over time.
Made of electrolytic copper of more than 99.95 percent purity, the tube undergoes a process of annealing and electrolytic tinning, which improves its malleability and resistance to mechanical stress. This results in easier and safer crimping, even in high-load applications.
PA6 insulation with easy entry
The pre-insulated polyamide (PA6) jacket performs a dual function:
-
Insulates the connection point securely
-
Facilitates the insertion of the conductor due to the funnel shape
This special shape prevents fraying of the strands, guiding the wires inside the tube and reducing wiring time. In addition, the material is halogen-free, making it ideal for environments where fire safety is a priority.
High thermal performance
The PKD bootlace ferrule is designed to operate over a wide temperature range:
-
Continuous operating temperature: -20 to +120 degrees
-
Maximum threshold for short periods: + 130 degrees
These features also allow it to be used in industrial environments or applications where the thermal load is high.
Applications and advantages
Ideal for:
-
Electrical wiring with flexible copper conductors
-
Secure connections with screw terminals
-
Industrial applications and civil installations
-
Automation systems, electrical panels and machinery
Using it means avoiding unstable connections, improving the quality of electrical contact and increasing the durability of the installation
Technical Specifications Pre-insulated Bootlace ferrule
General Specifications
| Type | Pre-insulated bootlace ferrule |
| Insulating jacket color | Gray |
| Inlet shape | Funnel shaped |
Compatibility and Dimensions
| Compatible cable cross section | 0.75 sq. mm |
| Compatible conductor class | Class 5 |
| Required stripping length | 8 mm |
Materials
| Conductor material | Electrolytic copper |
| Conductor treatment | Tinned |
| Insulating material | Polyamide PA6, halogen-free |
Environmental Conditions
| Operating temperature | -20°C to +120°C (up to 130°C for short periods) |
There are no reviews
Data sheet
- Type: Bootlace Ferrules
- Cross-Section: 0.75mmq
