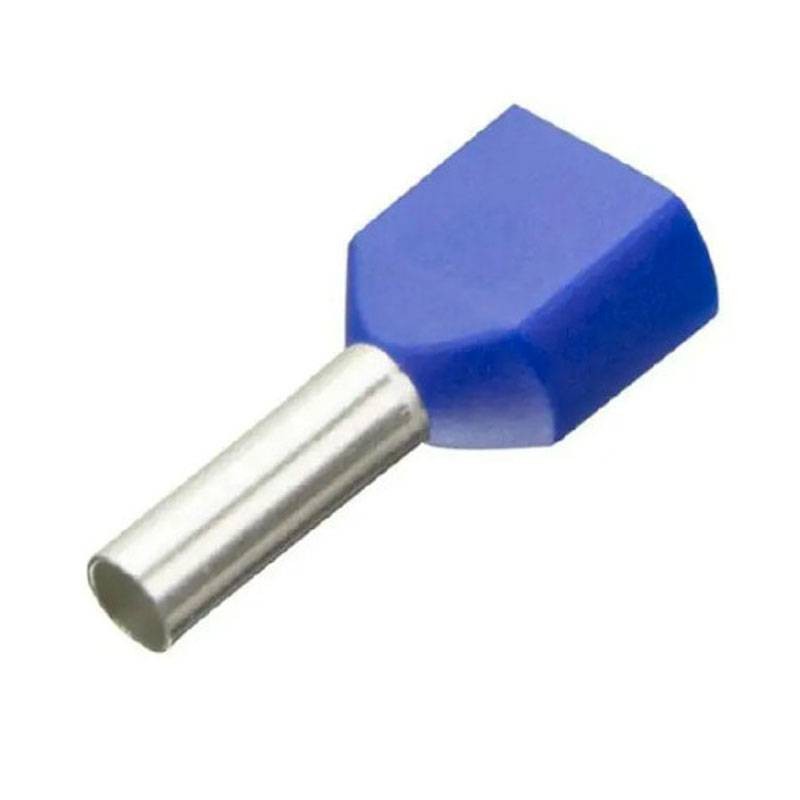

Cembre Double Terminal Tube 2x16mmq 14mm for Copper Conductors 50pcs PKT1614
CEM PKT1614
8016692096629
Cembre double-ended tube is an innovative solution for the simultaneous connection of two conductors within the same receptacle. It offers superior performance and ease of compression through the process of annealing and electrolytic tinning, with the following features:
-
Cable cross-section range: 16 sq. mm
-
Stripping length: 22 mm
-
Number of cables supported: 2
-
Tube material: 99.9% pure electrolytic copper
-
Plating: Tin
-
Insulator: PA6
-
Color: Blue
Selling price is per single piece, sellable by pack of 50 pieces.
€0.27
Items Available: 1100
: 150
Twin PKT Terminal Tube Safe and Reliable Connections
The Cembre Terminal Tube is designed to offer practical and secure connection solutions, allowing two conductors to be compressed within the same receptacle. This product is ideal for use in residential and industrial electrical installations, where an efficient and durable connection is required. Due to its advanced construction and technologies, it offers excellent performance in a wide range of applications.
High Quality of Materials
The terminal tube is made of 99.9% pure electrolytic copper, a material that ensures excellent electrical conductivity and long service life. Electrolytic copper is known for its high purity, which improves the quality of the connection and reduces the possibility of corrosion. Tin plating adds extra protection, further improving the strength and durability of the terminal.
Safe and Reliable Connection
The simultaneous compression function of two conductors within the same terminal is a significant advantage, especially in applications that require a strong and secure connection between multiple wires. The use of the electrolytic tinning process results in easy-to-compress terminals that provide a solid connection that is resistant to mechanical stress, ensuring long life and optimum performance.
Ease of Installation
The PA6 sleeve of the terminal tube is designed to simplify the insertion of conductors. The funnel-shaped internal shaping makes cable insertion easier and faster, while the material's low porosity allows for quick and easy cleaning. In addition, this design prevents the cable's elemental wires from flaking, reducing wiring time and improving connection quality.
Technical Specifications Cembre Double Terminal
General Data
| Tube Material | High-purity (99.9%) electrolytic copper |
| Plating | Tin - improves conductivity and mechanical strength |
| Insulator | PA6 - durable and easy to handle |
| Design | Funnel-shaped inner jacket to facilitate cable insertion and prevent fraying |
| Color | Blue - easily recognizable |
Technical Features.
| Number of cables supported | 2 |
| Compatible cable cross section | 16 mm² |
| Recommended stripping length | 22 mm |
| Operating temperature | -20°C to 130°C (short period) |
| Degree of protection | High mechanical and chemical resistance |
Packaging
| Quantity | 50 pieces |
| Application | Ideal for professional uses and large projects |
There are no reviews
Data sheet
- Type: Bootlace Ferrules
- Cross-Section: 2-16mmmq
