Nice 600 Kg sliding gates kit with flashing photocell control unit RB600BDKCE
NIC RB600BDKCE
8032595795063

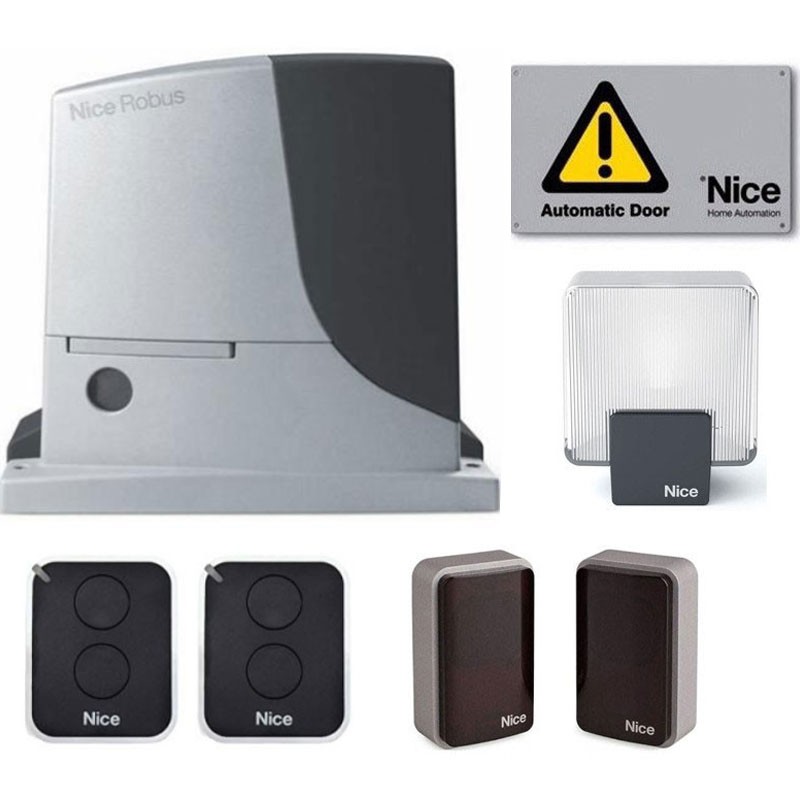

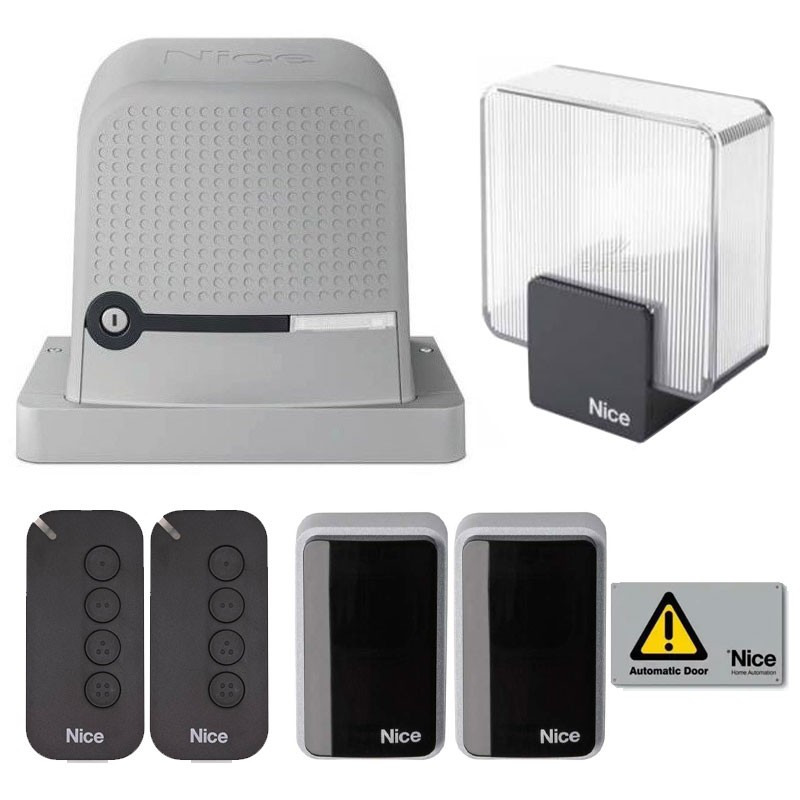

Nice ROBUSKIT sliding gate automation kit up to 600KG, 24VDC power supply, integrated control unit, consisting of:
-
1 Electromechanical gearmotor code RB600 irreversible, for automatic movement of sliding gates for residential use complete with electronic control unit via Nice BlueBUs
-
2 ERA bidirectional remote controls with 2 channels working frequency 433.92 Mhz, rolling code, code ON2E
-
1 pair of outdoor photocells arranged for connection via Nice BlueBUS code EPMB
-
1 LED flashing signaling light with built-in 433.92 MHz antenna code ELDC
-
1 signaling table code TS
€452.86
Items Available: 5
: 2
Frequently bought together
ROBUSKIT Nice full automation kit for sliding gates
The Nice ROBUSKIT sliding gate kit is the ultimate solution for automating sliding gates up to 600 kg in weight and 8 meters in leaf length. The system is powered at 24VDC and includes RB600 motor, RBA3/C electronic control unit, EPMB photocells and ELDC LED flashing light, ensuring safety, efficiency and easy installation.
Features of the kit components

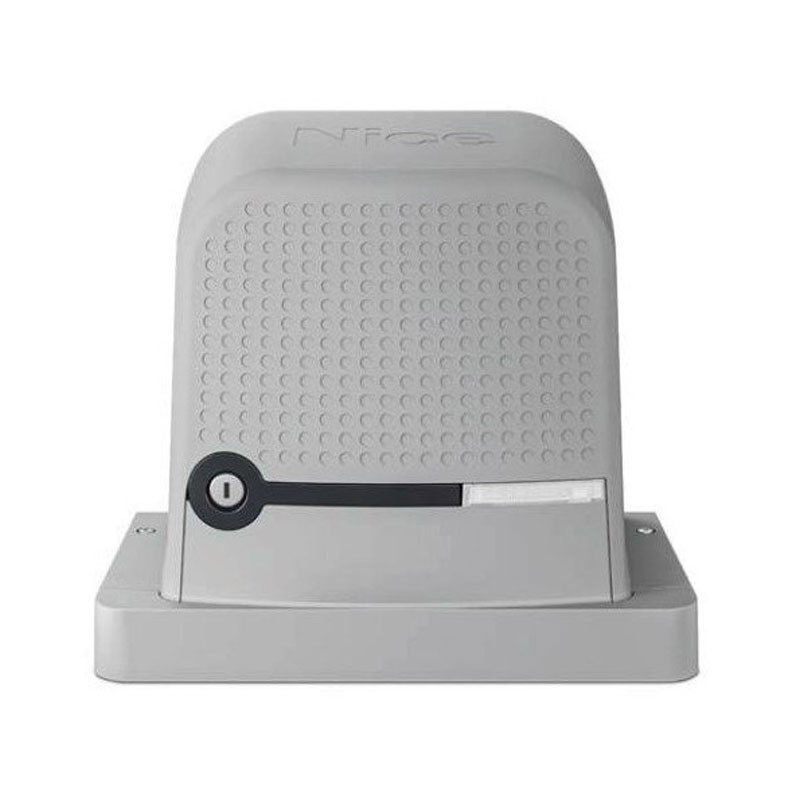

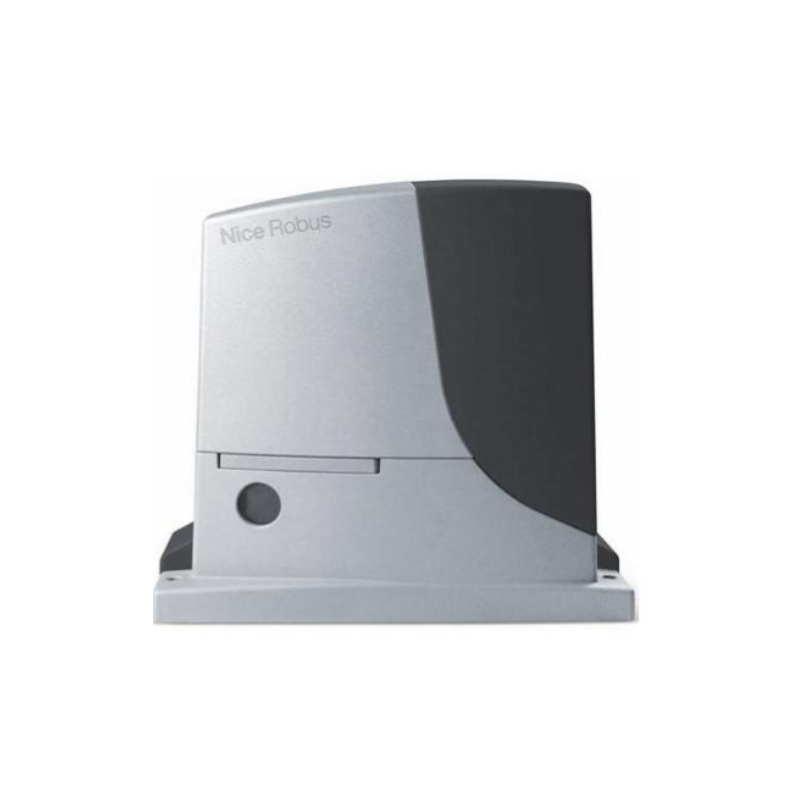

Electromechanical gearmotor for automatic movement of sliding gates
Opening speed of 0.31 m/s, torque up to 18 Nm and power consumption of 515W, with a duty cycle of up to 40 cycles/hour. Made with painted die-cast aluminum base and release, the motor offers high weather resistance (IP44). The gearmotor on bearings ensures quiet and smooth operation, even in the harshest environmental conditions (-20°C to +50°C).
Technical Specifications Electromechanical gearmotor
Power supply and performance
| Parameter | Value |
|---|---|
| Power supply | 230V with card for 24V DC |
| Power consumption | 515 W |
| Current consumption | 2,5 A |
| Speed | 0.31 m/s |
| Maximum torque | 18 Nm |
| Rated torque | 9 Nm |
| Maximum force | 600 N |
| Duty cycle | 40 cycles/hour (4 m) - 20 cycles/hour (8 m) |
Environmental conditions and dimensions
| Parameter | Value |
|---|---|
| Operating temperature | -20 ÷ +50 °C |
| Degree of protection | IP44 |

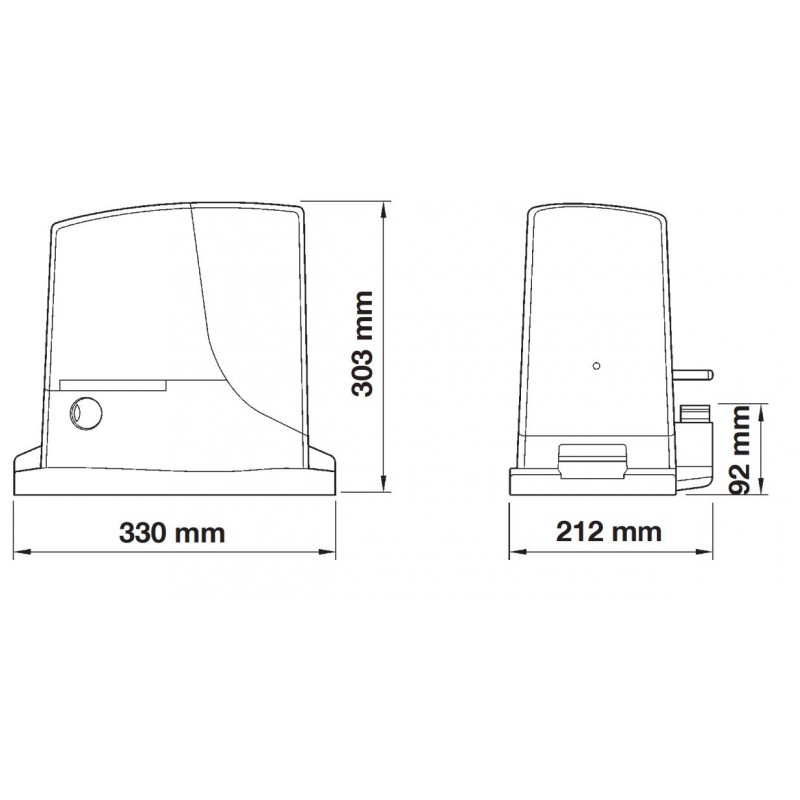

| Dimensions | 330 x 212 x 303 mm |
| Pinion | Z15m4 |

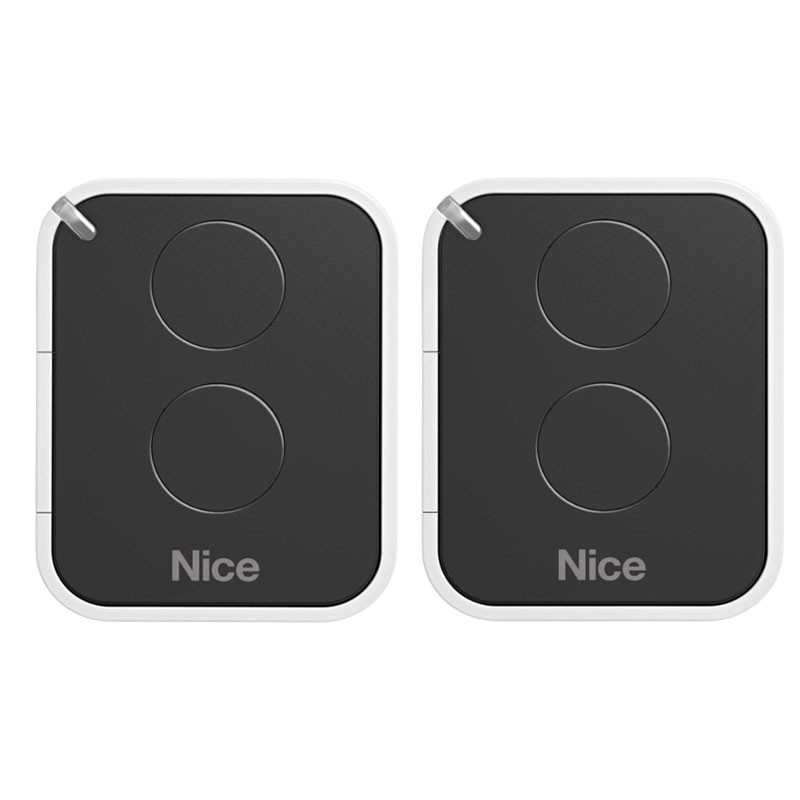

Nice 2-button remote control 433.92 MHz 3V 52 bit black
With its modern and compact design, the Nice remote control fits every need perfectly. Using 52-bit Rolling Code technology, the remote control offers a high level of security, preventing unauthorized access. The range of 50-80 meters in free field allows smooth control even from a distance.
Technical Specifications Bi-directional remote control 2 Keys
| Parameter | Value |
|---|---|
| Frequency | 433.92 MHz |
| Encoding | Rolling Code 52 bits |
| Number of keys | 2 |
| Range | 50-80 m (free field) |
| Programming | Direct duplication |
| Compatibility | Nice systems for gates, awnings, burglar alarms |
| Power supply | 1 x CR2032 3V (included) |
| Operating temperature range | -20 °C TO +55 °C |
| Color | Black |
| Dimensions | 45 x 56 x 11 mm |

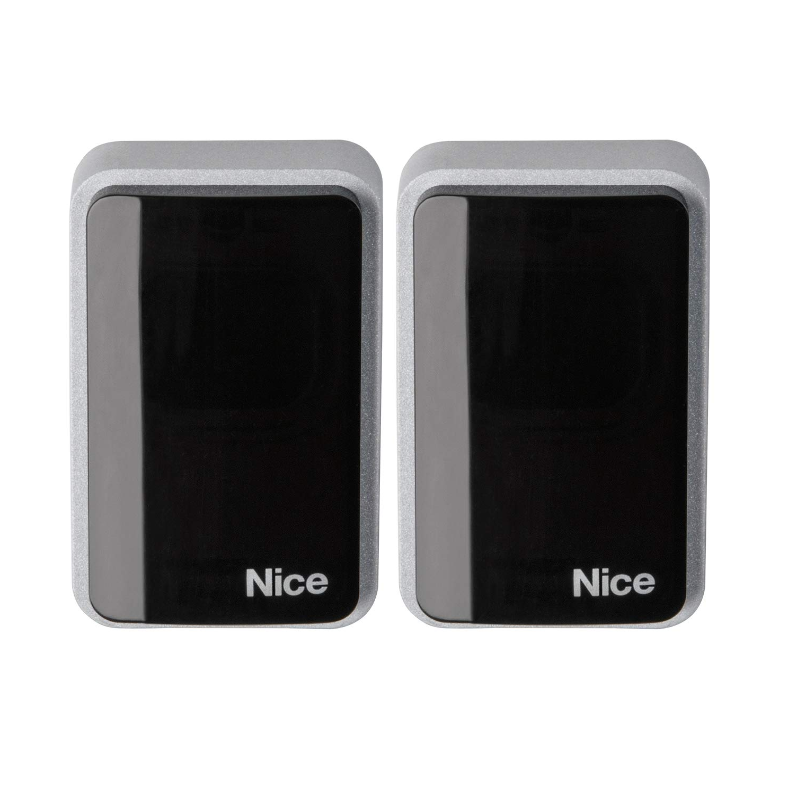

Pair of photocells with BlueBus technology for outdoor installation
Nice EPMB photocells are designed to offer maximum reliability and ease of installation in gate and automatic door automation systems. Nice BlueBus technology allows all devices to be connected with just two wires, greatly simplifying the electrical installation.
Technical Specifications Pair of BlueBus Photocells
| Parameter | Value |
|---|---|
| Technology | BlueBus |
| Type | Pair of photocells (TX + RX) |
| Operating range | Up to 15 meters |
| Allowable offset | ±5° |
| Degree of protection | IP44 |
| Operating temperature | -20 ÷ +50 °C |
| Connection | 2 wires (BlueBus network) |
| Installation | Outdoor |

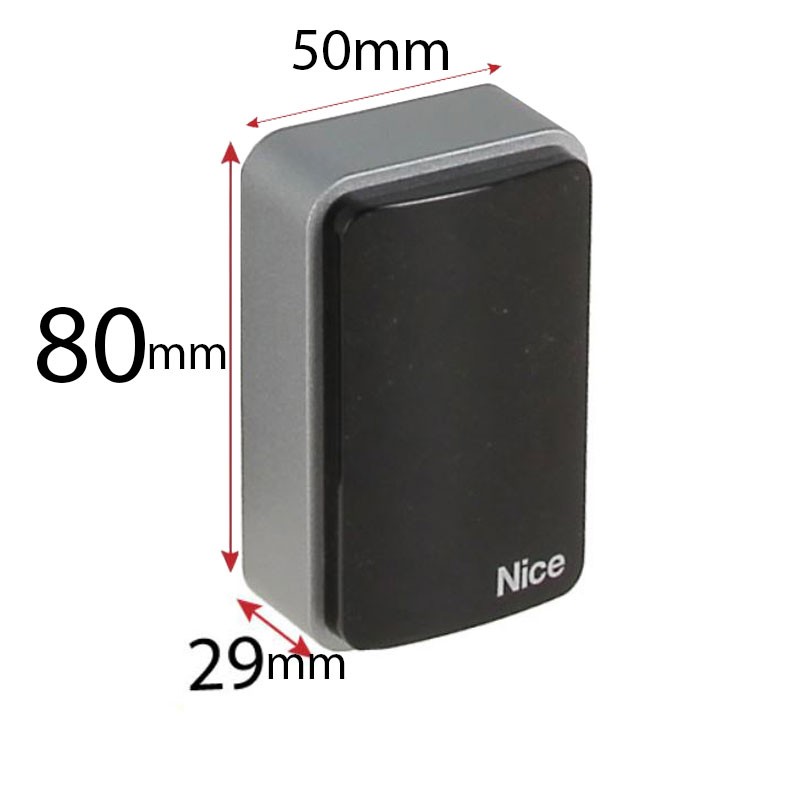

| Dimensions | 50 x 29 x 80 mm |

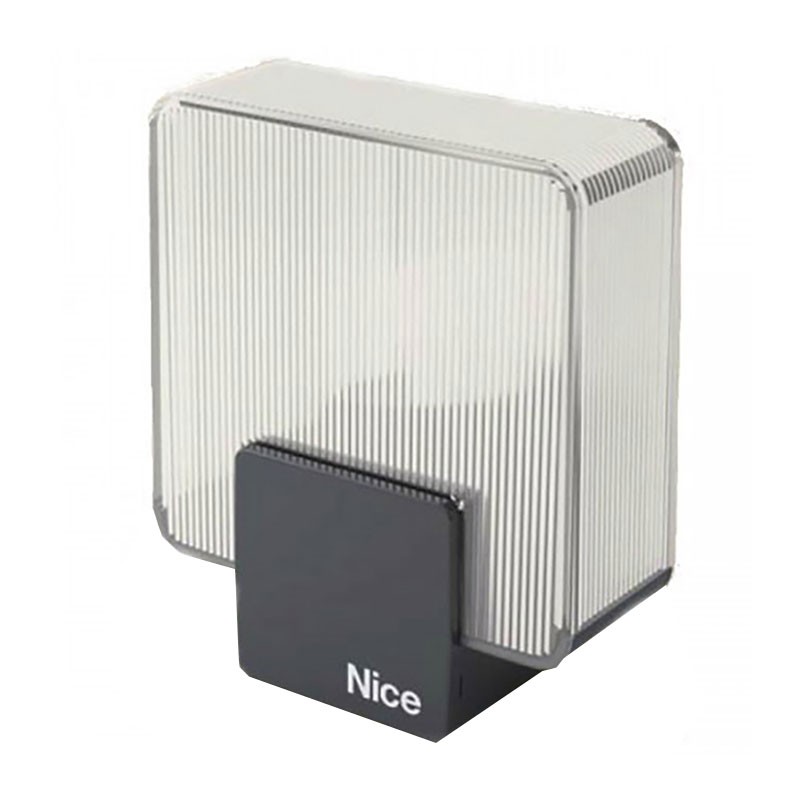

Led flashing light with built-in antenna at 433.92 MHz
Led flashing light designed for automations such as sliding gates, garage doors and road barriers. With its flexible 12 to 36 Vdc power supply, weather resistance and high-efficiency Led light, it is a reliable choice for new and existing installations.
Technical Specifications Led Flashing Light with Integrated Antenna
| Parameter | Value |
|---|---|
| Power supply | 12-36 Vdc |
| Maximum Power Consumption | 230 mA |
| Power | 5,6 W |
| Lamp | White LED |
| Built-in antenna | 433.92 MHz |
| Control panels compatibility | Nice (MC824H, ROBUS, ROAD, SPIN, SOON, etc.) and other brands |
| Degree of protection | IP44 |
| Operating temperature range | -20 °C TO +50 °C |
| Mounting | Universal, impact-resistant housing |
| Dimensions | 132 x 72 x 155 mm |

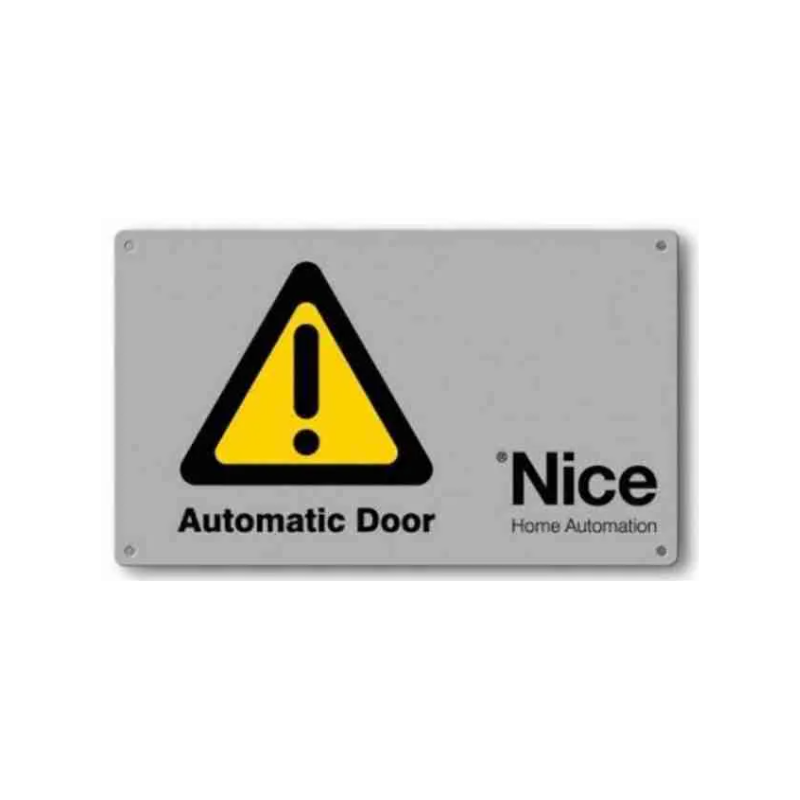

Signaling sign for automatic systems
Signboard is an essential element for any gate, gate and barrier automation system, as it allows the presence of an automated system to be visually signaled, improving safety for users and passersby.
Technical Characteristics Signage Table
| Parameter | Value |
|---|---|
| Material | Rigid aluminum |
| Thickness | 1.6 mm |
| Application | Signaling of automations for gates, doors, barriers |
| Mounting | Fixing on wall, gate or supports |
| Weather resistance | Yes |
| Standards | Complies with standards for automated systems |
Top, très satisfait, rapide, impeccable
What we ordered, we receive and no damage carton boxes during transportation
Solider, leiser Motor kann ich empfehlen. Lieferung wie beschrieben.
Data sheet
- KIT: Kit Gates
- Type: Gate motors
- Model: Sliding gate
