Overview:

• Durable and functional mechanics: the choice of materials, the design of internal components and the use of high-quality lubrication systems ensure robustness and maximum efficiency
• Easy to install: thanks to compatibility with previous Nice models and the presence of practical adjustment systems
• Irreversible, 230 Vac, electromechanical limit switch, control unit with built-in radio receiver
• Efficient and safe: mechanical design
• functional and high-performance materials
• Easy-to-operate and safe release lever
• Easy to program thanks to MyNice Pro app, by connecting the Pro-View to the control panel or through BiDi-WiFi, all programming steps of the control panel become simple and automatic
• Easy to install: thanks to compatibility with previous Nice models and the presence of horizontal and vertical adjustment systems
• Always connected even remotely thanks to the BIDI-WIFI or BIDI-ZWAVE module

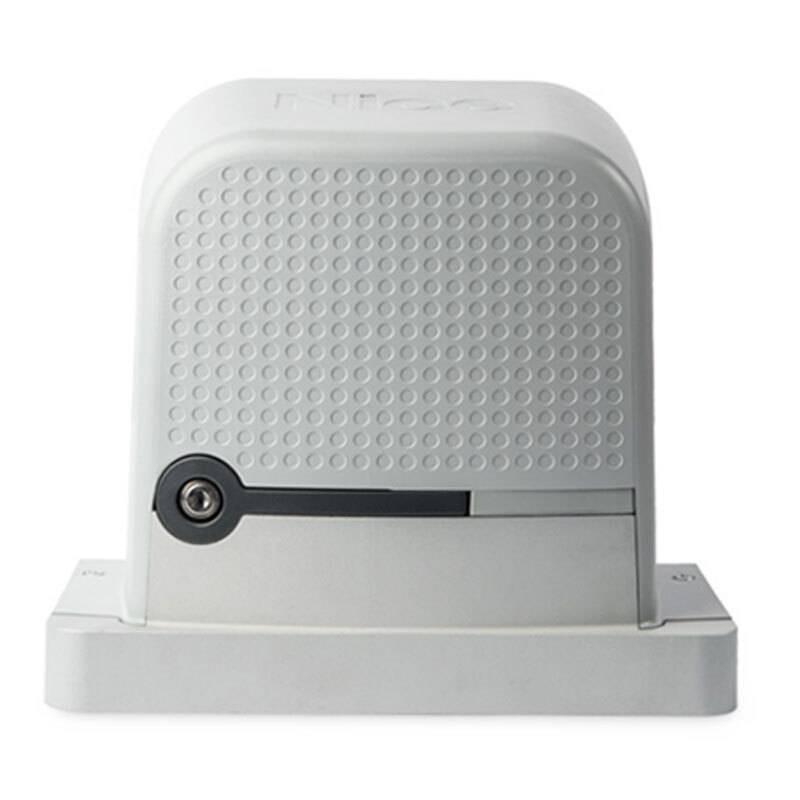

RO600 motor:

• Power supply (Vac 50/60 Hz) 230
• Power (W) 300
• Speed (m/s) 0.18
• Force (N) 600
• Duty cycle (cycles/hour) 20
• Degree of protection (IP) 44
• Operating temp (°C Min/Max) -20 ÷ +55

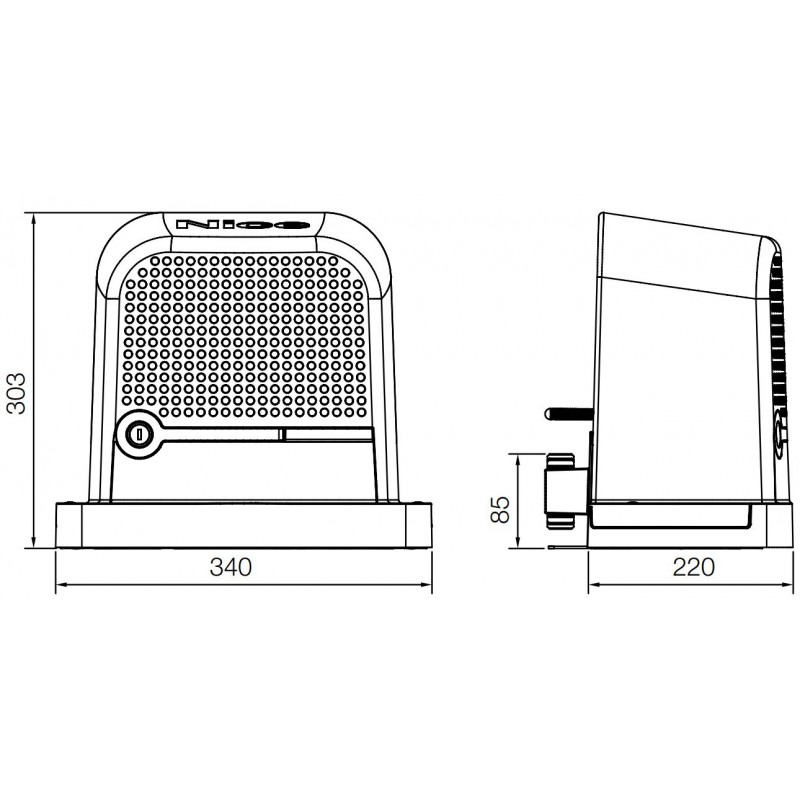

• Dimensions (mm) 340x220x303 h
• Weight (kg) 11

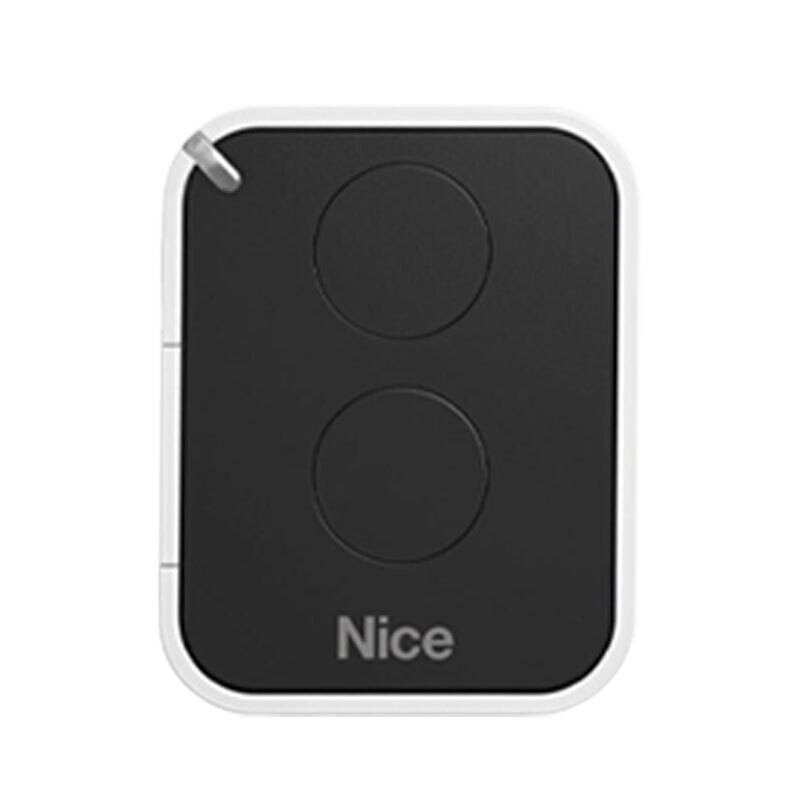

NICE ON2E 2-channel remote control for gates 2Ch 433Mhz:

• 433.92Mhz carrier frequency
• Estimated range 200m (outdoors) 35m (if inside buildings)
• Encoding 0 Code 72 bit; rolling code
• Power supply 3 Vdc; lithium battery type CR2032
• Battery life 2 years (with 10 transmissions per day)
• Degree of protection IP 40 (Use in protected environments)
• Dimensions 44x55x10 h
• Weight 11 grams

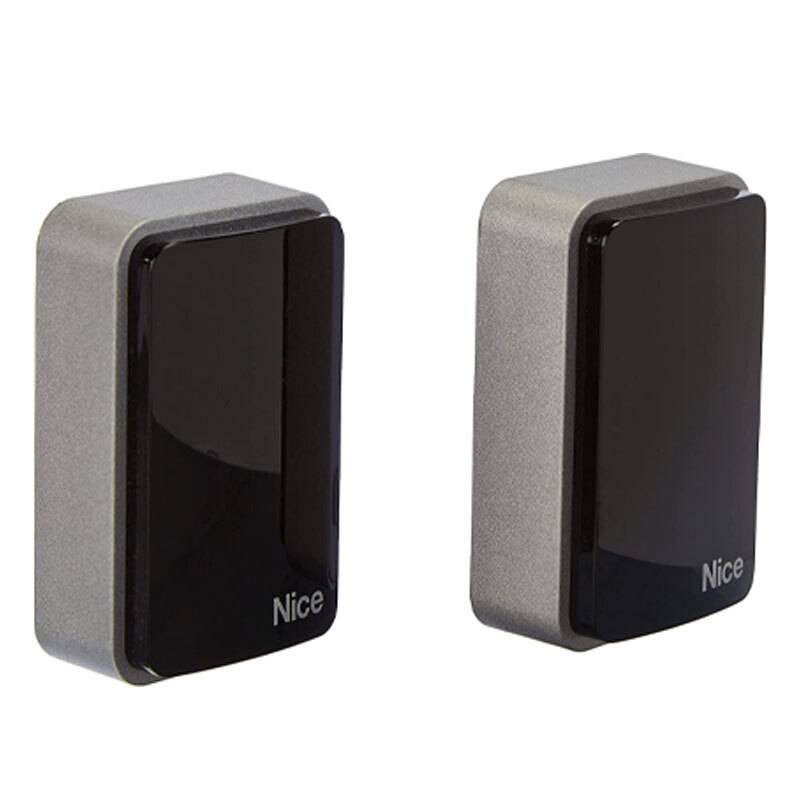

Pair of Nice outdoor EPM photocells reception angle 10 Degrees:

• Estimated range 15 meters (30 with jumper + 10 cut off)
• Power supply without jumper 24 Vac/Vdc limits: 18-35 Vdc, 15-28 Vac with jumper 12 Vac/Vdc limits: 10-18 Vdc, 9-15 Vac
• Power consumption (mA) 25 RX, 30 TX
• Maximum current consumption: about 55 mA (TX + RX)
• Angle of the beam emitted by the TX: 20° (± 25%)
• RX Detection Area Angle: about 20°, without reduction cone; 8°, with reduction cone (± 25%)
• IP44 degree of protection
• Response time: less than 30ms
• Operating temperature -20/+50°C
• Mounting: elements fixed opposite each other, on two vertical walls and parallel to each other or on special column stand
• Relay capacity max 500mA and 48V
• Dimensions (mm) 50 x 80(h) x 28.5 mm
• Weight 143 grams

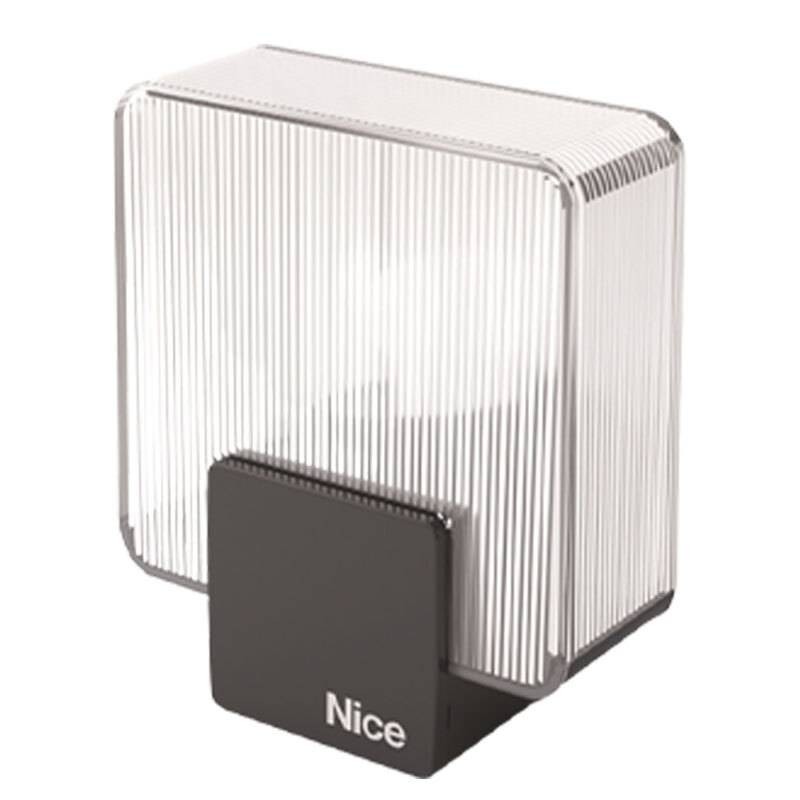

230V LED flashing light with integrated antenna ERA LIGHT series:

• Power supply: 90-240 Vac
• Frequency: 50/60 Hz
• Maximum power consumption: 36 mA
• Power: 5 Watt
• Lamp: white LED
• Internal flasher: yes
• Max operating cycle: 33% (5s ton, 10s toff)
• Degree of protection IP44
• Operating temperature: -20/+50°C
• Dimensions: 132X72X155mm
