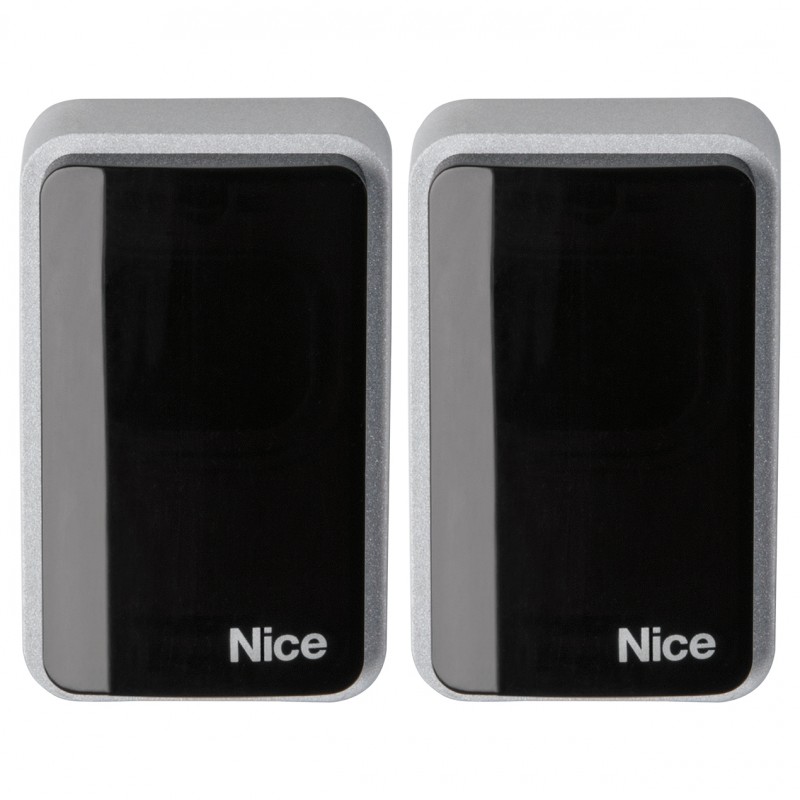

Pair of Nice outdoor photocells EPM
NIC EPM
8032595796138
Pair of Nice outdoor photocells reception angle 10 Degrees, with the following characteristics:
- Estimated range 15 meters (30 with jumper + 10 cut off)
- Power supply without jumper 24 Vac/Vdc limits: 18-35 Vdc, 15-28 Vac with jumper 12 Vac/Vdc limits: 10-18 Vdc, 9-15 Vac
- Power consumption (mA) 25 RX, 30 TX
- Maximum current consumption: about 55 mA (TX + RX)
- Angle of the beam emitted by the TX: 20° (± 25%)
- RX detection area angle: about 20°, without reduction cone; 8°, with reduction cone (± 25%)
- IP44 degree of protection
- Response time: less than 30ms
- Operating temperature -20/+50°C
- Mounting: elements fixed opposite each other, on two vertical walls and parallel to each other or on special column stand
- Relay capacity max 500mA and 48V
- Dimensions (mm) 50 x 80(h) x 28.5 mm
- Weight 143 grams
Pair of Nice outdoor photocells EPM
€41.02
€41.02
Tax included
Tax included
Pay in installments with Klarna
Items Available: 19
Advantages:
- Safe: type D device according to EN12453, which enables the detection of obstacles present on the optical axis between the transmitter (TX) and receiver (RX)
- Using the phototest function, it is possible to achieve category 2 failure safety according to EN 954-1
- State-of-the-art technologies: anti-glare circuit that eliminates possible interference from sunlight
- EPM models, allows 2 levels of range
- Durable, also in burglar-resistant version: weatherproof ABS shell, also available with metal shell
Data sheet
- Type:
- Photocells
- Model:
- External
- Installation:
- External
