Faac XP20W D wall-mounted adjustable photocells 785104
FAA 785104
8055195012392

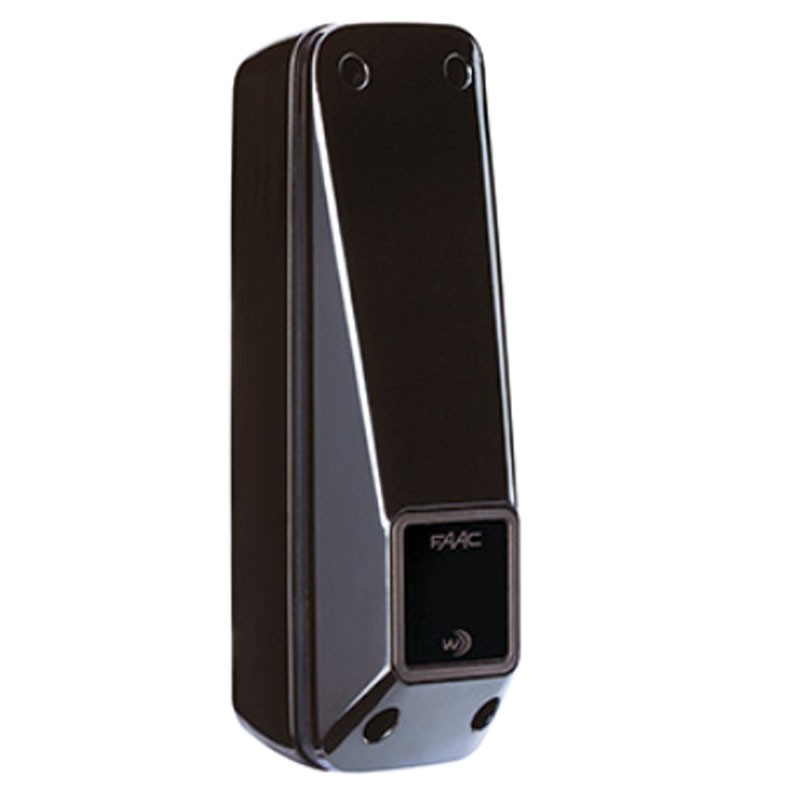

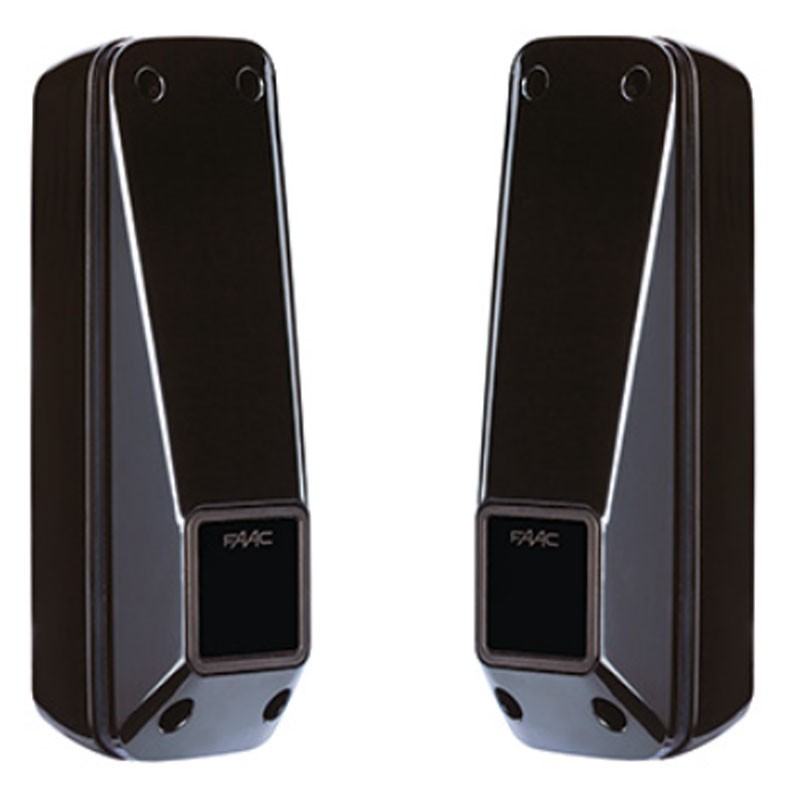

Faac XP20W D adjustable photocells:
- Wall mounting
- Maximum photocell distance 20 meters
- Dimensions (WxDxH) 41.5 x 42.5 x 130 mm
- Degree of protection: IP54
Mounting accessories (to be purchased separately):
- CR2 3V lithium battery for XP 20W D photocells code 105128
- Bollard (max. height 628 mm) code 401039
- Double high post code 401043
- Column post code 401080
- Low H500 post code 401070
- High H1000 post code 401075
- Double post H1000 code 401080
- Foundation plate for pillar 737637
€71.12
Items Available: 30
: 18
Frequently bought together
System with traditional 12/24V power supply of the receiver and traditional or battery power supply of the transmitter. Avoids laying of cable to transmitter (battery) and has selectable channels allowing installation of up to 4 pairs of photocells and protection from interference produced by external light sources (e.g., led headlights of motor vehicles.
Features:
- Supply voltage: Rx:12 ÷ 24V~ 12 ÷ 24 V - Tx: 12 ÷ 24V~ 12 ÷ 24 V or with battery (3 VcR2 not included)
- Self-alignment angle ± 7° (20 m) ± 13.5° (5 m)
- Horizontal orientation angle -90° +90°
- Current consumption Rx (30 mA) + Tx (40 mA on battery or 5 mA at 24V
- Ambient operating temperature -20°C ÷ +55°C
There are no reviews
Data sheet
- Type: Photocells
- Model: External
- Installation: Wall-mounted
