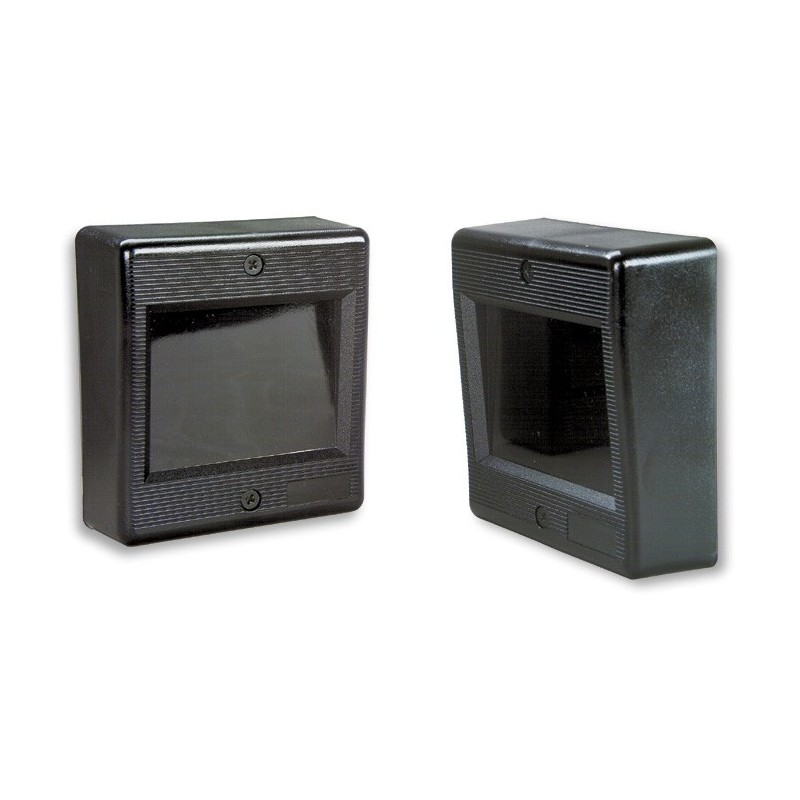

Pair of Hiltron digital infrared photocells FX55D
C1A FX55D
8056450412193
Pair of Hiltron digital infrared photocells.
€31.15
Items Available: 42
: 16
The FX55D photocell creates a single infrared beam barrier with diversified digital coding on two possible channels (channel A or channel B). The interruption of the infrared beam activates a double relay device that opens a C/NC contact and closes C/NA.
It can be used indifferently as an accessory device for gate or sliding door automation systems or as an anti-theft sensor to intercept the presence of unauthorized persons and generate the relative alarm.
Characteristics:
- Coded two-channel digital operation (selectable via Jumper)
- Brightness limiting filter
- Dual safety relay LED alignment TX / RX
- Rated supply voltage 12V / 24V
- Absorption: RX (12V,5cc) 24mA
- Current consumption: TX (12,5Vcc) 44mA
- Current consumption: RX (24Vac) 70mA
- Current consumption: TX (24Vac) 95mA
- Emission band 870nm C/NA/NC 24V 1A (resistive, not inductive)
- Operating temperature -20 ° C +55 ° C
- Maximum operating distance: 8 meters (outdoor); 16 meters (indoor)
- Contacts: C/NA/NC 24V 1A (resistive, non-inductive)
- Polycarbonate material
- Dimensions: width 73 mm - height 82 mm - depth 30 mm
- Weight 0.260 kg
Cellule fotoelettriche introvabili nei negozi fisici, protette in un pacco ottimamente imballato, identiche alle originali.
La qualità della costruzione e l'affidabilità
il prodotto l'ho installato , ed è ok.
Conforme a quanto richiesto. Spedizione veloce
Data sheet
- Type: Photocells
- Model: External
- Installation: External
