Gibidi Kit Sliding Gate SL544 24V K544/BFSLT
GIB K544/BFSLT

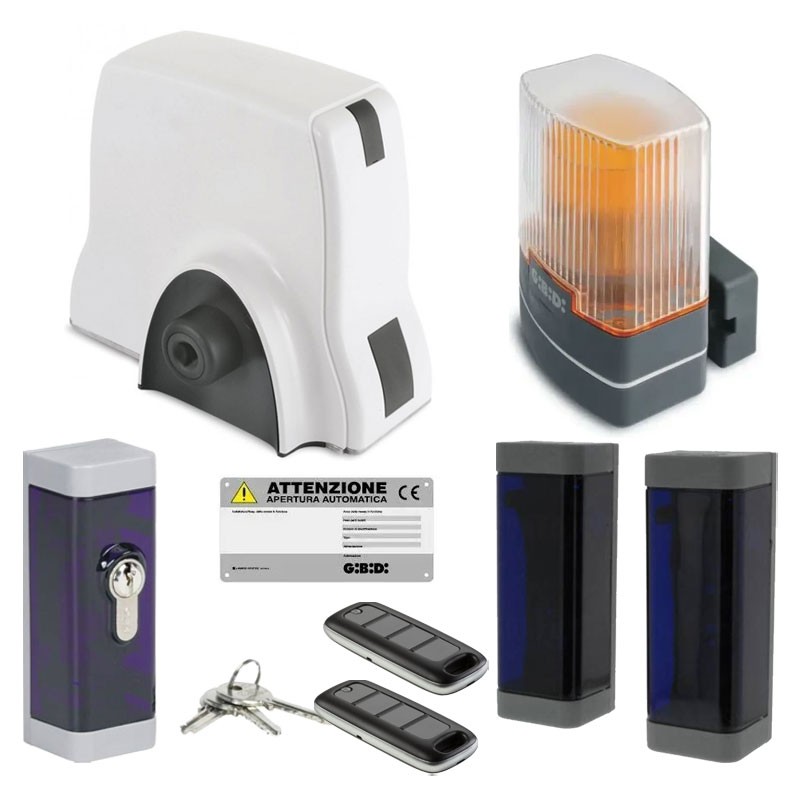

Gibidi SL544 irreversible electromechanical sliding gate kit for small and medium-sized sliding gates (up to 500 kg). Suitable for residential use, Kit consists of:

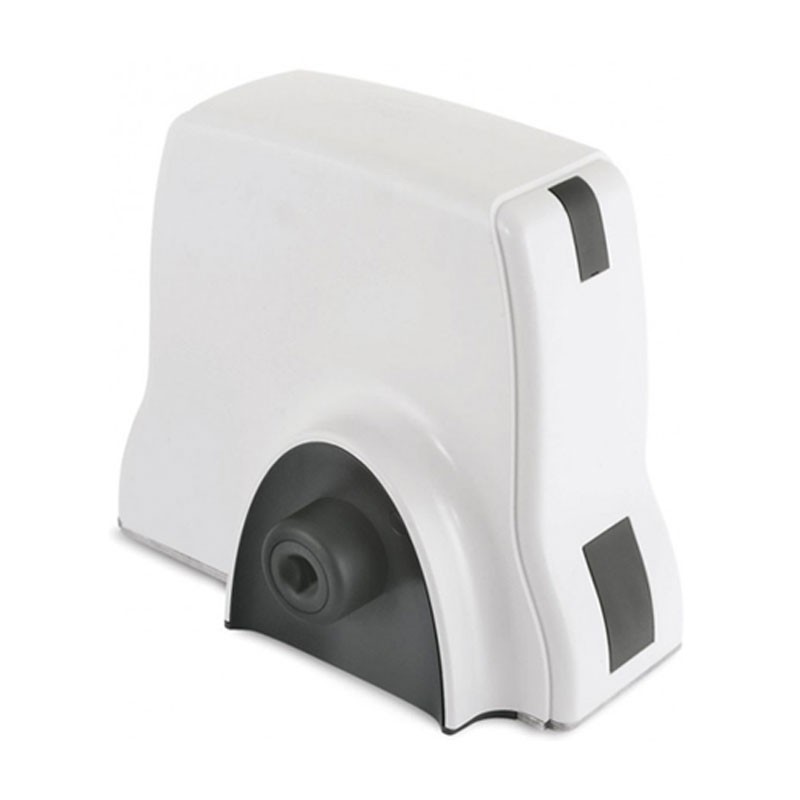

- 1 SL544 gearmotor with SE24 equipment

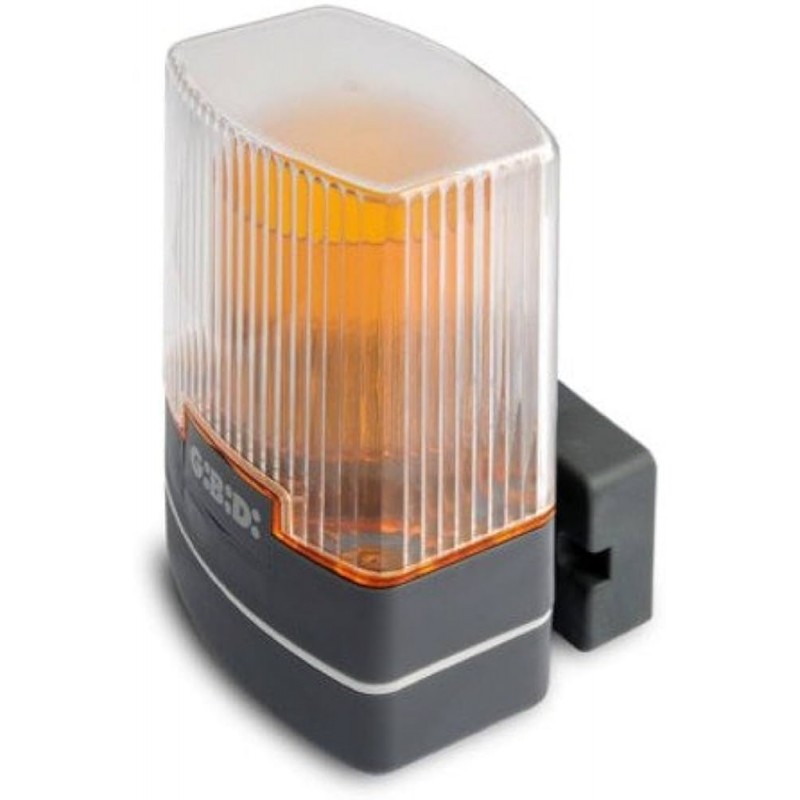

- 1 Complete DSL70724 24V flashing light.
- 1 Built-in radio receiver card

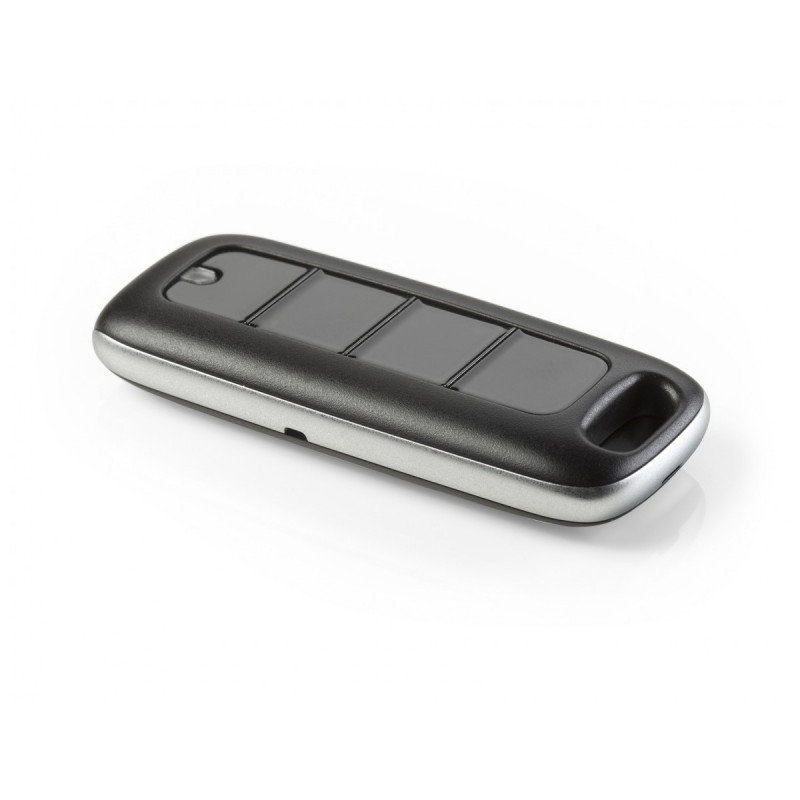

- 2 MAKO Rolling Code radio controls, 4 channels, frequency 433 MHz

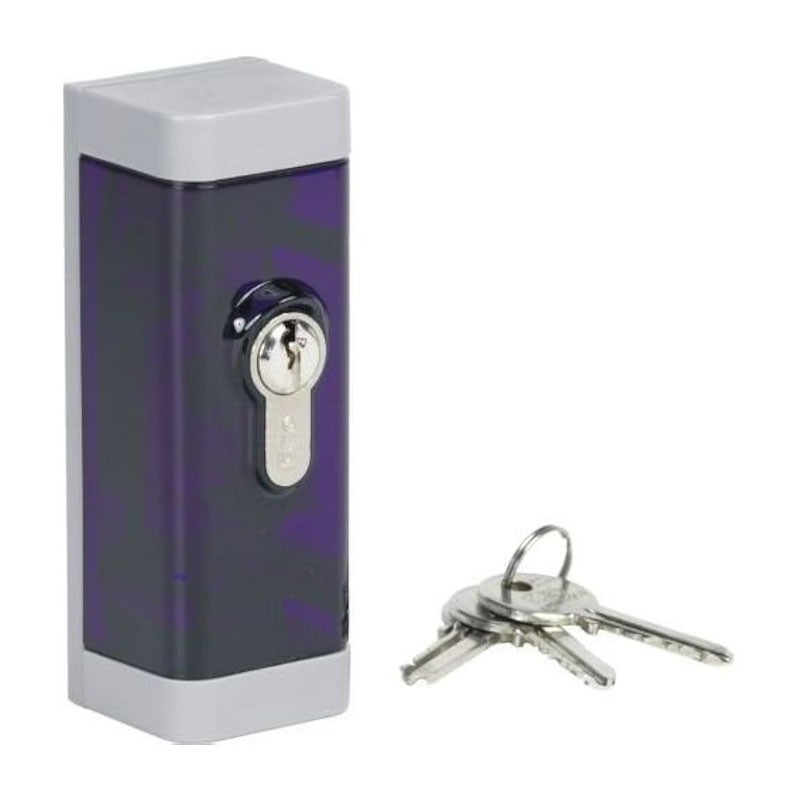

- 1 DCS100 key switch for wall and column mounting DCA series + 3 keys AU01940

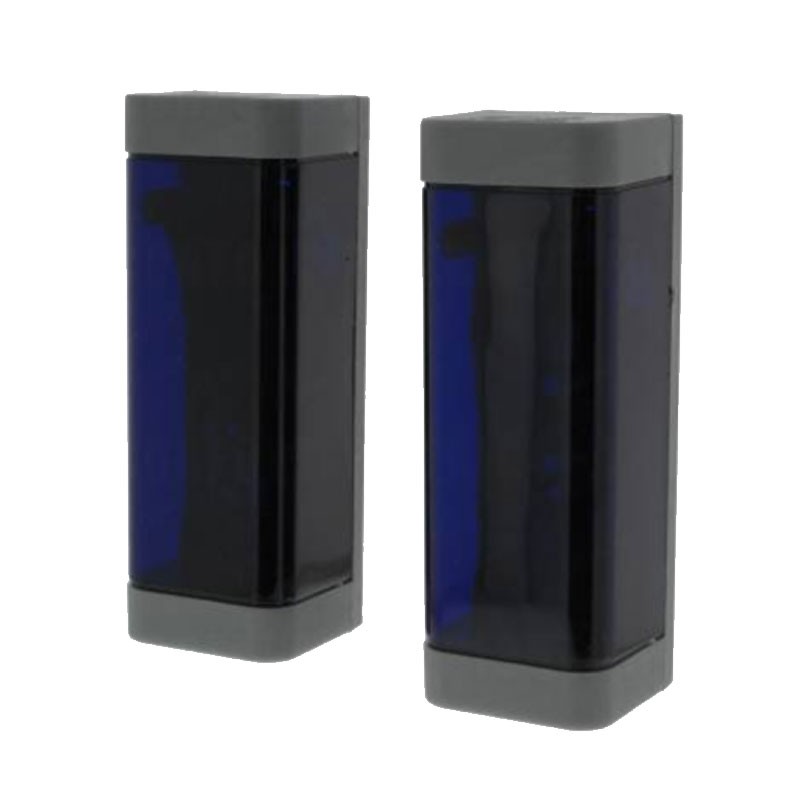

- 1 Pair of DCF180 synchronized photocells, 180° rotation, maximum range 30 m AU02250
- 1 Automatic gate plate AJ75800
Foundation plate AJ92190 and Rack AJ91112/3 to be purchased separately.
Gibidi Kit Sliding Gate SL544 24V K544/BFSLT
€381.69
€381.69
Tax included
Tax included
Pay in installments with Klarna
Items Available: 6
Frequently bought together
Advantages:
- Easy to install: Thanks to Encoder technology, new graphic display that guides you step by step and self-learning. Possibility of adjustments on the horizontal and vertical axis
- Quiet and robust: Thanks to steel and bronze-aluminum gears that also ensure reliability over time
- Fast and safe: Fast movement up to 22cm/sec and 24 Vdc technology, the highest level of safety as required by EN 12453
- Technological: Built-in SE24 control unit with automatic gate parameter learning function. RTC (real time clock) with battery to manage timers and event logs
- Built-in control unit
- Steel gears
- Painted aluminum body
- Backlit graphic display
SL544 motor features:
- Intensive use
- 90% utilization frequency
- Motor power supply 24 Vdc
- Power consumption 100W
- Degree of protection IP55
- Speed 220 mm/s (13 m/min) - Z=16 M4
- Max. torque 12 Nm
- Rated torque 6 Nm
- Electronic torque adjustment
- Speed adjustment SI
- Max. leaf weight 500 kg
- Operating temperature -20°C +60°C
- Max. leaf length 6 m
- Lubrication Grease GBD WH-01
- Operator weight 8 kg
