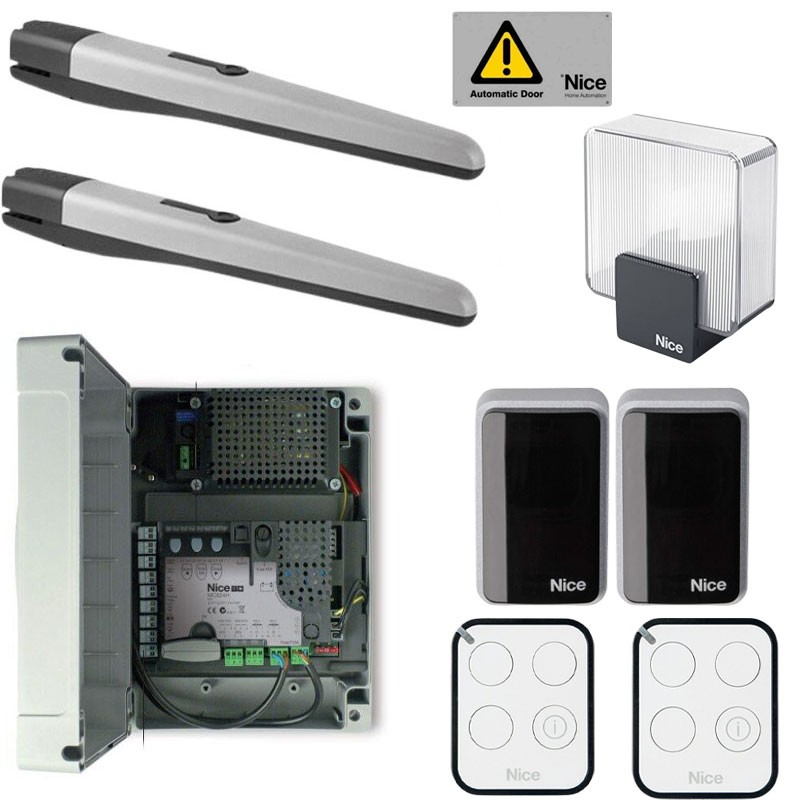

Kit for automation of swing gates with leaves up to 3 meters, 24 Vdc power supply, outdoor mounting ideal for residential use. Electromechanical gearmotor with magnetic encoder. New kit prepared for Solemyo solar power system and Opera system for remote automation management, programming and diagnostics thanks to the new Moonclever control unit (MC824H) equipped with Nice BlueBUS technology. Reliability and durability, thanks to the body composed of two strong aluminum shells with polyester paint; more resistant to weathering. Internal moving components made entirely of steel, light alloys and technopolymers. Quietness: patented bronze scroll arrangement of internal parts. Large and convenient connection compartment: quick and easy access from above to internal parts located in the upper engine compartment.





Technical specifications of individual kit components:

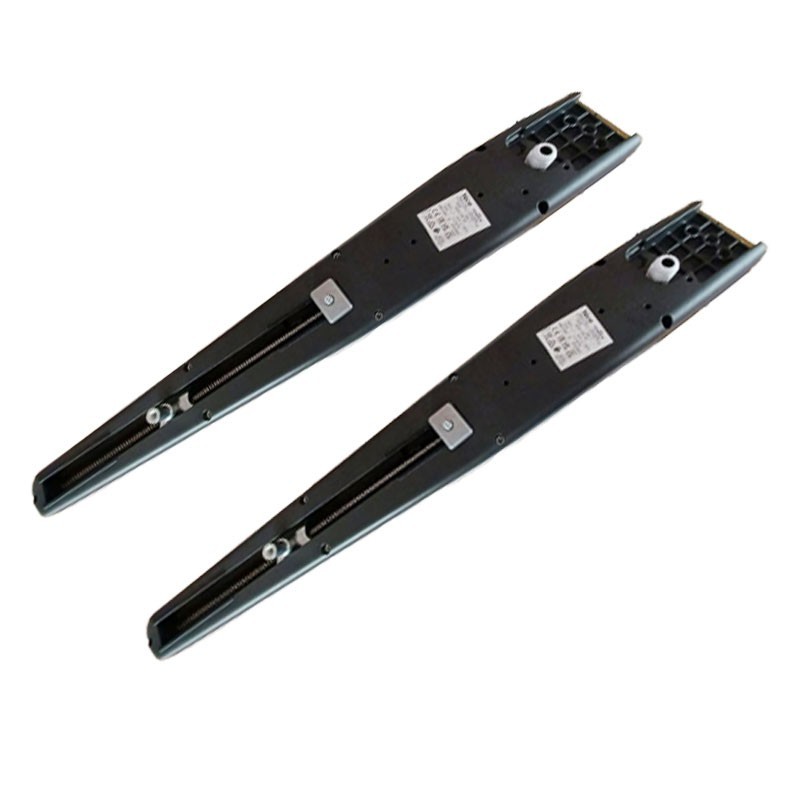

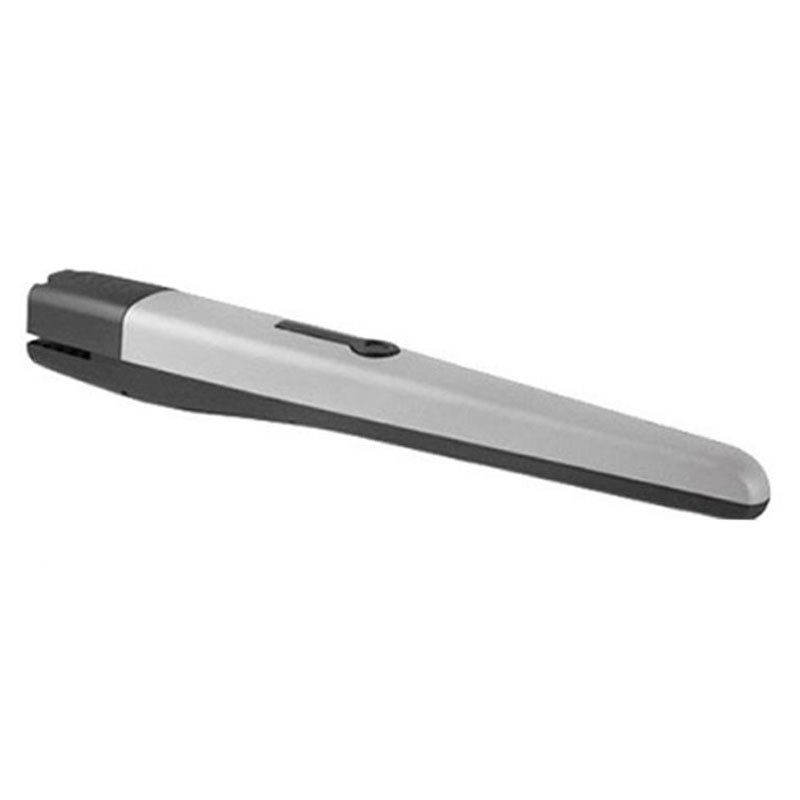

2 Toona Series 4 irreversible electromechanical gearmotors for swing gates or swing gates (code TO4024):

• Power supply: 24Vdc
• Maximum absorption: 5 amps
• Rated absorption: 2 amps
• Maximum power consumption: 120W
• Rated power consumption 48W
• Built-in capacitor: no
• Degree of protection: IP44
• Stroke 385 mm
• No-load speed 0.016 m/s
• No-load speed 0.016 m/s
• Maximum force 1800 N
• Nominal force 600 N
• Operating temperature -20 °C to +50 °C
• Thermoprotection: NO
• Cycles/h at nominal force: 95
• Insulation class F
• Weight: about 6 kilograms
• Dimensions (mm) 820 x 115 x 105 h

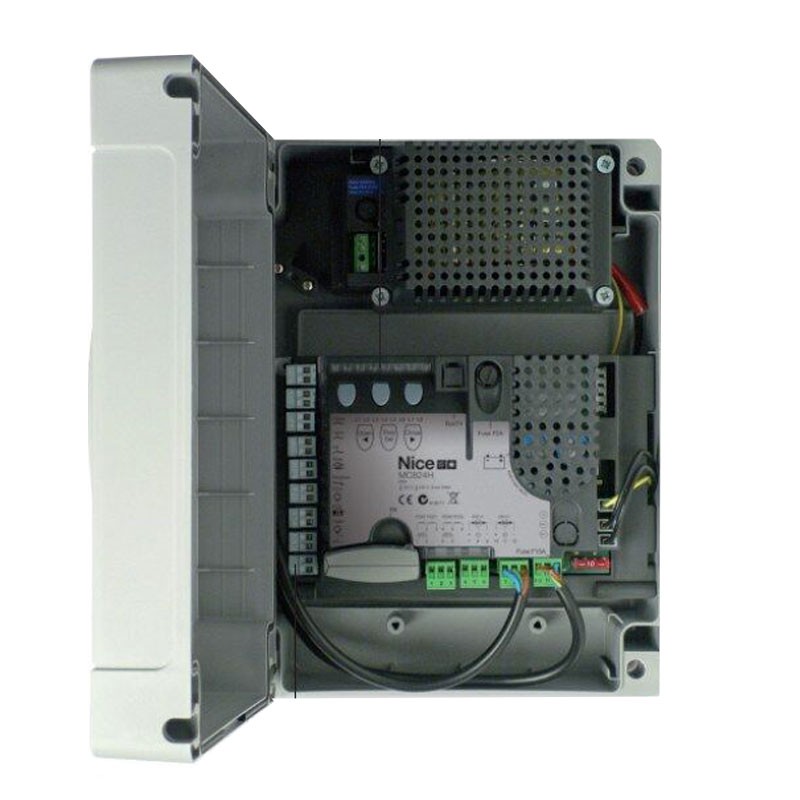

1 Electronic control unit MC824H: It is an electronic control unit for automating swing gates. It is capable of controlling electromechanical actuators. It has a system that verifies the strain on the motors connected to it (amperometric). This system makes it possible to automatically detect limit switches, store the working time of each individual motor, and recognize any obstacles during normal movement. These features greatly simplify the installation as no adjustment of working time and leaf displacement is required. Pre-programmed on normally required functions and integrates a radio receiver for remote controls.



• Mains power supply: 230 Va ±10%
• Frequency: 50/60 Hz
• Rated mains power consumption 200 W
• Power consumption of the battery connector of the control unit with "standby-all" operation: less than 100 mW
• Operating temperature -20°C ... +55°C
• Use in particularly acidic or saline or potentially Explosive atmosphere: NO
• Degree of protection IP54 with intact enclosure
• Dimensions (mm) 310 x 232 x H 122
• Weight (kg) 4.1

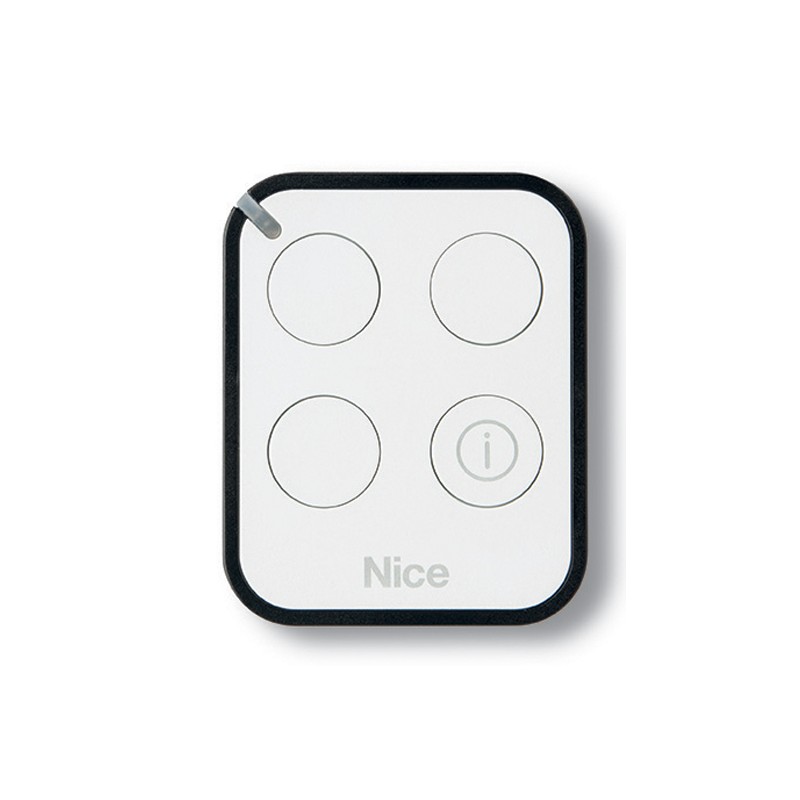

2 3-channel 433.92 MHz transmitters (code ON3EBD), required for control of automations (gates, garage doors, roadside lifts and similar). Working frequency 433.92 MHz bidirectional. Power supply : 3 Vdc; lithium battery type CR2032. Equipped with 4 keys, 3 keys for sending commands and 1 function key for automation status request or coding change.

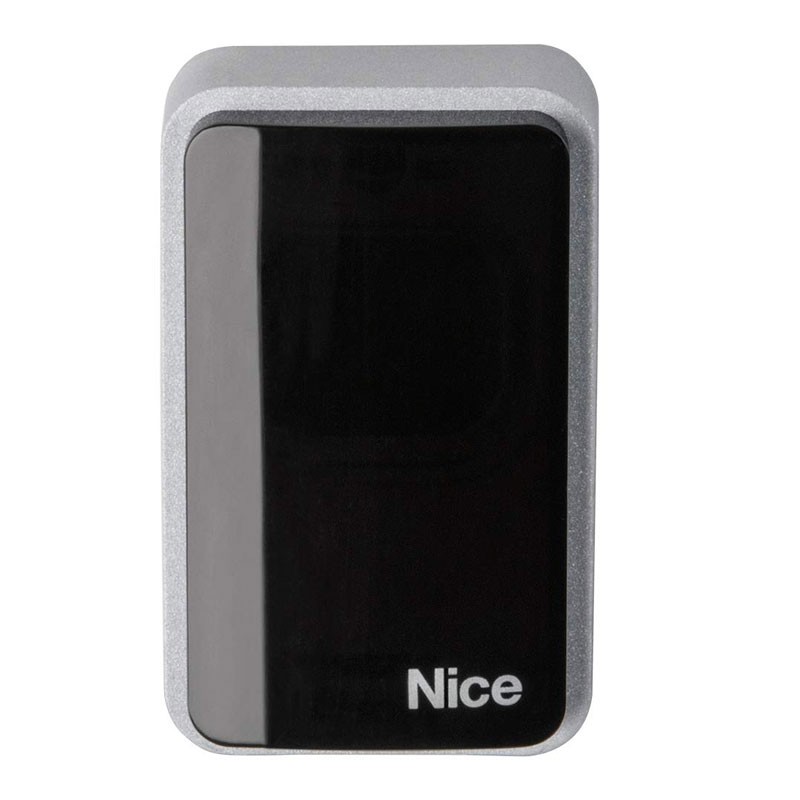

1 Pair of photocells (code EPMB): This device is a photocell, which is a type D presence detector according to EN 12453. Intended for automation systems for doors, gates, garage doors and the like. The device is equipped with "BlueBus" technology, which enables connection and communication between the photocells and the control unit (or interface), with two electrical conductors. The connection is made "in parallel"; each pair of photocells is assigned a specific function in the automation, through the insertion of some jumpers.



• Technology adopted: direct optical interpolation between TX and RX, with modulated infrared beam
• Range: useful range 15 meters; maximum range 30 meters. The range can be reduced by 50% in the presence of atmospheric phenomena (fog, rain, dust, etc.)
• Degree of protection: IP44
• Use in acidic, saline or potentially explosive atmosphere: no
• Operating temperature: -20 to +50°C
• Mounting: elements fixed opposite each other, on two vertical walls and parallel to each other or on special column stand

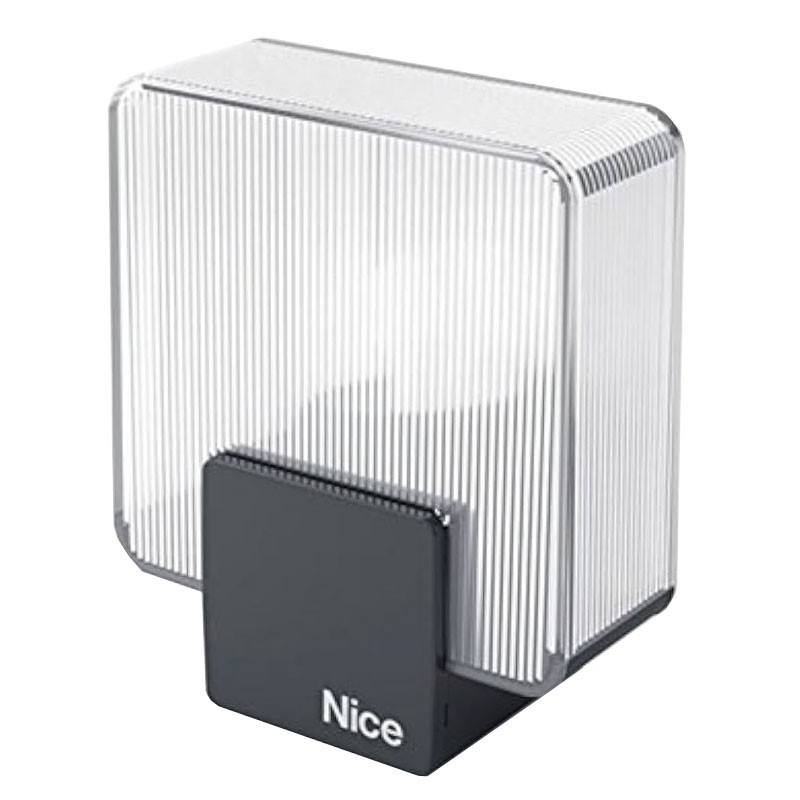

1 LED flashing warning light with integrated antenna (code ELDC): Particularly shock-resistant housing, suitable for fixing in different positions. Consumes about 80% less power than conventional flashing lights, built-in 433.92 MHz antenna.



• Power supply: 12/36 Vdc
• Maximum power consumption: 230 mA
• Power: 5.6 watts
• Lamp: white LED
• Internal flasher: yes
• Max operating cycle: 50% (5s ton, 5s toff)
• Degree of protection IP44
• Operating temperature: -20/+50°C
• Dimensions: 132X72X155
