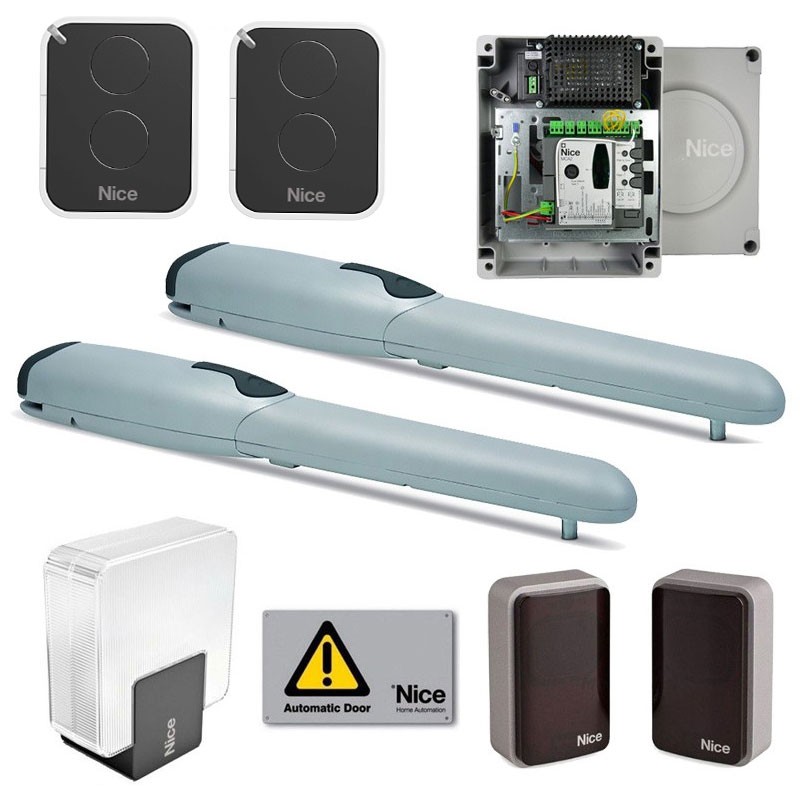

The kit consists of:

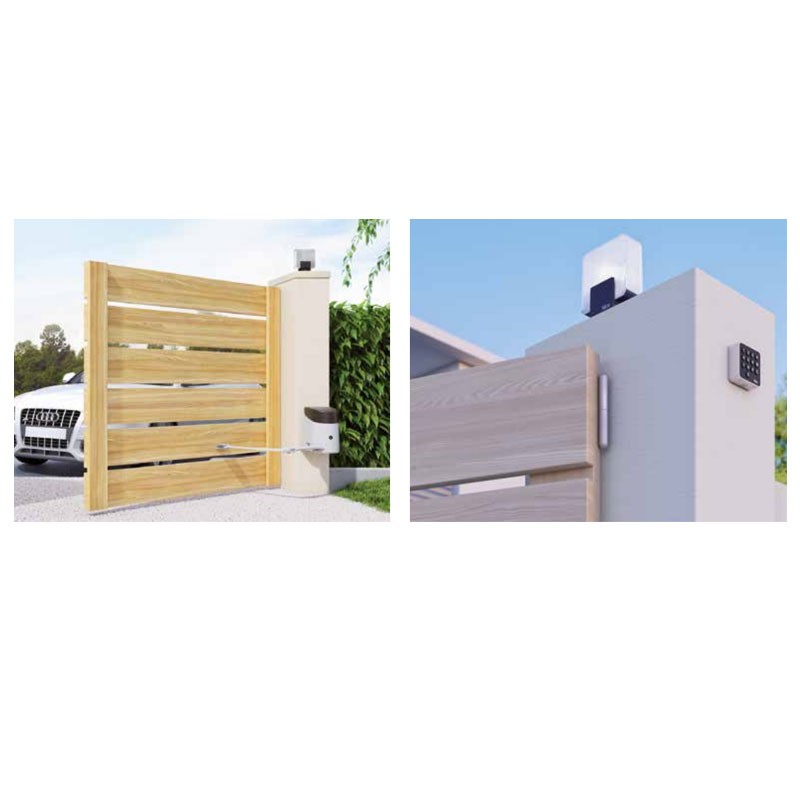

• 2 pieces code WG4024 24 Vdc electromechanical gearmotor for external mounting with NICE key release and mechanical limit switch on opening

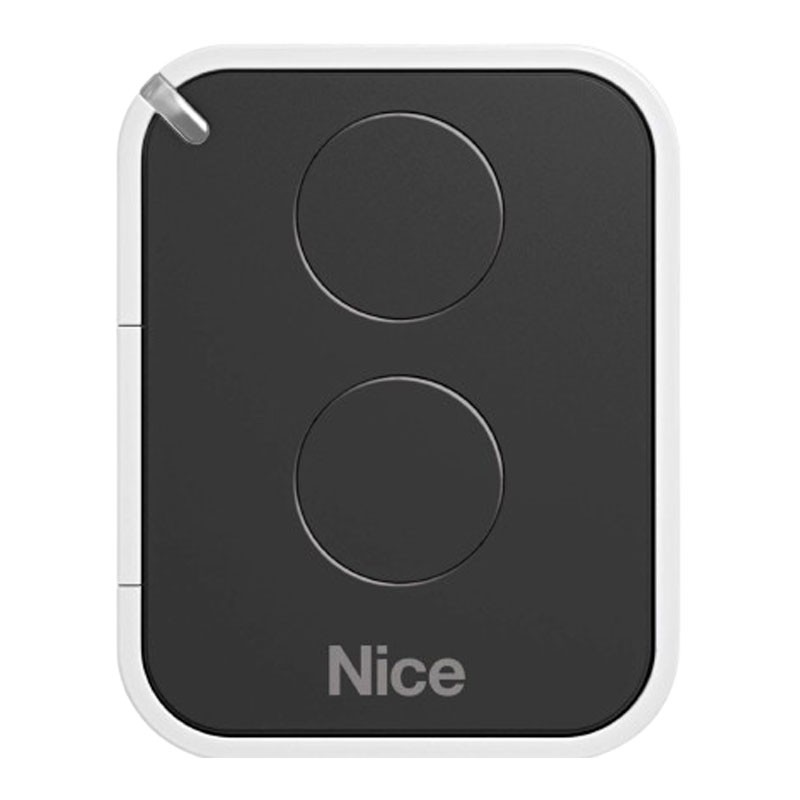

• 2 pieces code ON2E 2-button transmitter black color, frequency 433, 92Mhz
• 1 piece electronic control unit code MC424L with built-in radio receiver and OXIBD two-way plug-in radio receiver included
• 1 pair of outdoor photocells code EPM
• 1 piece LED flashing light with integrated antenna ERA LIGHT series code ELAC
• 1 piece TS signage table

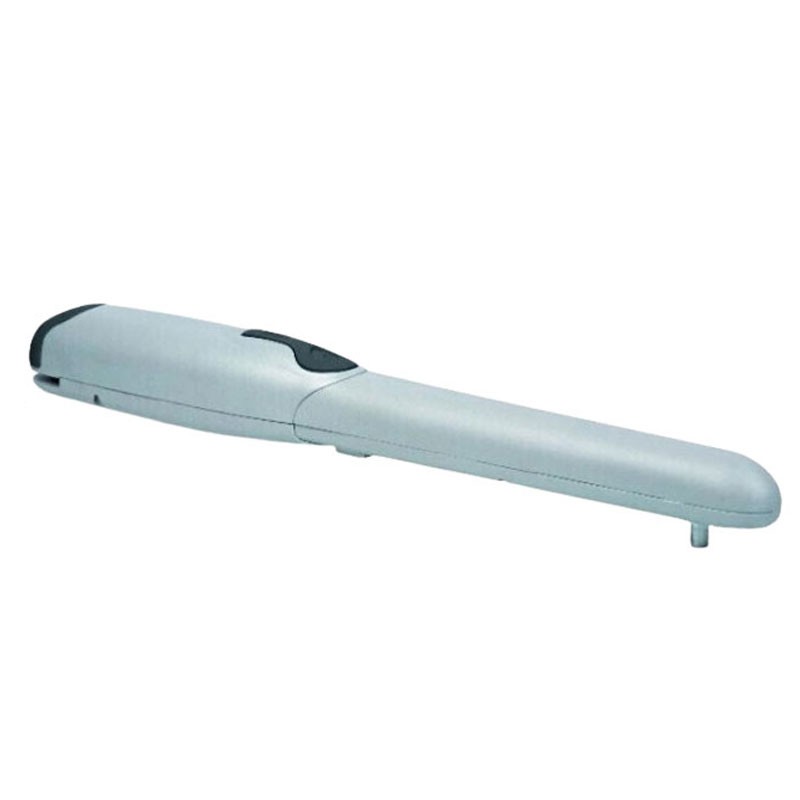

Features electromechanical gearmotor WG4024:

• Type of use: for swing gates or swing gates
• Power supply 24V
• Maximum absorption 3.5A
• Rated absorption 2 A
• Maximum power consumption 85 W
• Rated power consumption 50W
• Degree of protection IP44
• Stroke 320 mm
• No-load speed 0.018 m/s
• Maximum thrust 1500 N
• Rated thrust 500 N
• Operating temperature -20 °C to +50 °C
• Cycles h at rated torque 40
• Estimated durability between about 80,000 and 250,000 maneuver cycles
• Insulation class A
• Dimensions (mm) 770 x 98 x 95 h
• Weight (kg) 6

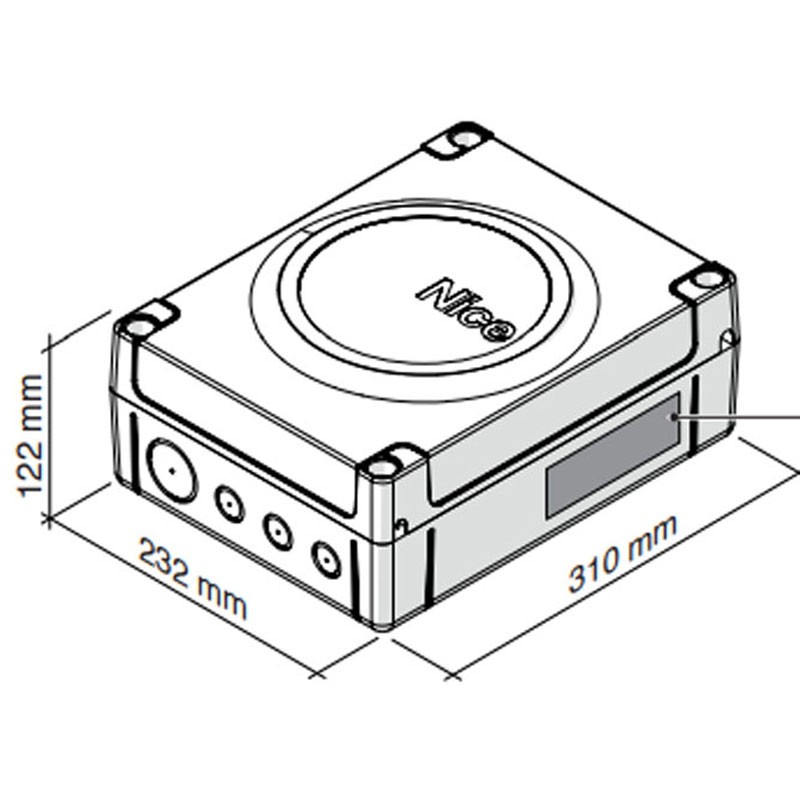

1 piece MC424L electronic control unit with built-in radio receiver and OXIBD two-way plug-in radio receiver included: It is intended for the control of Wingo, Too, S-fab 24 V electromechanical actuators for the automation of gates or swinging doors. It has a system that verifies the effort of the motors connected to it (amperometric), this system makes it possible to automatically detect limit switches, store the working time of each individual motor, and recognize any obstacles during normal movement. This feature makes installation easier since no adjustment of the working time and phase shifting of the leaves is needed. The control unit is pre-programmed on the functions normally required and integrates a radio receiver for remote controls. It can be programmed for two types of ALT input: - Alt type NC for connection to NC type contacts. - Alt with constant resistance. Allows devices with a constant resistance output of 8.2 KΩ (e.g., sensitive edges) to be connected to the control panel.


Specifications:

• Voltage: 230 V~ ±10%
• Frequency: 50/60 Hz
• Fuse: 1A type T
• Max power consumption 170 watts
• Emergency power supply prepared for PS124 buffer batteries and Solemyo solar kit
• Maximum motor current 3 A (with amperometric tripping level "grade 6")
• Service power output 24 V maximum current 200 mA (voltage can vary from 16 to 33 V )
• Phototest output 24 V maximum current 100 mA (voltage may vary from 16 to 33 V )
• Flashing light output for 24 V flashing lamps , maximum power 25 W (voltage may vary from 16 to 33 V )
• Gate light output for 24 V lamps maximum power 5 W (voltage may vary from 16 to 33 V ) or electromechanical locks 12 V~ 25 W
• ALT input for NC contacts or constant resistance 8.2 KΩ +/- 25%
• Work time automatically detected
• Pause time programmable to 5, 15, 30, 45, 60, 80, 120, 180 seconds
• Discharge time programmable at 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4 seconds
• Sash delay on opening programmable at 0, 5, 10, 15, 20, 30, 40, 50% of working time
• Automatically detected closing sash delay
• Max. length of power supply cables 30 meters
• Radio receiver Plug-in type "SM" for SMXI, SMXIS, OXI receivers (Mode I and Mode II)
• Operating temperature range - 20 to +55 °C
• Degree of protection IP54 when enclosure is intact
• Dimensions (mm) 310 x 232 x H 122
• Weight (kg) 4.1

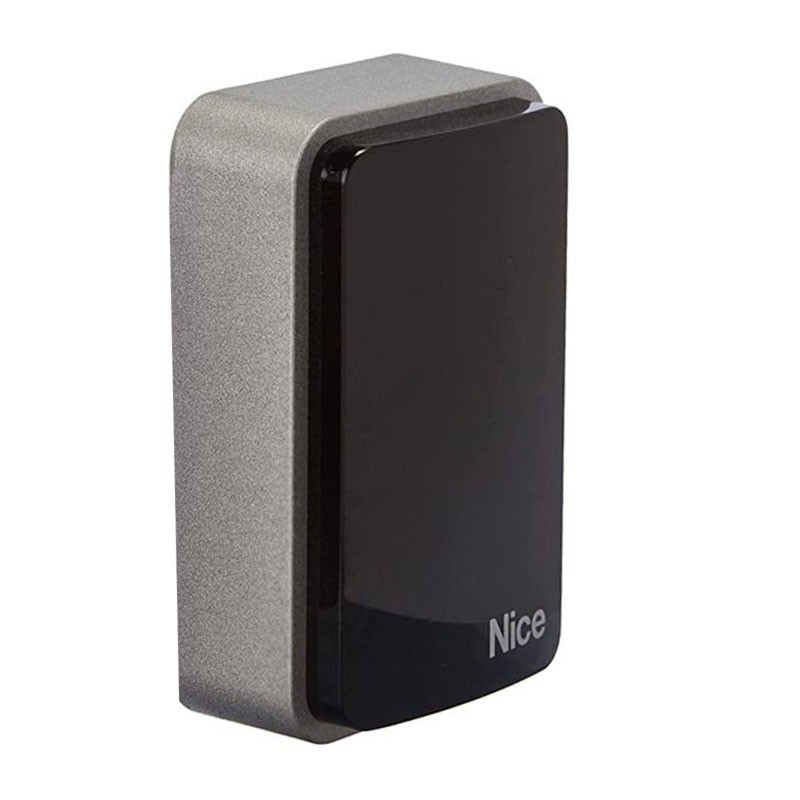

1 piece pair of EPM outdoor photocells:

• Estimated range 15 meters (30 with jumper + 10 cut off)
• Power supply without jumper 24 Vac/Vdc limits: 18-35 Vdc, 15-28 Vac with jumper 12 Vac/Vdc limits: 10-18 Vdc, 9-15 Vac
• Power consumption (mA) 25 RX, 30 TX
• Maximum current consumption: about 55 mA (TX + RX)
• Angle of the beam emitted by the TX: 20° (± 25%)
• RX detection area angle: about 20°, without reduction cone; 8°, with reduction cone (± 25%)
• IP44 degree of protection
• Response time: less than 30ms
• Operating temperature -20/+50°C
• Mounting: elements fixed opposite each other, on two vertical walls and parallel to each other or on special column stand
• Relay capacity max 500mA and 48V
• Dimensions (mm) 50 x 80(h) x 28.5 mm
• Weight 143 grams



Advantages:

• Safe: type D device according to EN12453 to detect obstacles in the optical axis between transmitter (TX) and receiver (RX)
• By using the phototest function, category 2 failure safety according to EN 954-1 can be achieved
• State-of-the-art technologies: anti-glare circuit that eliminates possible interference from sunlight
• EPM models, allows 2 levels of range
• Durable, also in burglar-resistant version: weather-resistant ABS shell, also available with metal shell

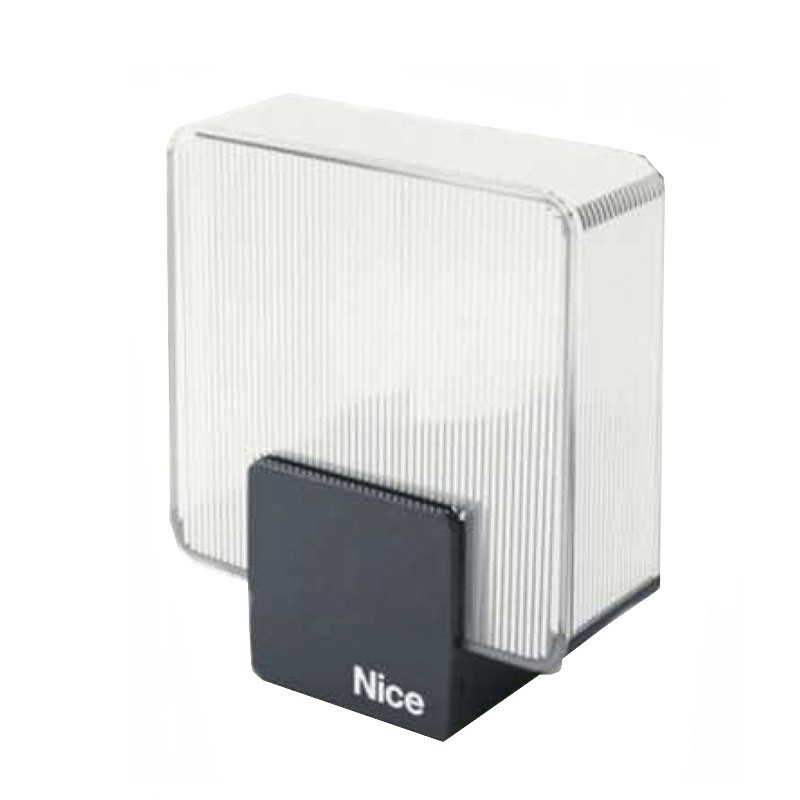

1 piece LED flashing light with integrated antenna ERA LIGHT series code ELAC: Compatible with different electrical standards and can also be installed in areas subject to voltage fluctuations. Particularly shock-resistant housing, suitable for fixing in different positions. Consumes about 80% less power than conventional flashing lights, built-in 433.92 MHz antenna.



Technical characteristics:

• Power supply: 90-240 Vac
• Frequency: 50/60 Hz
• Maximum power consumption: 36 mA
• Power: 5 Watt
• Lamp: white LED
• Internal flasher: yes
• Max operating cycle: 33% (5s ton, 10s toff)
• Degree of protection IP44
• Operating temperature: -20/+50°C
• Dimensions: 132X72X155
