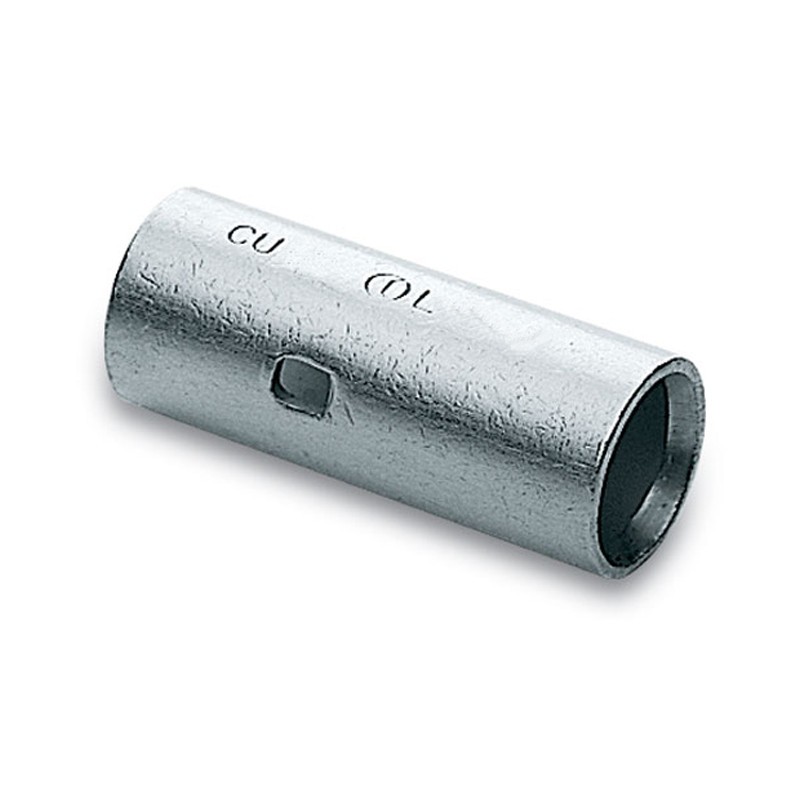

Joints Connectors Cembre head for copper conductors 50mmq L10-M
CEM L10-M
8016692037622
Joints Connectors Cembre head for copper conductors nominal section 50mmq, size diameter 10mm - length 37mm. Copper material ETP tin-plated electrolytically.
Joints Connectors Cembre head for copper conductors 50mmq L10-M
€1.15
€1.15
Tax included
Tax included
Pay in installments with Klarna
Items Available: 250
The connectors of series-M are designed for the jointing of low voltage cables. Are made from tube of electrolytic copper of the same size as the one used for the cable lugs of series A-M, are annealed and protected on the surface by tinning electrolyte. Are provided with a chamfer at both ends, and a stop in the central area, for easy and correct introduction of the conductor.
Are made from tube of electrolytic copper Cu-OF CW008A according to the UNI EN 13600.
Data sheet
- Type:
- Connections
- Cross-Section:
- 50mmq
