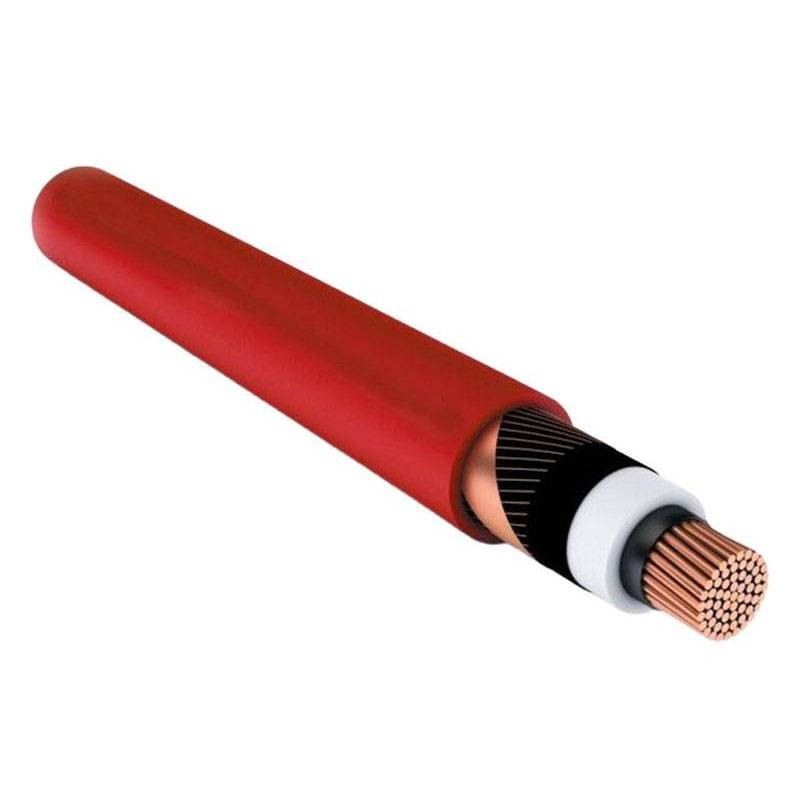

Single core medium voltage cable RG26H1M16 1x50 sq. mm 18/30 kV red

Cavi
9X9 RG26H1M161X5018

Medium Voltage Unipolar Cable RG26H1M16, is designed for power transmission in high reliability installations, thanks to its G26 quality HEPR rubber insulation and LS0H thermoplastic sheathing. Ideal for critical environments and installations with high safety requirements, with the following characteristics:

  • Conductor diameter: 8.1 mm

  • Outer diameter: 32.9 mm

  • Rated voltage: 18/30 kV

  • Maximum operating voltage: 36 kV

  • Color: red

The selling price is per meter.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
Do you have questions about this product or did you not find what you were looking for? Ask us!
Single core medium voltage cable RG26H1M16 1x50 sq. mm 18/30 kV red
€19.62
€19.62

€19.62
Tax included
Calculate shipping cost
Items Available: 673
Further availability of the manufacturer
€19.62

Buy it within and receive it from Monday, 22 December
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

RG26H1M16 cable: HEPR G26, shielded copper and LS0H secure sheathing

HEPR G26 rubber insulation for superior performance

RG26H1M16 cable features high-quality HEPR rubber insulation (G26), which provides better thermal and mechanical performance than conventional cables. With a maximum operating temperature of 105 degrees, it offers a 10% overload margin under normal conditions and greater strength in critical situations.

Red copper conductor and advanced shielding

The conductor is made of compact rigidly formed red copper, ensuring optimal power transmission. The cable has a double extruded semiconductor layer and red copper wire shielding with copper tape in counter spiral for effective protection against electromagnetic interference.

LS0H sheathing: safety and fire resistance

The cable sheathing is made of LS0H quality M16 thermoplastic material, which is halogen-free, ensuring low smoke and toxic gas emission in case of fire. This feature makes it ideal for installations in enclosed environments, such as server rooms, transformer rooms and industrial plants.

Applications and installation methods

The cable is suitable for energy transport between transformer rooms and large utilities, with different laying modes:

  • In air, in pipe or in duct for maximum versatility

  • Installations in fire-hazardous environments, thanks to the LS0H sheathing

  • Environments with high concentration of electrical equipment, for protection and reliability

  • In case of UV exposure, adequate protection is required

Technical Characteristics

FeatureValue
Conductor diameter 8.1 mm
Outer diameter 32.9 mm
Rated voltage 18/30 kV
Maximum operating voltage 36 kV
Conductor Red copper, rigid compact formation, class 2
Semiconductor layer Extruded, cold peelable
Insulation Lead-free HEPR rubber G26, thickness 7.7 mm
Screen Red copper wires with counterspun copper tape
Sheath LS0H thermoplastic, M16 quality, thickness 2 mm
Maximum operating temperature 105 degrees
Minimum operating temperature -15 degrees
Maximum short-circuit temperature 300 degrees
Minimum laying temperature 0 degrees
Color Red

There are no reviews

Data sheet

Cross-Section:
50mmq
Number of cables:
1
