Intercable multi-voltage joint for aluminum cables 50 sq. mm GALMB50
INR GALMB50
8014212386694

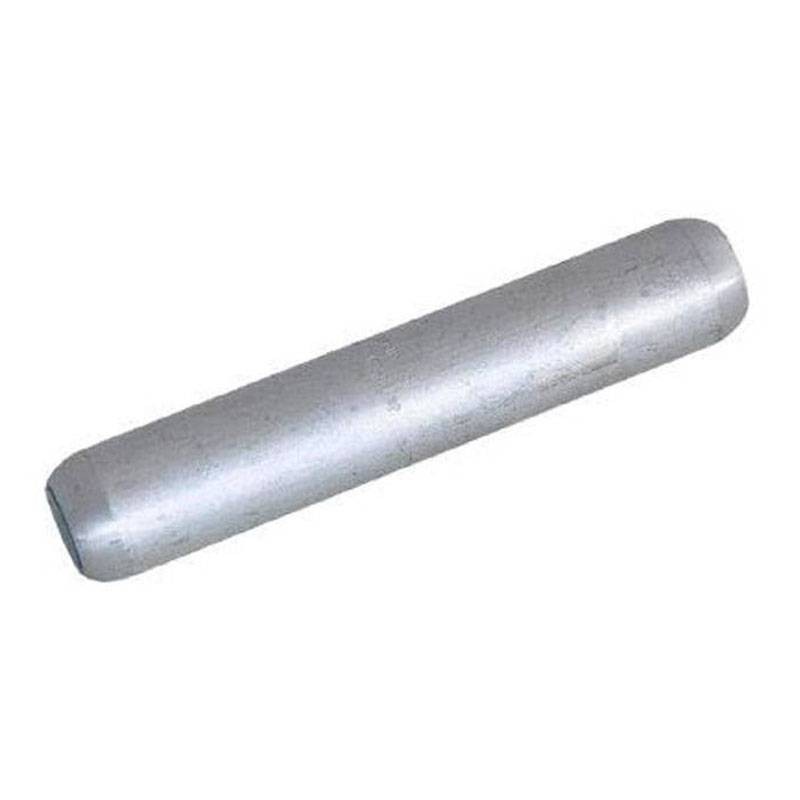

Intercable multi-voltage straight joint for aluminum cables with the following characteristics:
- Made of aluminum with a purity of not less than 99.5%.
- Suitable for low and medium voltage applications

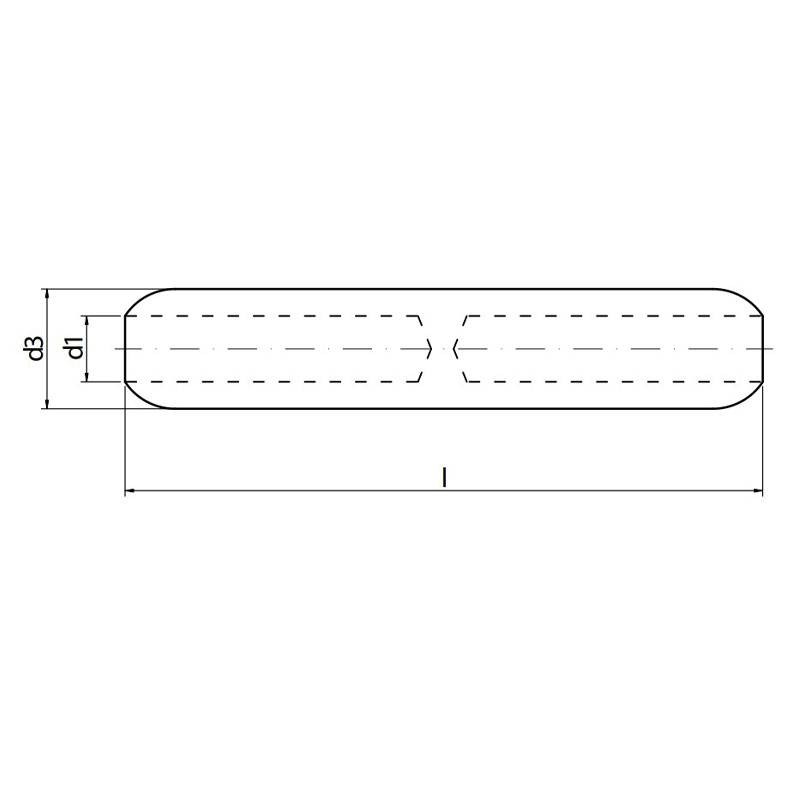

- Outer diameter: 20 mm - Inner diameter: 11 mm (d3-d1)
- Length 106.5 mm
For HPI130-H - API130-H - PP130-H tools.
€3.58
Items Available: 36
: 33
Features:
- Internal joint housings are filled with high-drop-point contact grease sealed with plastic cap
- Inlets are chamfered for easy conductor insertion
- Suitable for low and medium voltage applications
- 95MC1S Matrix
There are no reviews
Data sheet
- Type: Connections
- Cross-Section: 50mmq
