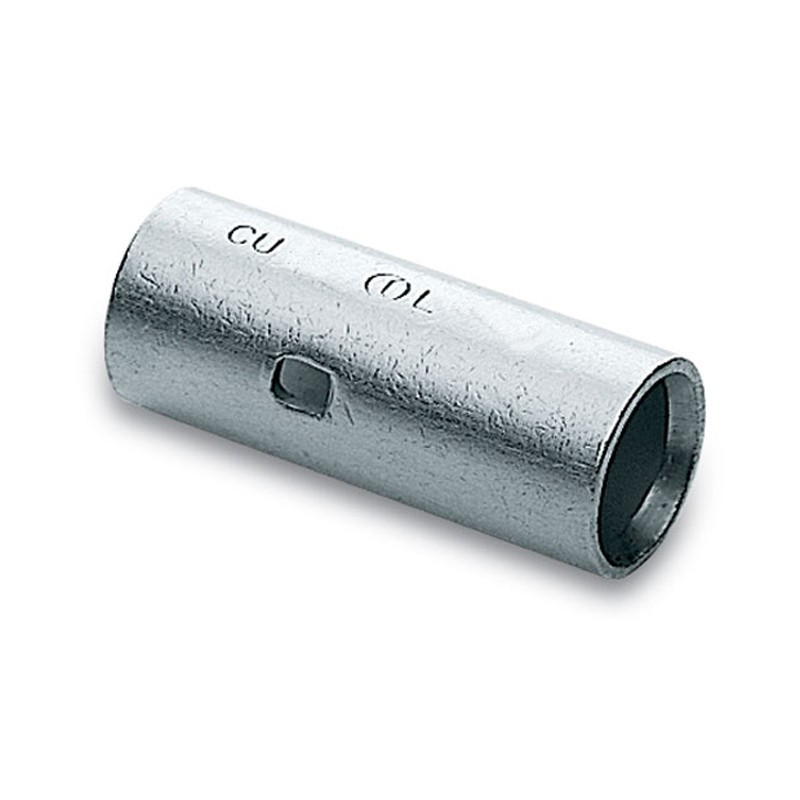

Joints Connectors Cembre head for copper conductors 25mmq L5-M
CEM L5-M
8016692037608
Joints Connectors Cembre head for copper conductors nominal section of 25mmq, dimensions, diameter 7mm, length 29mm. Copper material ETP tin-plated electrolytically.
€0.61
Items Available: 569
: 39
The connectors of series-M are designed for the jointing of low voltage cables. Are made from tube of electrolytic copper of the same size as the one used for the cable lugs of series A-M, are annealed and protected on the surface by tinning electrolyte. Are provided with a chamfer at both ends, and a stop in the central area, for easy and correct introduction of the conductor.
Are made from tube of electrolytic copper Cu-OF CW008A according to the UNI EN 13600.
There are no reviews
Data sheet
- Type: Connections
- Cross-Section: 25mmq
