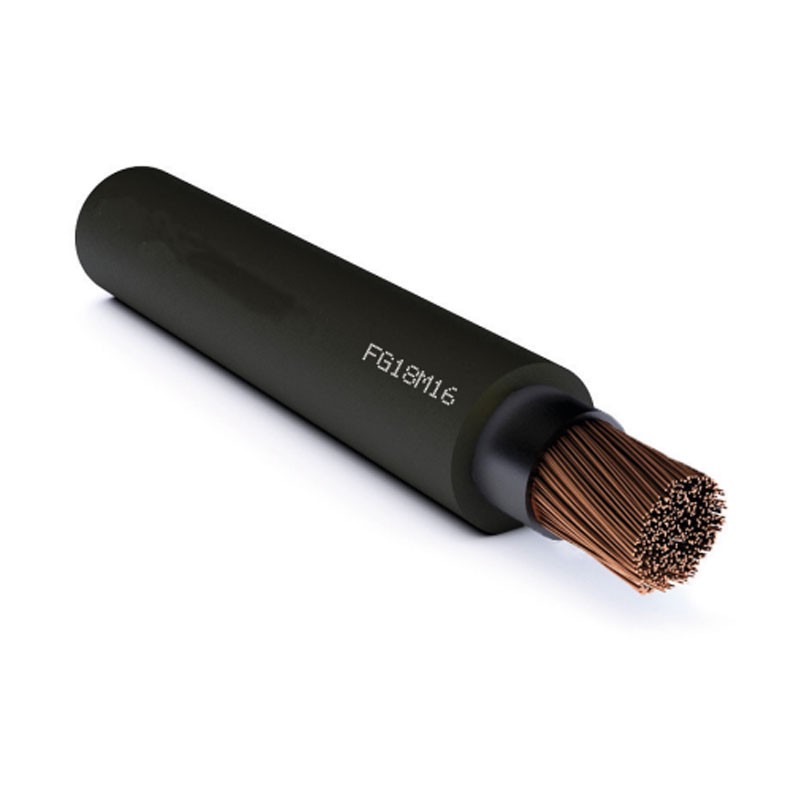

Single-core power cable FG18OM16 1x25 mm² 0.6/1 kV Black
9X9 FG18OM161X25
Single-core cable FG18OM16 1x25 mm² black 0.6/1 kV for energy, flexible, LS0H, compliant with CPR class B2ca-s1a, d1, a1. Ideal for installations in fire-risk environments.
-
Section: 1x25 mm² – single-core
-
Nominal voltage: 0.6/1 kV
-
Flexible red copper conductor, class 5
-
G18 rubber insulation
-
External LS0H M16 sheath, black color
-
Fire reaction: class B2ca-s1a, d1, a1 (CPR)
-
Compliant with CEI UNEL standards, CEI 20-38, IEC 60502-1
-
Max outer diameter: 15.6 mm
-
Indicative conductor diameter 6.2mm
-
Average insulation thickness 1.2mm
-
Average sheath thickness 1.4mm
-
Weight: 330 kg/km
-
Electrical resistance: max 0.780 Ω/km at 20°C
-
Capacity: 141 A in air / 117 A in pipe (30°C)
-
Compliance: Low Voltage Directive 2014/35/EU, RoHS 2011/65/EU
-
Suitable for fixed installation in indoor, outdoor, and wet environments
The sale price is per metre.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
€4.67
Items Available: 438
: 395
Two-year warranty
Single-core cable FG18OM16: maximum safety for high-reliability systems
The single-core power cable FG18OM16 black is designed for energy transmission in systems with a nominal voltage of 0.6/1 kV, with high safety requirements in case of fire. Thanks to the LS0H (Low Smoke Zero Halogen) sheath and the fire behavior certified class CPR B2ca-s1a, d1, a1, it represents an ideal choice for installations in public or industrial environments with a high fire risk.
Quality construction for high performance
The cable consists of a flexible red copper conductor, class 5, with a diameter of 6.2 mm, insulated with G18 quality rubber and protected by an LS0H thermoplastic sheath of M16 quality, with an average sheath thickness of 1.4 mm. The maximum outer diameter is 15.6 mm, while the indicative weight is 330 kg/km.
This structure ensures a maximum electrical resistance of 0.780 Ω/km at 20°C, ensuring excellent conductivity and durability over time.
Versatile installation and compliance with regulations
The FG18OM16 cable is suitable for fixed installation:
- In free air
- In pipe or duct
- On masonry and metal structures
- In indoor or outdoor environments, even wet
The reference ambient temperature (30°C) allows a capacity in air up to 141 A, while in pipe it is 117 A.
Applications in high-risk environments
Thanks to its high fire resistance and low emission of toxic or corrosive fumes, this cable is particularly suitable for installations in:
- Airports and air terminals
- Railway and subway stations
- Road and railway tunnels
- Areas with high crowd density or long evacuation times
| FUNCTIONAL CHARACTERISTICS | |
| Nominal voltage Uo/U | 0.6 / 1 kV |
| Maximum operating temperature | 90 °C |
| Minimum operating temperature | -25 °C (in the absence of mechanical stress) |
| Maximum short-circuit temperature | 250 °C |
| Resistance to industrial oils and greases | Good |
| Behavior at low temperatures | Good |
| INSTALLATION CONDITIONS | |
| Minimum installation temperature | 0 °C |
| Recommended minimum bending radius | 6 × cable diameter |
| Maximum recommended pulling force | 50 N/mm² of copper section |
There are no reviews
Data sheet
- Colour: Black
- Cross-Section: 25mmq
- With yellow/green: No
- Number of cables: 1
