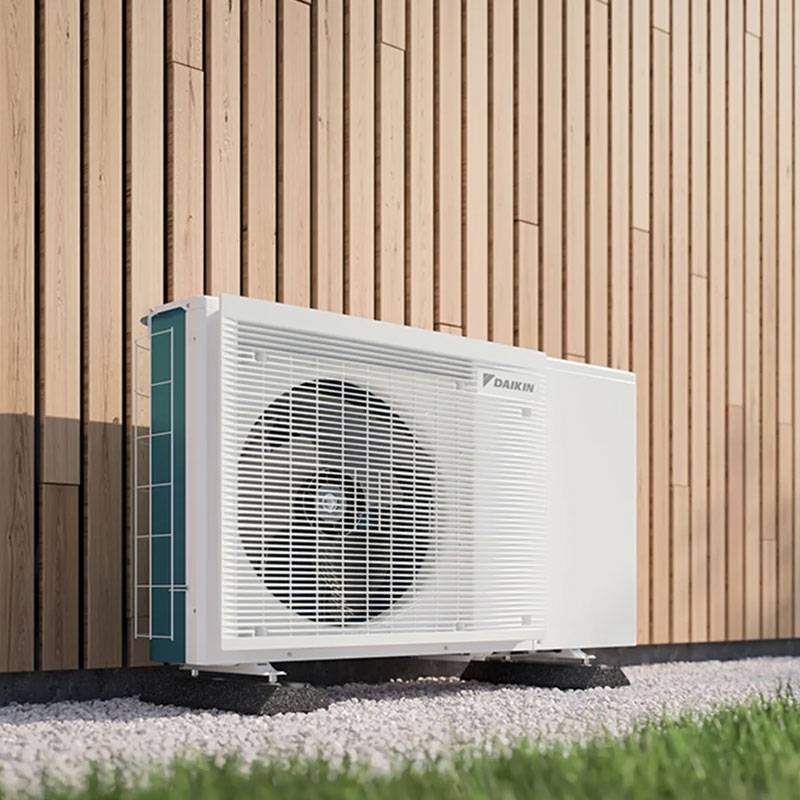

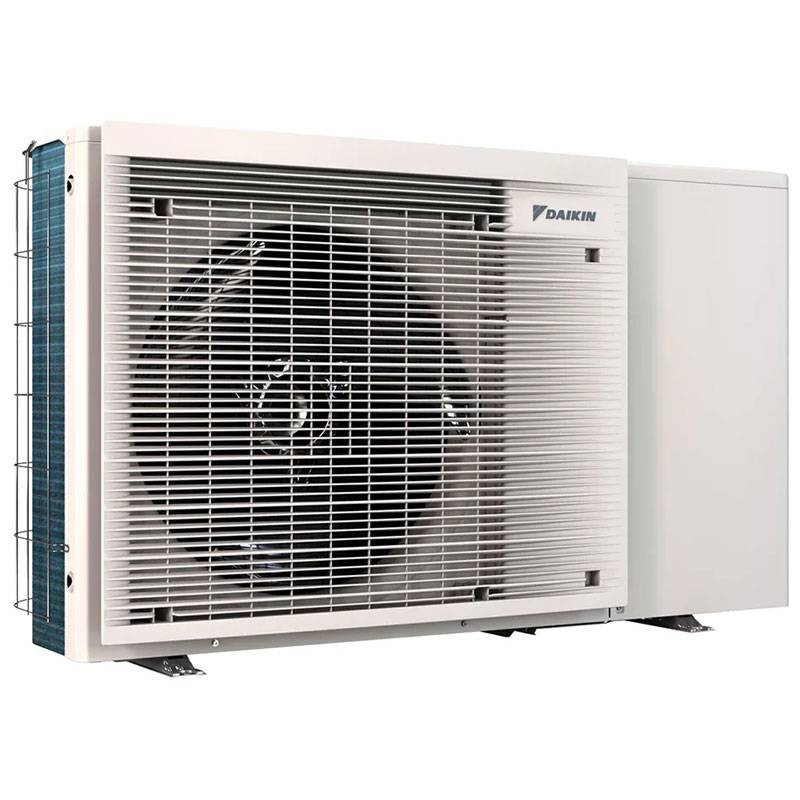

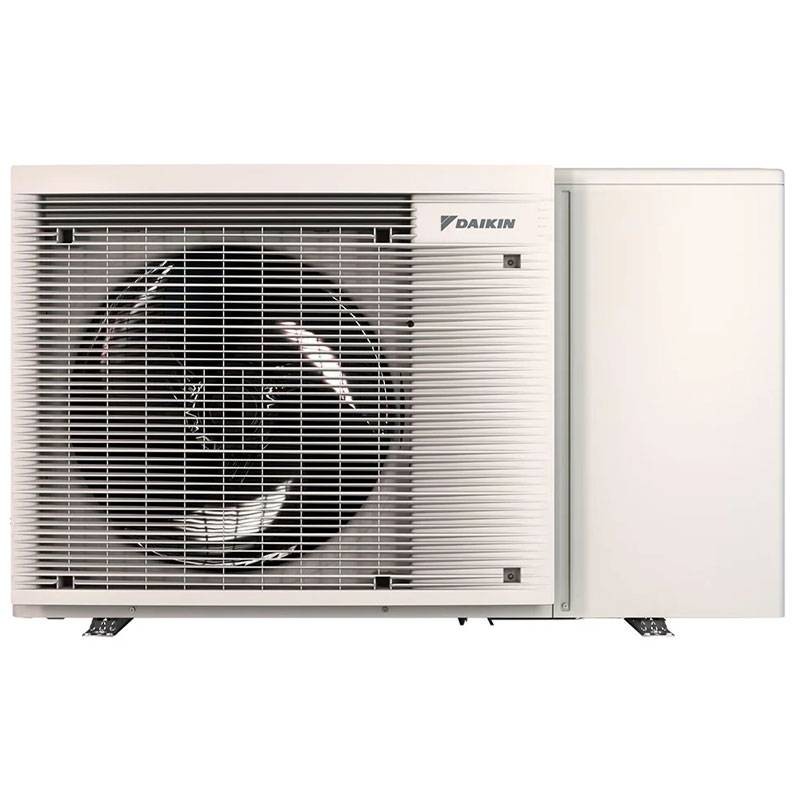

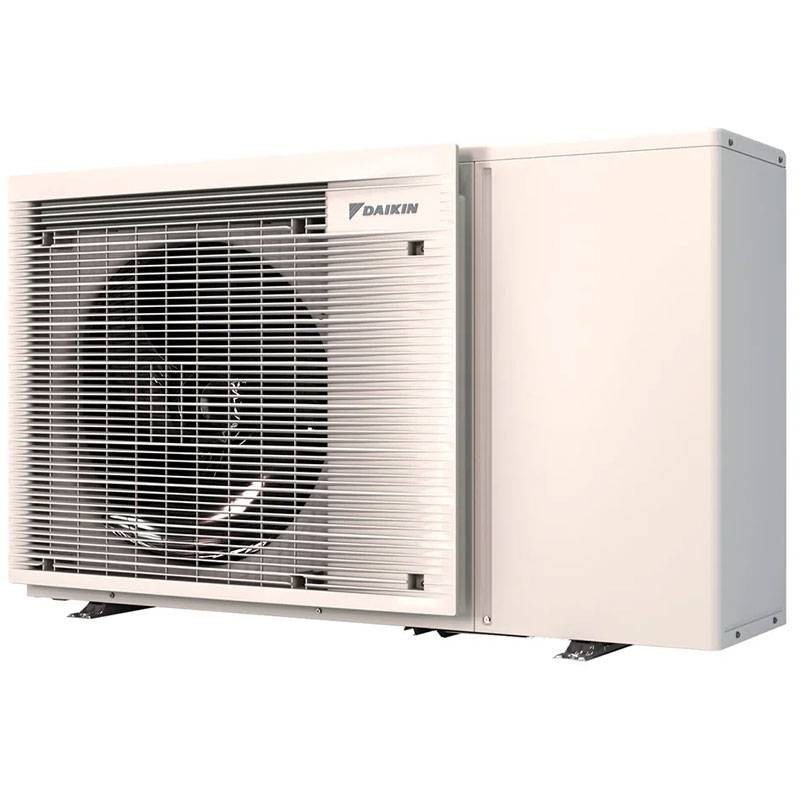

Daikin Altherma 3 M is Daikin's first third-generation monoblock unit: it has an all-new design, uses R32 refrigerant.



Newly designed paneling:

• The white front grille with horizontal lines hides the fan from view, reducing the perception of noise produced by the unit. The uniform, light gray-colored paneling gently reflects the environment in which the unit is installed, allowing it to harmonize perfectly in any setting.



A new fan shape:

• The fan shape has been revamped to reduce the surface area in contact with air and improve its circulation.



Daikin Altherma 3 M works perfectly with various types of radiant bodies, such as fan coils, underfloor heating systems or heat pump convectors.




Onecta app with voice control:

• Heating system control from home or remotely via smartphone
• Voice control of the heating system
• Integration with Google Assistant and Amazon Alexa
• Other functions: scheduling and vacation mode, control of multiple units and Boost mode, energy consumption monitoring...




Features:

• Heating capacity Nom 6.00 / 5.90kW
• Heating Power Consumption Nom 1.24/1.69kW
• COP 4.85/3.50
• Cooling capacity Nom. 5.83/5.09kW
• Power consumption Cooling Nom. 1.08/1.55kW
• Ivory white paneling in galvanized mild steel
• Unit Dimensions Height x Width x Depth 770 x 1,250 x 362mm
• Weight 88kg
• Swing type hermetic compressor
• R32 Gas
• GWP 675
• Charge 1.35 Kg
• Charge 0.91 TCO2Eq
• Control Expansion valve
• Sound power level Heating Nom. 60 dBA
• Power Supply Name/Phase/Frequency/Voltage V1/50/230V
• Current Recommended Fuses 20A



Connections:

• 1M water inlet connection
• 1M water outlet connection
