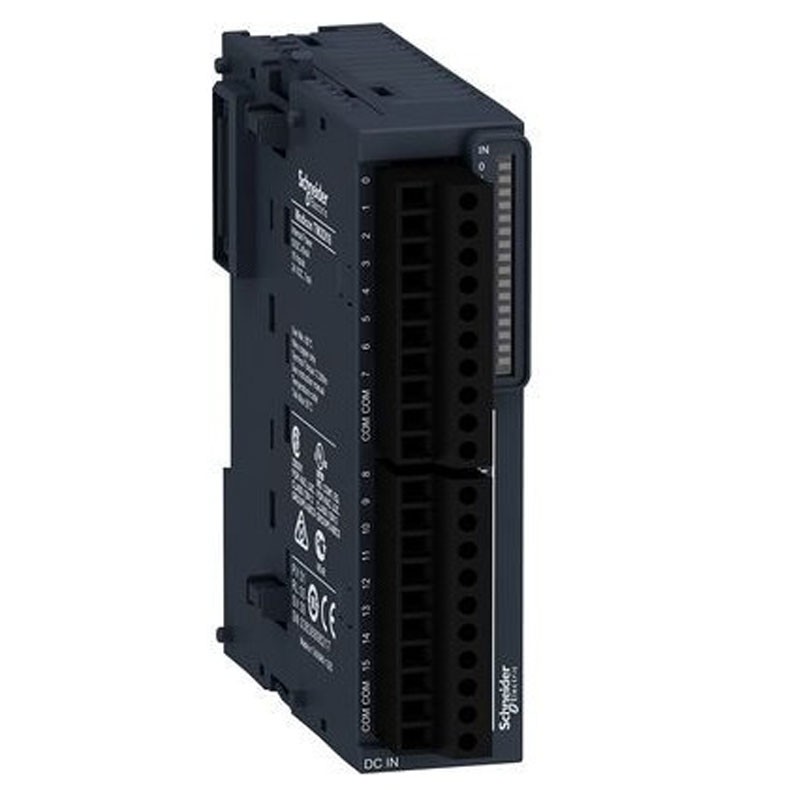

Telemecanique digital input module TM3 16 inputs TM3DI16

Schneider
Schneider
SNR TM3DI16 3606480611384

Schneider Telemecanique digital input module, with the following features:

  • Number of digital inputs: 16 per input complying with IEC 61131-2 type 3
  • Digital input logic: well or source (positive/negative)
  • Digital input voltage: 24V
  • Digital input current: 7 mA per input
  • Number of digital I/O: 16
  • Digital input voltage type DC
  • Voltage status 1 guaranteed: 15...28.8 V per input
  • Current state 1 guaranteed:>= 2.5 mA (input)
  • Voltage status 0 guaranteed:0...5 V per input
  • Current state 0 guaranteed:<= 1 mA (input)
  • Input impedance: 3.4 kOhm
Do you have questions about this product or did you not find what you were looking for? Ask us!
Telemecanique digital input module TM3 16 inputs TM3DI16
€216.51
€216.51

€216.51
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€216.51

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Response time: 4 ms (turn-on)-4 ms (turn-off)
  • Local signaling: 1 LED per way (green)input status:
  • Electrical connection: 10 1.5 mm² removable screw terminal block with 3.81 mm pitch adjustment per input
  • Maximum cable length between devices: unshielded cable: <50 m for regular input
  • Insulation: Between inputs and internal logic: to 500V "AC", Not insulated between inputs
  • CE Symbology
  • Electrostatic discharge resistance: 8 kV in air according to EN/IEC 61000-4-2, 4 kV on contact according to EN/IEC 61000-4-2
  • Magnetic field resistance: 30 A/m "50/60 Hz" in accordance with EN/IEC 61000-4-8
  • Fast transient resistance: 1 kV for I/O in accordance with EN/IEC 61000-4-4
  • Overvoltage resistance: 1 kV I/O common mode complies with EN/IEC 61000-4-5 DC
  • Ambient operating temperature: -10/+35 °C vertical installation, -10/+55 °C horizontal installation
  • Storage temperature: -25/+70 °C
  • Relative humidity: 10...95 %, non-condensing (operating), 10...95 %, non-condensing (storage)
  • IP rating: IP20 with protection cover mounted
  • Pollution degree 2
  • Operating altitude: 0...2000 m
  • Storage altitude: 0...3000 m
  • Shock resistance: 15 gn for 11 ms

Range compatibility:

  • Modicon M241
  • Modicon M251
  • Modicon M221
  • Modicon M262

Current draw:

  • 40 mA at 5 V DC Via bus connector (in on state)
  • 5 mA at 5 V DC Via the bus connector (in the off state)
  • 0 mA at 24 V DC Via the bus connector (in the on state)
  • 0 mA at 24 V DC Via the bus connector (in the off state)

Mounting bracket:

  • Top hat type TH35-15 rail complying with IEC 60715
  • Top hat type TH35-7.5 rail complying with IEC 60715
  • Plate or panel with mounting kit

Dimensions and weight:

  • Height 90 mm
  • Depth 84.6 mm
  • Width 27.4 mm
  • Weight 0.1 kg

Resistance to electromagnetic fields:

  • 10 V/m 80 MHz...1 GHz complying with EN/IEC 61000-4-3
  • 3 V/m 1.4 GHz...2 GHz compliant with EN/IEC 61000-4-3
  • 1 V/m 2 GHz...3 GHz complies with EN/IEC 61000-4-3

Resistance to conducted disturbances, induced by radio frequency fields:

  • 10V 0.15...80 MHz complying with EN/IEC 61000-4-6
  • 3V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) complies with Marine
  • Specification (LR, ABS, DNV, GL)

Electromagnetic emission:

  • Radiated emissions 40 dBμV/m QP class A ( 10 m) at 30...230 MHz complies with EN/IEC 55011
  • Radiated emissions 47 dBμV/m QP class A ( 10 m) at 230...1000 MHz complies with EN/IEC 55011

Vibration resistance:

  • 3.5 mm at 5...8.4 Hz on DIN rail
  • 3 gn at 8.4...150 Hz on DIN rail
  • 3.5 mm at 5...8.4 Hz on panel
  • 3 gn at 8.4...150 Hz on panel
