Siemens Simatic digital input module S7-1200 SM 1226 16X DC 24V 6ES72266BA320XB0
SIE 6ES72266BA320XB0
4025515082897
Siemens Simatic S7-1200 SM 1226 digital input module with the following features:
- Digital inputs: 16x DC 24V
- Nominal value: 24V DC
- Power dissipation: 7W
- Degree of protection: IP20
- Compatible with: SIMATIC S7-1200, for advanced industrial automation

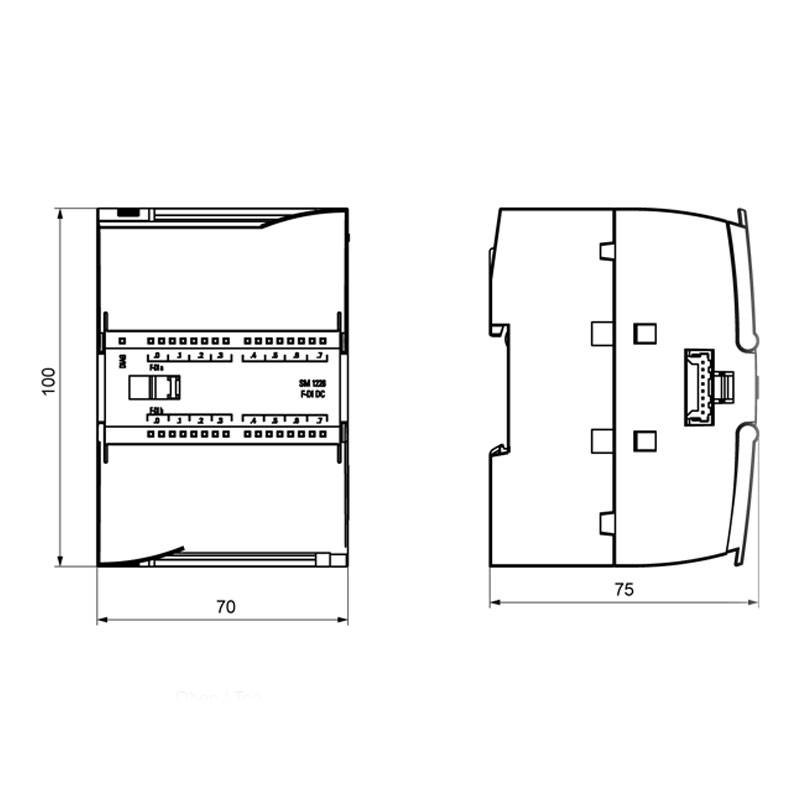

- Dimensions: 70x100x75 (W-H-P)
With its width of 70 mm, it is compact and easily integrated into complex automation systems, offering advanced safety for critical industrial installations.
€261.10
Items Available: 19
: 3

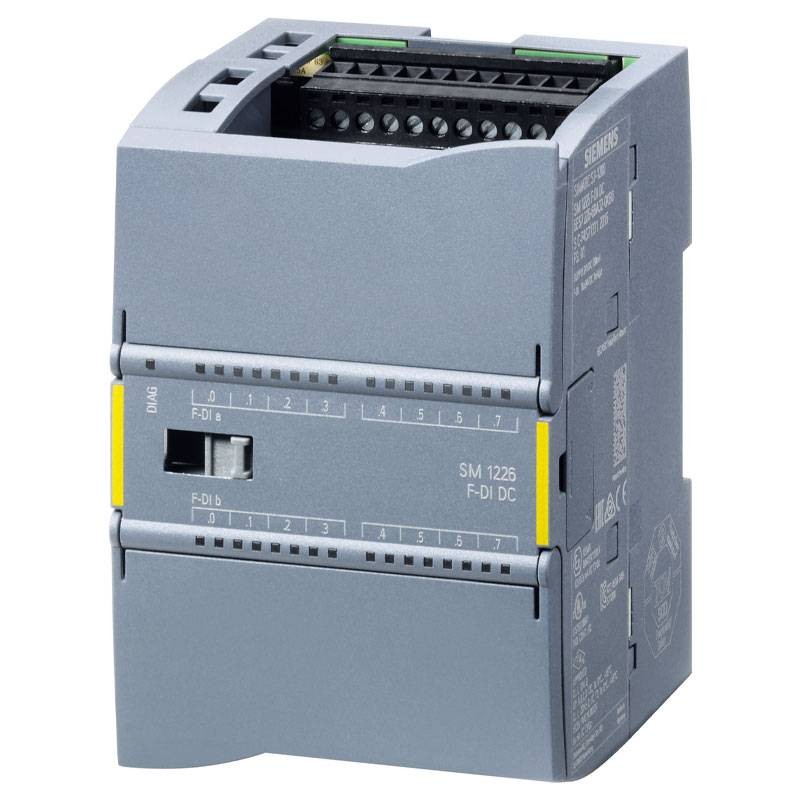

SIMATIC S7-1200 SM 1226 F-DI 16X DC 24V digital input unit is a high-safety digital input module designed for industrial applications that require maximum reliability.
With 16 digital inputs at 24V DC, the module supports PROFIsafe communication to ensure functional safety up to PL e (ISO 13849-1) and SIL 3 (IEC 61508).
With its 70 mm width, it is compact and easily integrated into complex automation systems, offering advanced safety for critical industrial installations.
Features:
- Digital inputs: 16x DC 24V
- Safety: Up to PL e (ISO 13849-1), SIL 3 (IEC 61508)
- Protocol: PROFIsafe for secure communications
- Compatible with: SIMATIC S7-1200, for advanced industrial automation
- Rated value: 24V DC
- Power dissipation: 7W
- Degree of protection: IP20
- Dimensions: 70x100x75 (W-H-P)
- Allowable range, lower limit (DC) 20.4 V
- Allowable range, upper limit (DC) 28.8 V
- Cable length: with shielding, max. 200 m - Unshielded with input filter time from 1.6 ms to 12.6 ms
- Ambient temperature for operation: 0/+55 degrees
- Ambient temperature for storage/transport: -40/+70 degrees
- Relative humidity: Operating at 25 degrees C without condensation, max. 95 percent
- Material: Plastic
There are no reviews
Data sheet
- Type: Digital Input Modules
- Voltage: 24V
