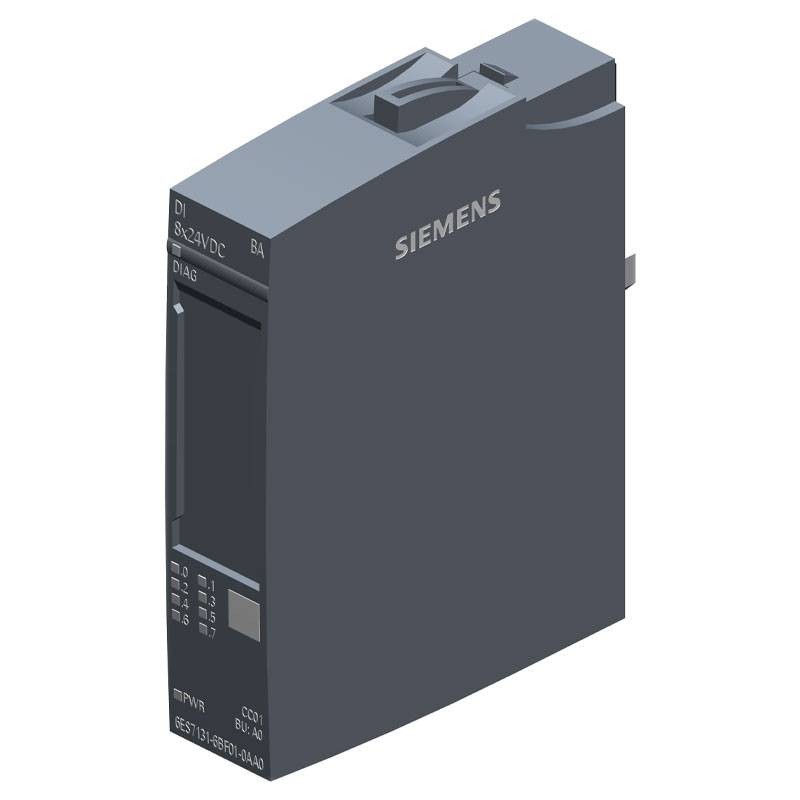

Siemens Simatic Digital Input Module ET 200SP 24V DC 6ES71316BF010AA0
SIE 6ES71316BF010AA0
4047623408673
Siemens Simatic ET 200SP digital input module 6ES71316BF010AA0 with the following features:
- Number of digital inputs: 8
- Number of outputs: 8
- Rated value: 24V DC
- Output current: 700 mA
- Power dissipation: 1.6 W, 24V, 8 inputs fed from transducer power supply
- Input delay adjustable from 0.05 to 20 ms
- Compatibility with base unit (BU) type A0

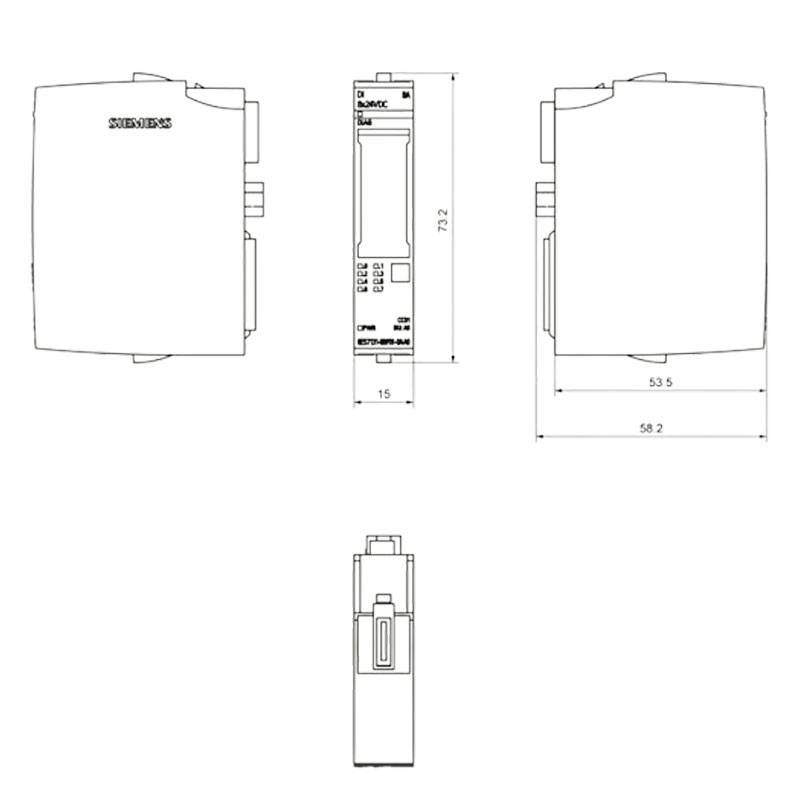

- Dimensions: 15x76x58 mm (W-H-P)
Suitable for industrial environments requiring precise and diagnostic acquisition of digital signals.
€61.15
Items Available: 5
: 2
The SIMATIC ET 200SP DI 8x 24VDC Basic digital input module is an advanced automation unit ideal for acquiring up to eight 24V DC digital signals.
Featuring a Type 2 input according to IEC 61131 and a Sink Input (PNP), it ensures reliable data acquisition. The adjustable input delay from 0.05 to 20 ms makes it flexible for various applications.
With built-in diagnostics for supply voltage, it provides constant monitoring of the system. Perfect for automated industrial environments.
Features:
- DC nominal value: 24 V
- Number of outputs: 8
- 8 digital inputs
- Input type: Type 2, complies with IEC 61131 standard
- Sink Input (PNP), read on positive
- Input delay adjustable from 0.05 to 20 ms
- Built-in diagnostic module for supply voltage
- Compatibility with base unit (BU) type A0
There are no reviews
Data sheet
- Type: Digital Input Modules
- Voltage: 24V
