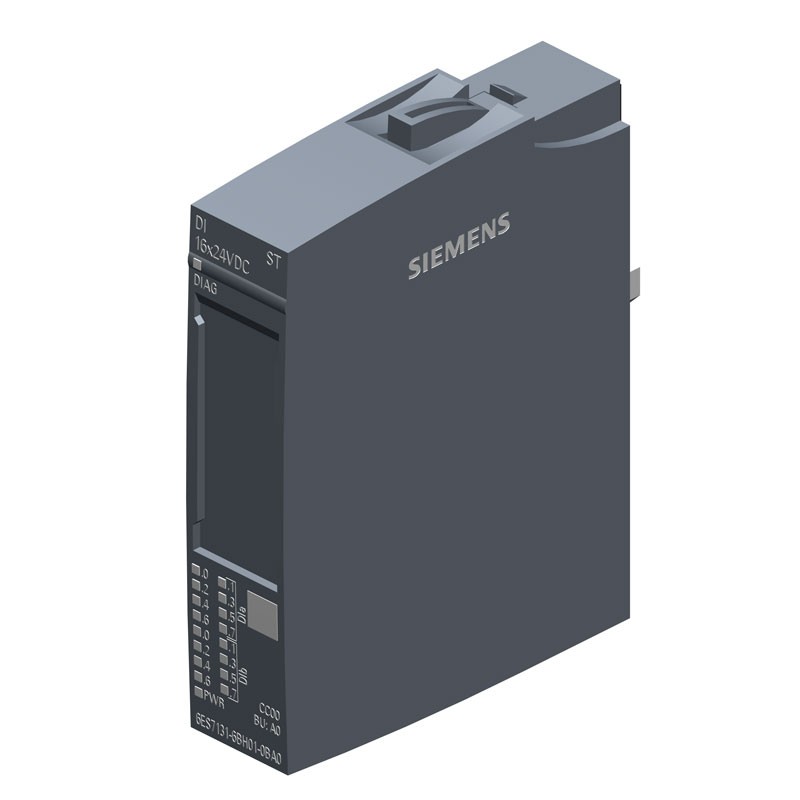

Siemens Simatic ET 200SP 16DI 24VDC Digital Input Module 6ES71316BH010BA0
SIE 6ES71316BH010BA0
4047623408550
Digital Input Module Siemens Simatic ET 200SP 16DI 24VDC DC Standard:
- Input type 3 (IEC 61131)
- Sink Input (PNP, read on P)
- Packaging unit: 1 piece suitable for BU type A0
- Color code CC00
- Input delay 0.05..20ms
- Diagnostic module for: conductor breakage, supply voltage.
€103.39
Items Available: 28
: 4
Features:
- Product type designation DI 16x24VDC ST.
- Hardware version From FS02
- Firmware version V0.0
- FW upgrade possible No
- BaseUnit usable BU Type A0
- Color code for module specific color coding plate CC00
- Product function I&M data Yes; I&M0 ... I&M3
- Engineering with STEP 7 TIA Portal plannable/integrated from version V14 - STEP 7 plannable/integrated from version V5.5 SP3 - PCS 7 plannable/integrated from version V8.1 SP1 - PROFIBUS from version GSD/revision GSD Respectively a GSD file from revision 3 and 5 - PROFINET from version GSD/revision GSDML V2.3
- Operating mode DI Yes
- Supply voltage: Nominal value (DC) 24 V - Permissible range, lower limit (DC) 19.2 V - Permissible range, upper limit (DC) 28.8 V - Reverse polarity protection Yes
- Current consumption, max. 90 mA
- Power loss, typ. 1,7 W
- Dimensions (mm) Width 15 mm - Height 73 mm - Depth 58 mm
- Weight 28 g.
There are no reviews
Data sheet
- Type: Digital Input Modules
- Voltage: 24V
