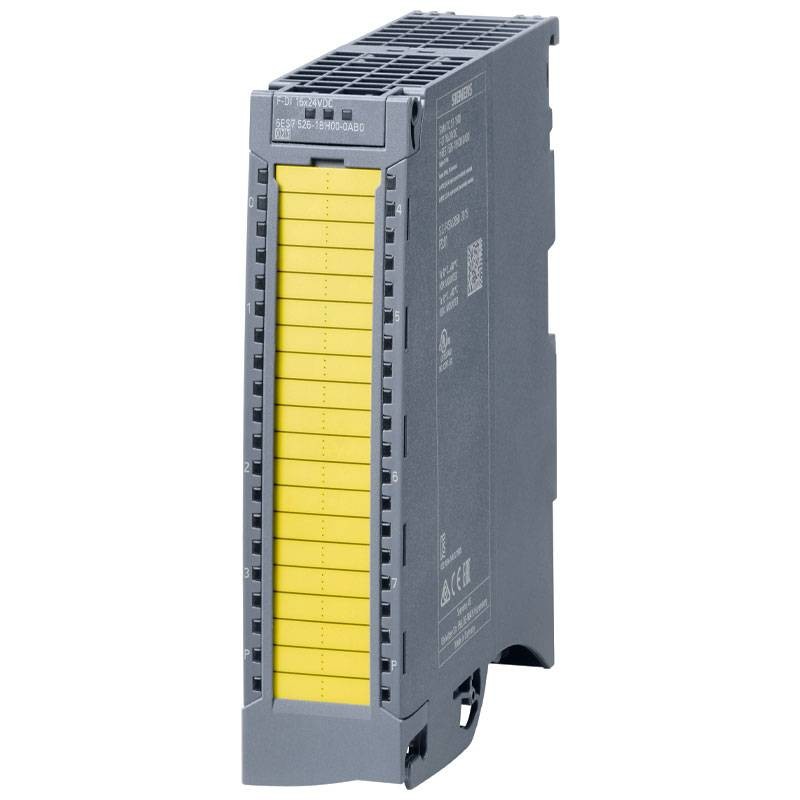

Siemens Simatic S7-1500 F-DI 16x24V DC digital input module 6ES75261BH000AB0
SIE 6ES75261BH000AB0
4047623405955
Siemens Simatic S7-1500 F-DI digital input module 6ES75261BH000AB0 with the following features:
- Number of inputs: 16
- Number of outputs: 4
- Rated value: 24 V DC
- Power dissipation: 4.6W
- Current consumption: 60 mA without load
- 24 V transducer power supply with backplane bus pickup
- Dimensions: 35x147x129 mm (W-H-P)
16-channel secure digital input module with PROFIsafe technology, designed for applications requiring maximum safety levels up to PL E and SIL 3. Ideal for industrial environments, it offers high performance with small footprint and wiring optimization.
€909.34
Items Available: 11
High Safety and Compliance with the Highest Safety Standards
The Simatic S7-1500 F-DI PROFIsafe is designed to meet the highest safety standards, such as Performance Level E (PL E) and Safety Integrity Level 3 (SIL 3). These certifications, according to ISO 13849-1 and IEC 61508, make the module ideal for critical industrial uses that require high reliability and advanced protection for operator and plant safety.
Reliability in Signal Transmission with Up to 16 Inputs
With its 16 digital inputs and 24 V DC power supply, this module can handle a large number of digital signals, making system configuration more efficient. Automatic coding ensures accurate and secure communication with the main system, while the data transport capability via the backplane bus further reduces the need for external wiring, optimizing installation.
Energy Efficiency and Robustness
The module provides a maximum consumption of only 0.9 W from the backplane bus, with a typical dissipation of 4.6 W, promoting greater energy efficiency. Tested for insulation resistance up to 707 V DC, it is suitable for demanding operating conditions and critical industrial environments.
Features:
- Rated value: 24 V DC
- Allowable voltage range: Min. 19.2 V DC - Max. 28.8 V DC
- Transducer power supply: 24 V
- Backplane bus power draw: 0.9 W
- Cable length: Max. 1,000 m with shielding; 500 m without shielding
- Insulation test: 707 V DC
- Operating temperature: Horizontal mounting: 0/+60 degrees Vertical mounting: 0/+40 degrees
- Dimensions: Width 35 mm, Height 147 mm, Depth 129 mm
There are no reviews
Data sheet
- Type: Digital Input Modules
- Voltage: 24V
