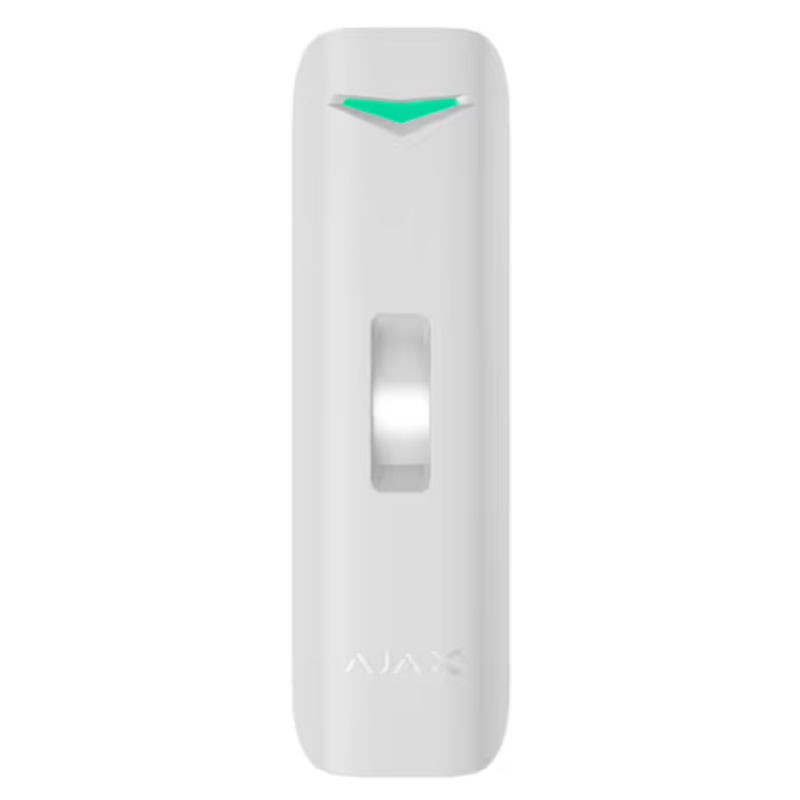

Ajax Curtain Outdoor Mini Jeweller curtain motion detector
08T 130273
Ajax Curtain Outdoor Mini Jeweller is a wireless curtain motion detector for outdoor and indoor use, with dual detection technology and anti-masking. Ideal for protecting windows, doors, and narrow passages.
-
Curtain motion detector for indoor/outdoor use
-
Dual technology: PIR sensor + K-band microwave
-
Detection modes: standard and pet immunity
-
SmartDetect filter and temperature compensation
-
Three adjustable sensitivity levels via app
-
Autonomy up to 3 years with pre-installed batteries
-
Timely notifications for low battery
-
Flexible mounting: vertical, horizontal, or angled
-
Colour: white
€120.56
Out of stock
Incoming
Frequently bought together
Ajax Curtain Outdoor Mini: Advanced Perimeter Security in Confined Spaces
The Ajax Curtain Outdoor Mini Jeweller detector is designed for effective protection of access points such as windows, doors, corridors, and narrow passages. Thanks to curtain technology and its compact size, it is the ideal solution where the installation of magnetic contacts or volumetric sensors is not possible, such as on fixtures of historic buildings or in limited outdoor areas.
Dual Detection to Eliminate False Alarms
The device uses a PIR sensor that detects temperature changes, integrated with a K-band microwave sensor that verifies presence before sending an alarm. This dual control minimizes false positives due to thermal interference or insignificant small movements. The K-band, compared to the traditional X-band, offers greater energy efficiency and detection accuracy.
Pet Mode and SmartDetect Filter
The detector includes two modes:
- Main, to detect any movement
- Pet immunity, which ignores movements of animals up to 100 cm in height
The SmartDetect system analyzes the collected data in real-time (size, heat intensity, speed, time in the zone) to ensure intelligent and accurate detection. Temperature compensation maintains accuracy even when the ambient temperature approaches body temperature.
Simple Installation and Remote Management
Ajax Curtain Outdoor Mini Jeweller can be mounted vertically, horizontally, or at an angle, offering maximum flexibility. The installation is wireless, and configuration can be easily done via the Ajax app, with the possibility to select 3 sensitivity levels based on the environment and application.
Guaranteed Autonomy and Reliability
The device operates with two pre-installed batteries that ensure up to 3 years of autonomy. The system sends timely notifications in case of low battery, allowing proactive management without interruptions in operation. Each battery is tested before delivery to ensure quality.
| DEVICE COMPATIBLE WITH | |
|---|---|
| Hub / Control Panel | EN54 Fire Hub Jeweller Hub 2 (2G) Jeweller Hub 2 (4G) Jeweller Hub 2 Plus Jeweller Hub BP Jeweller Hub BP Jeweller (without casing) Superior Hub G3 Jeweller Superior Hub Hybrid (2G) Superior Hub Hybrid (4G) Superior Hub Hybrid (4G) (without casing) Superior Hub Hybrid 2 Superior Hub Hybrid 2 (without casing) Superior MegaHub Superior MegaHub (without casing) EN54 Fire ReX Jeweller ReX 2 Jeweller ReX Jeweller Superior ReX G3 Jeweller |
| COMMUNICATION | |
|---|---|
| Communication Technology | Jeweller and Wings (Ajax Systems) |
| Communication Features | Bidirectional, anti-tampering, block encryption with mobile key, instant notifications, management via Ajax app |
| Operating Frequencies | 866–866.5 MHz / 868–868.6 MHz / 868.7–869.2 MHz / 905–926.5 MHz / 915.85–926.5 MHz / 921–922 MHz (depending on region) |
| Effective Radiated Power (ERP) | Up to 20 mW |
| Radio Modulation | GFSK |
| Communication Range | Up to 1700 m in open field |
| Transmission Security | Block encryption with mobile key, frequency hopping |
| Firmware Function | Update via Wings protocol with data packet recovery |
| DETECTION | |
| Sensor Type | 1 × PIR + 1 × K-band microwave |
| Microwave Frequency | 24 GHz |
| Detection Distance | Up to 5 m (installation at 1 m) |
| Detection Angle | Horizontal 15° / Vertical 100° |
| Detection Speed | 0.3 ÷ 2.0 m/s |
| Sensitivity | 3 adjustable levels |
| Pet Immunity | Up to 100 cm in height (weight not relevant) |
| False Alarm Prevention | Dual detection PIR + MW, SmartDetect |
| Temperature compensation | Operational from -25°C to +60°C |
| Recommended installation | Ceiling up to 5 m, side at 1 m |
| Usage environment | Indoor and outdoor |
| TAMPER PROTECTION | |
| Anti-tamper alarm | Yes, in case of removal or tearing |
| Counterfeit protection | Device authentication |
| Anti-masking | Visual obstruction detection |
| Accelerometer | Movement detection (with third-party bracket) |
| Connection loss detection | After 36 s (configurable) |
| POWER SUPPLY | |
| Battery type | 2 × CR123A (pre-installed) |
| Estimated battery life | Up to 3 years |
| Operating voltage | 4.1 ÷ 6.2 V DC |
| Nominal voltage | 6 V DC |
| Standby consumption | 30 µA |
| Maximum consumption | 600 mA |
| Total battery capacity | 1600 mAh |
| Low battery warning | 4.48 V |
| Battery recovery | 5.14 V |
| End of battery life | 4.1 V / 170 mAh remaining |
| Battery manufacturer | Huiderui / Panasonic |
| HOUSING | |

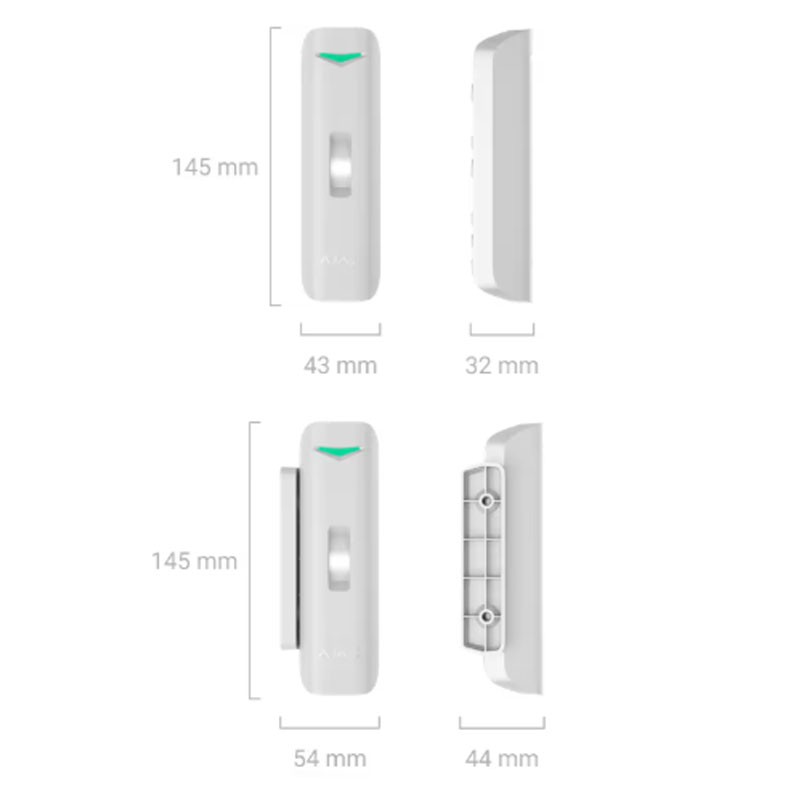

| Sensor dimensions | 145 × 32 × 43 mm |
| Dimensions with angled bracket | 145 × 44 × 54 mm |
| Sensor weight | 130 g |
| Bracket weight | 20 g |
| Protection class | IP55 |
| Operating temperature | -25°C ÷ +60°C |
| Maximum humidity | 95% |
| PACKAGE CONTENTS | |
| Equipment | Curtain Outdoor Mini Jeweller, SmartBracket, 2 CR123A batteries, angled bracket, installation kit, quick guide |
