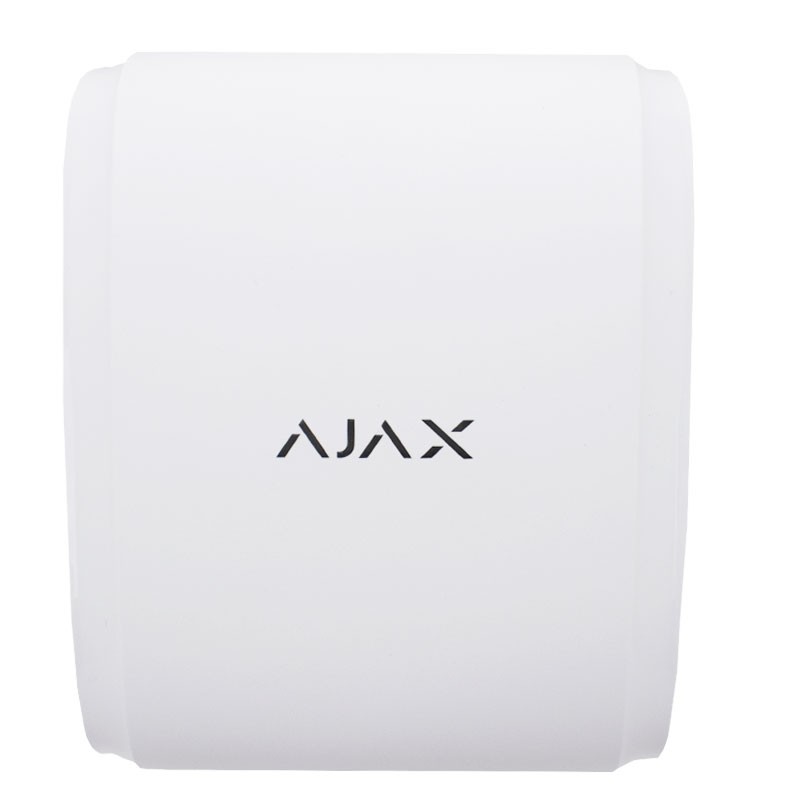

Ajax DualCurtain Outdoor two-way curtain detector white
08T 39055
4823114017353
The Ajax DualCurtain Outdoor white two-way curtain detector is an advanced device. With two independent optical systems and ELSA intelligent software, it provides coverage up to 30 meters, reducing false alarms caused by natural interference or pets. Designed for outdoor environments, it provides effective control without hindering movement within the protected area.
-
Dual detection area: Two independent optical systems with PIR sensors.
-
Detection distance: 4-15 meters per side, up to 30 meters total.
-
Viewing angle: 4.5° horizontal, 90° vertical.
-
Detection speed: 0.3 to 2.0 m/s.
-
Pet immunity: Ignore animal movements up to 80 cm in height.
-
Temperature compensation: Accurate detection in any weather condition.
-
False alarm prevention: ELSA digital algorithm to distinguish between real intrusion and environmental interference.
-
Durable design: Rugged construction, ideal for outdoor environments.
€273.35
Items Available: 58
Ajax DualCurtain Outdoor two-way curtain detector
DualCurtain Outdoor monitors the perimeter without creating obstacles to people already inside. Two independent optical systems with narrow field-of-view sectors and flexible settings allow accurate adjustment of 30 meters of detection range, ruling out possible sources of false alarms. ELSA's unique ELSA software responds to intruders by ruling out triggers such as natural interference and pets.
Detection

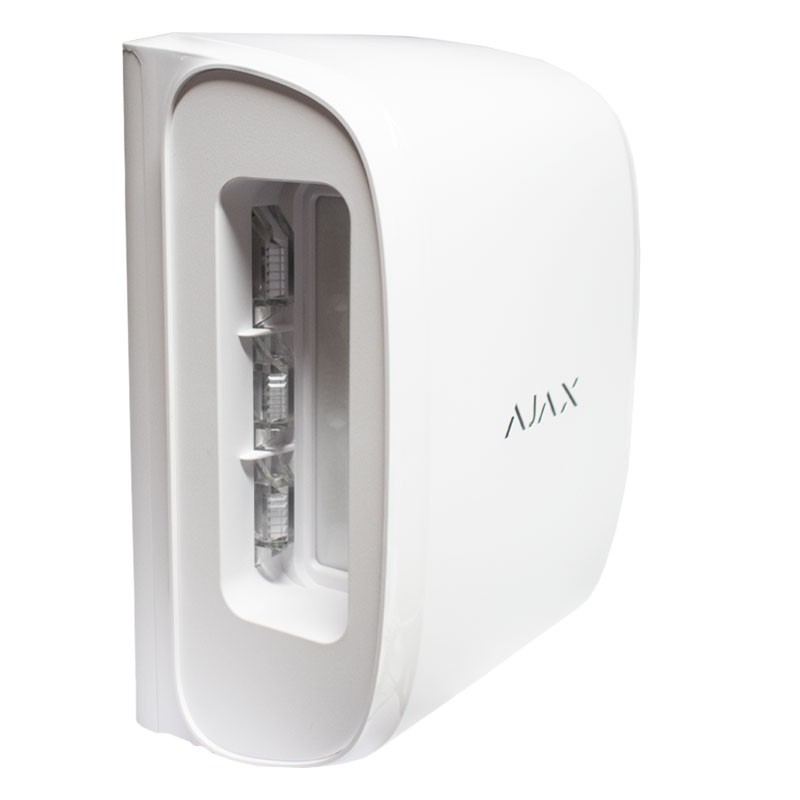

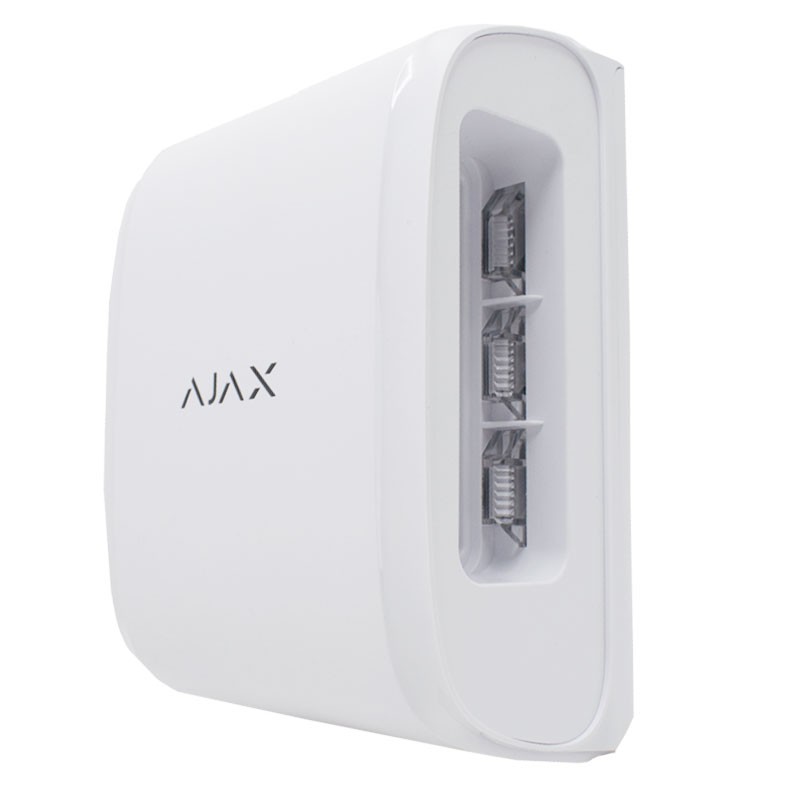

On the sides of the detector are two optical systems with narrow field-of-view sector, each equipped with two PIR sensors. Thanks to thermal compensation, detection is always accurate. The sensor signals are analyzed by our new digital ELSA algorithm. The detector activates the alarm only if two sensors in the same optical system simultaneously detect the movement of people.
Adjustment of the area to be protected
DualCurtain Outdoor features technology that expands the protected area-a unique feature among outdoor curtain motion detectors. When Near Area Detection is activated, the detector's upper PIR sensor receives an additional narrow sector of vision, directed at a 40-degree angle downward from the main one. This feature allows both sensors to detect motion when a person crosses the protected perimeter near the body of the device, solving the blind spot problem that is typical of such detectors.
Near Area Detection is designed to protect windows and other passages that animals do not have access to. The proximity of detection zones significantly reduces the efficiency of pet immunity.
Two independently adjustable detection radius
The detection radius of the two optical systems is independently adjustable. This allows you to precisely set the perimeter protected by DualCurtain Outdoor and avoid false alarms caused by a bush moving in the wind or people passing by on a public sidewalk. To avoid the detector's field of view being blocked by a column or downspout on a facade, optical systems can be oriented horizontally.. Within the app it is possible to adjust the sensitivity or disable one of the optical systems.
Anti-sabotage
DualCurtain Outdoor cannot be imperceptibly obscured or disabled even if the security system is turned off. The detector's optical systems are reinforced with sensors with advanced anti-masking that respond to obstacles, cover, and lens painting. The anti-tampering mechanism will not allow the device to be removed from the stand unnoticed. And even in the event that the detector is instantly destroyed, the hub takes less than a minute to detect the loss of communication and inform a monitoring station and users of the problem.
Communication system
Jeweller radio protocol to ensure uninterrupted operation of all devices within the security system. The radio protocol uses time frames to synchronize the communication of connected devices, authentication to eliminate forgery, and encryption to protect against hacking:
- Two-way communication up to 1,700 meters
- 5 radio signal repeaters in the security system
- Adjustable ping interval from 12 seconds
Battery life
With low power consumption, DualCurtain Outdoor will run for years with pre-installed batteries. The monitoring station and users will be notified in advance if maintenance work is needed on the device:
- Up to 4 years of battery life
- Battery charge level in the app
- Low battery notification
Easy installation
DualCurtain Outdoor's connection and configuration process saves the installation engineer time in the best way possible. To add a detector to the system, simply scan the QR code with the Ajax app and assign it a name and a room. You can configure the device in real time while testing detection zones and communication. If necessary, the detector can be disabled or system parameters can be reconfigured remotely, without on-site intervention.
Ajax device compatibility
- Hub 2 (2G) Jeweller
- Hub 2 (4G) Jeweller
- Hub 2 Plus Jeweller
- Hub BP Jeweller
- Hub Hybrid (2G)
- Hub Hybrid (4G)
- Hub Plus Jeweller
- ReX 2 Jeweller
- ReX Jeweller
Connection
| Feature | Description |
|---|---|
| Communication Technology. | Jeweller - Proprietary wireless technology for transmitting alarms and events. |
| Features |
|
| Operating frequencies. |
Based on sales region. |
| Maximum effective radiated power (ERP) | Up to 20 mW |
| Automatic power control | Reduces power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | Up to 1,700 m between the detector and the hub (or radio signal repeater) in open space. |
| Encrypted communication | All stored and transmitted data are protected by block encryption with a moving key. |
| Frequency hopping | Prevents radio interference and signal inhibition. |
Detection
| Feature | Description |
|---|---|
| Sensor type | 4 × PIR sensor |
| Motion detection distance | 4-15 m from each side When installed at a height of 0.8 or 1.3 m. Separate adjustment for each side using sliders on the rear panel of the detector. |
| Viewing angle | Horizontal: 4.5° Vertical: 90° |
| Motion detection speed | 0.3 to 2.0 m/s The detector lens must be positioned perpendicular to the path you take as you enter the room. |
| Near zone detection | When enabled, the detector's upper IR sensor has an additional view, directed downward at an angle of 40° from the main view. This is necessary to detect motion in the vicinity of the detector and reduce the blind spot. Separate adjustment for each side using sliders on the detector's rear panel. |
| Shifting the viewing angle. | If enabled, the viewing angle of the optical system can be shifted by 3° in the horizontal plane. Separate adjustment for each side via sliders on the rear panel of the detector. |
| Sensitivity | 3 levels Set by a PRO or a user with administrator rights in the Ajax app. |
| Animal Immunity | Height: up to 80 cm - Any weight |
| False alarm protection | SmartDetect, ELSA (Software Algorithms) |
| Temperature compensation | Effective motion detection at temperatures from -25°C to +60°C. |
Installation
| Feature | Description |
|---|---|
| Installation height | The detector is installed at a height of 0.8-1.3 meters above ground level when used to protect doors, arches, other passageways or the area in front of windows. If the detector is used to protect windows, it is installed at a height of 0.5-0.6 meters from the window sill. |
Anti-Sabotage Protection
| Feature | Description |
|---|---|
| Tamper alarm | Warning if an attempt is made to detach the detector from the surface or remove it from the mounting panel. |
| Protection against counterfeiting | Device authentication to prevent tampering attempts. |
| Anti-masking system | DualCurtain Outdoor Jeweller detects the following types of masking: - Obstructions in front of the detector lens at a maximum distance of 10 cm (depending on the material). - Paint over the detector lens. - Adhesive tape on the detector lens or side. |
| Detection of connection loss. | Detection time: from 36 sec. Time depends on Jeweller (or Jeweller/Fiber) settings. |
Power Supply and Case
| Feature | Description |
|---|---|
| Power supply | 2 × CR123A batteries |
| Battery life | Up to 4 years |
| Dimensions | 174 × 123 × 88 mm |
| Weight | 615 g |
| Operating temperatures | -25°C to +60°C |
| Maximum allowable humidity | up to 95% |
| Protection class | IP54 |
Package Contents
| Element | Description |
|---|---|
| DualCurtain Outdoor Jeweller | Outdoor motion detector |
| SmartBracket mounting panel | Installation bracket |
| Installation kit | Mounting screws and accessories |
| 2 CR123A batteries | Preinstalled |
| Quick Start Guide | Instruction manual for setup and operation |
Facile da installare e calibrare. E' pet immune, ma rileva con precisione le figure umane.
montaggio semplice, buone le informazioni. efficace.
appena installata, molto semplice il settaggio
Facila da installare, manuale utente on line chiaro e preciso
je le recommande pour établir une barrière de protection externe
Facil instalacion y facil la configuracion.
Un poco aparatoso.
Data sheet
- Colour: White
- Type: Detectors Wireless
- System: Curtain
- Installation: External
Wireless
