Ajax MotionProtect 5 Pet Immune Wireless Motion Detectors Kit
KIT 38193

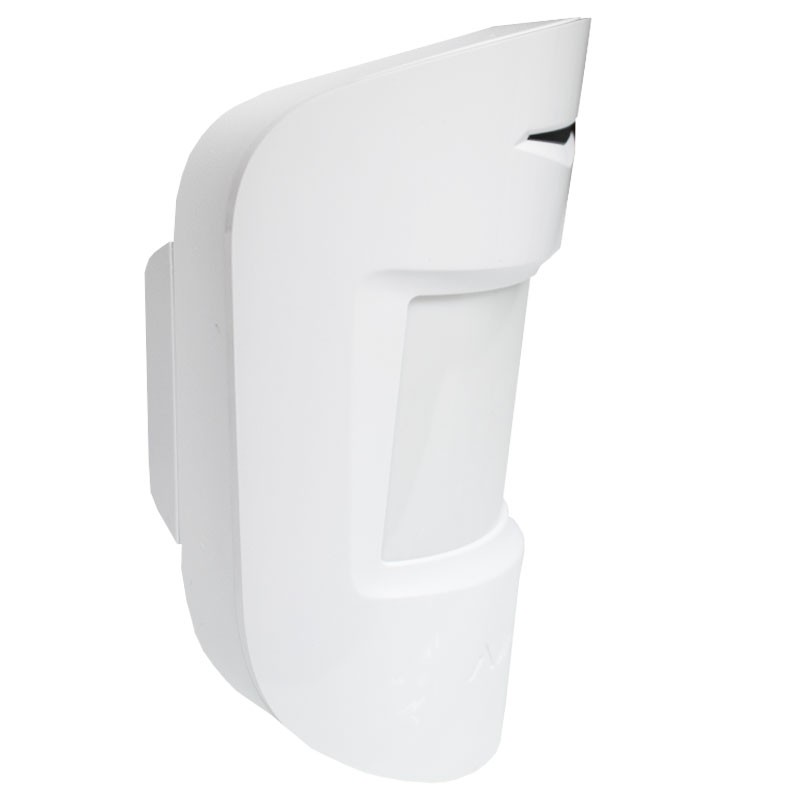

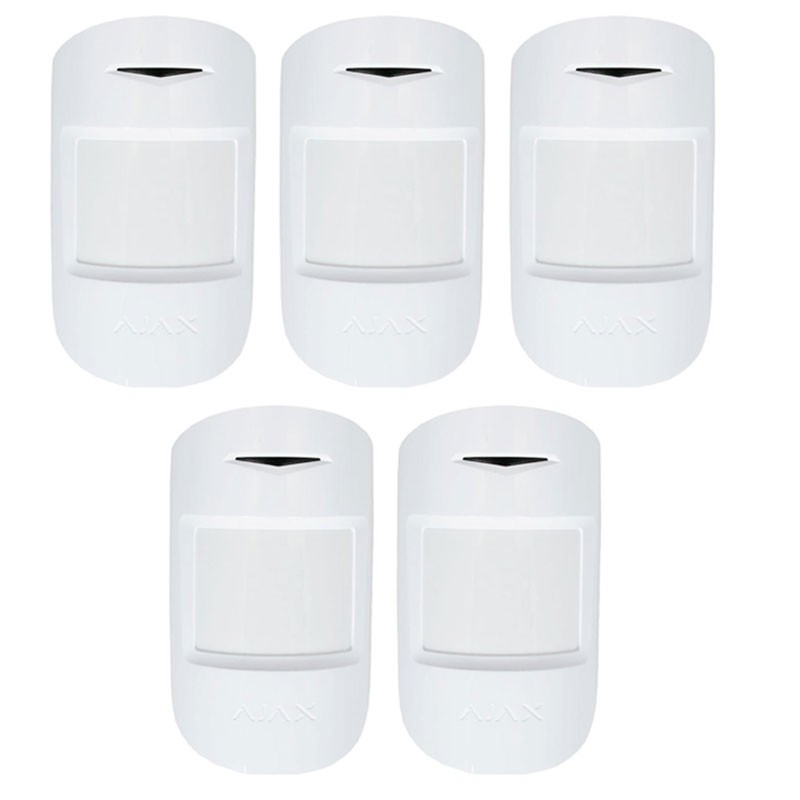

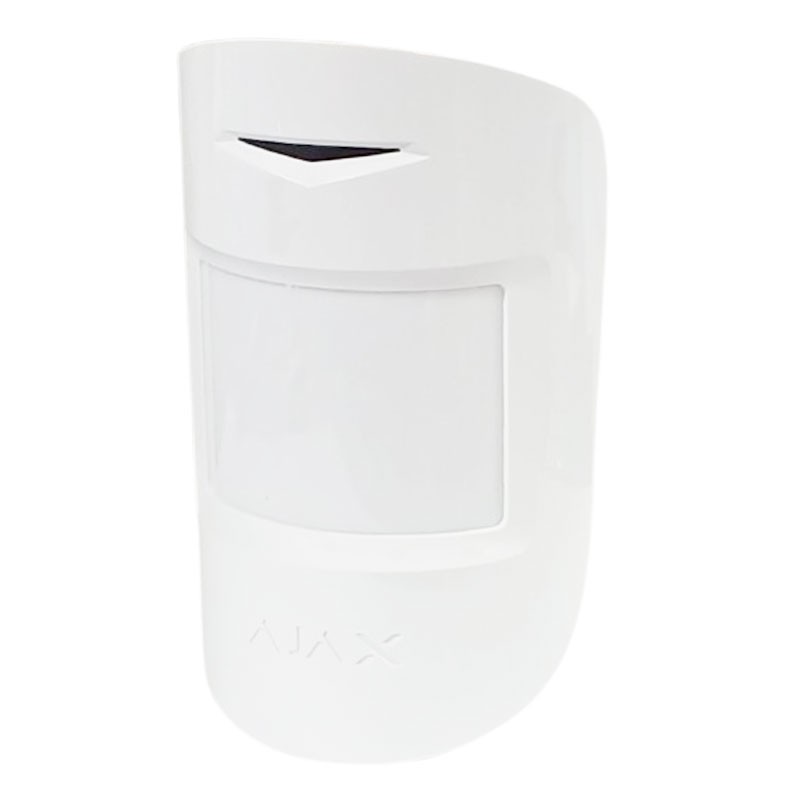

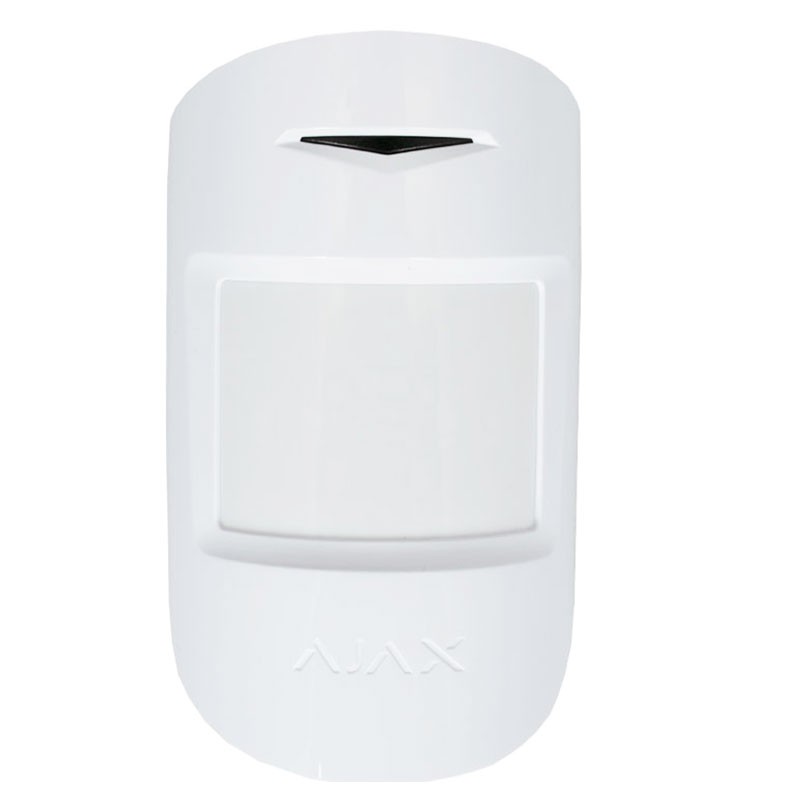

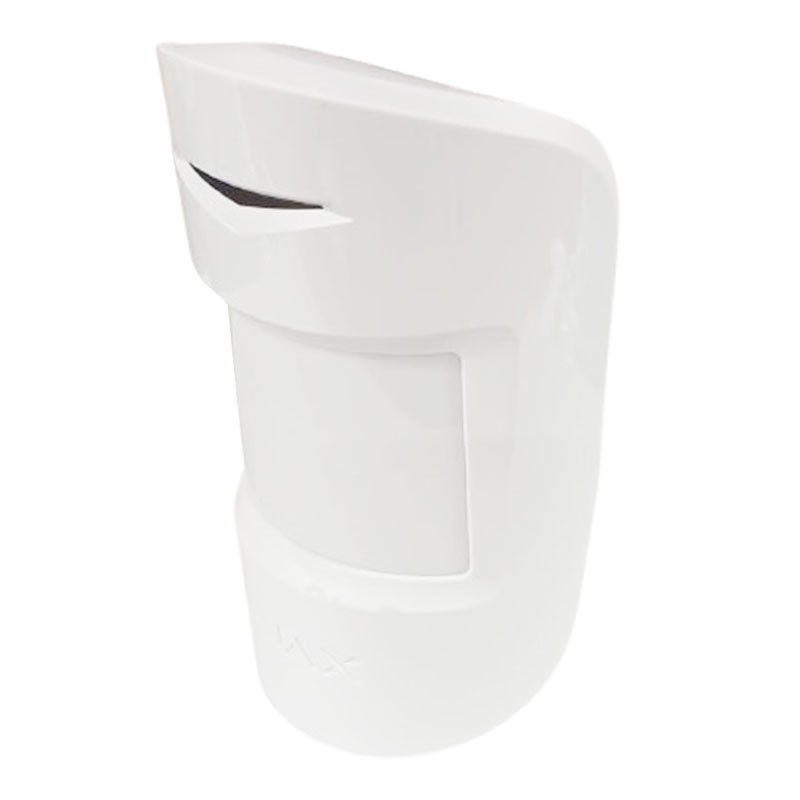

Kit consisting of 5-piece AJAX MotionProtect wireless motion detectors PIR Pet Immune colour White:
Featuring wireless technology, a detection range of up to 12 meters, pet immunity and advanced false alarm prevention algorithms, provides reliable protection and remote control via Ajax applications:
-
Compatibility: Ajax hub (any version) required for operation.
-
Detection Range: Up to 12 meters, ideal for medium and large environments.
-
Viewing angles: Horizontal 88.5°, vertical 80° for optimal coverage.
-
Pet immunity: Unresponsive to animal movement up to 20 kg and 50 cm in height.
-
False alarm prevention: Advanced optical system and software to minimize false positives.
-
Encrypted two-way communication: Range of up to 1700 m between hub and detector.
-
Long battery life: Up to 5 years of operation with preinstalled batteries.
-
Remote configuration and control: Management via Ajax app for Android and iOS.
With the kit you save compared to individually purchased items
€264.03
Items Available: 58
: 39
Frequently bought together
AJAX MotionProtect Wireless IR Motion Detector
Jeweller's MotionProtect uses an optimized detection algorithm to distinguish between human movement and other interference, preventing false alarms. Ideal for installations in environments with pets or situations with changing conditions.
Optical system
The detector lenses increase sensitivity to human motion, preventing false alarms caused by other sources of infrared radiation. |The device is designed so that potential infrared radiation from animals or other interference can only touch the small sections of the lens. The large sections of the lens, on the other hand, face the direction most likely to be infringed upon by criminals.
Software
As additional protection from false alarms, the detector uses the SmartDetect algorithm. When armed, the detector constantly analyzes the thermal diagram of the PIR sensor: the intensity of infrared radiation, the size of heat spots, the speed of movement, and other parameters.
Installation
When properly installed and configured, the detector does not react to common causes of false alarms and pets under 50 cm in height and 20 kg in Weight. For easy installation, the detector has Batteries preinstalled and mounts on the SmartBracket mounting panel. So installers do not have to disassemble the detector and do not risk damaging electronic components in mounting.
Jeweller communication technology
Jeweller is a two-way wireless protocol that ensures fast and reliable communication between hubs and connected devices. The protocol instantly sends data-rich alerts: security institutions and users know which device was triggered, when and where it happened. Jeweller features encryption and authentication to prevent forgery and polling to show the status of devices in real time. Supporting up to 1700 m of wireless connection, Jeweller is ready to protect installations and ensure the best user experience for both end users and installers:
- Up to 5 years of operation with preinstalled batteries
- Up to 1700 m of encrypted two-way wireless communication between hub and detector
Technical Specifications
Communication
| Feature | Detail |
|---|---|
| Communication | Two-way communication |
| Anti-sabotage protection | Advanced anti-sabotage protection |
| Encryption | Block encryption with mobile key |
| Notifications | Instant notifications |
| Control | Remote control and configuration in Ajax apps |
| Operating frequencies (Based on sales region) |
|
| Maximum effective radiated power (ERP) | Up to 20 mW (Automatic power control to reduce power consumption and radio interference) |
| Radio signal modulation | GFSK |
| Radio communication range | Up to 1,700 m (Between device and hub (or repeater) in open field) |
| Encrypted communication | All saved and transmitted data are protected by block encryption with a moving key |
| Frequency hopping | To avoid radio interference and signal inhibition |
Detection
| Feature | Detail |
|---|---|
| Sensor type | PIR sensor |
| Motion detection distance | Up to 12 m (when installed at a height of 2.4 m) |
| Motion detection angle | Horizontal: 88.5° |
| Motion detection speed | 0.3 to 2 m/s (detector lens must be perpendicular to the intrusion path) |
| Sensitivity | 3 levels, adjustable by a PRO or a user with administrator rights in the Ajax app |
| Pet immunity | Weight: up to 20 kg; Height: up to 50 cm |
| False alarm prevention | SmartDetect software algorithm |
| Temperature compensation | Effective motion detection at temperatures from -10°C to +40°C |
Installation
| Feature | Detail |
|---|---|
| Recommended installation height | 2,4 m |
| Environment of use | Designed for indoor use |
| Protection class | IP50 |
| Maximum allowable humidity | Up to 75%. |
Anti-jacking protection
| Feature | Detail |
|---|---|
| Tamper alarm | Notifications if an attempt is made to detach the detector from the surface or remove it from the mounting panel. |
| Protection against counterfeiting | Device authentication. |
| Detection of loss of connection. | Within 36 s (Detection time depends on Jeweller or Jeweller/Fiber settings). |
Power supply
| Feature | Detail |
|---|---|
| Battery | 1 × CR123A Preinstalled. |
| Type | C |
| Detector operating voltage | 2,1-3,3 V⎓ |
| Rated operating voltage of the detector | 3 V⎓ |
| Current consumption of the detector at rest at rated voltage | 34.5 μA |
| Maximum current consumption of the detector at rated voltage | 61 mA |
| Full battery capacity | 1,600 mAh |
| Low battery voltage | 2,5 V⎓ |
| Low battery recovery voltage | 2,7 V⎓ |
| End-of-life battery voltage | 2.1 V⎓ (The device is turned off.) |
| Battery capacity at end of life | 300 mAh |
| Calculated battery life | Up to 5 years |
Case
| Feature | Detail |
|---|---|
| Dimensions | 110 × 65 × 50 mm |
| Weight | 86 g |
Contents in the package
| Element | Detail |
|---|---|
| Device | MotionProtect Jeweller |

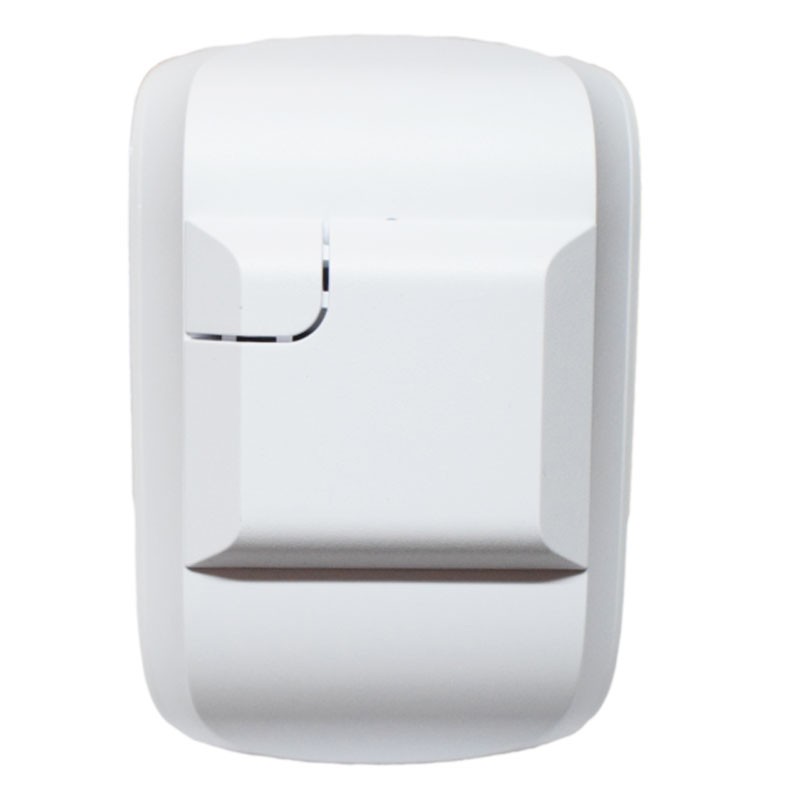

| Mounting bracket | SmartBracket mounting panel |
| Battery | CR123A (preinstalled) |
| Accessories | Installation kit |
| Documentation | Quick Start Guide |
There are no reviews
Data sheet
- Colour: White
- Type: Detectors Wireless
- System: Pet Immunity
- Installation: Internal
Wireless
