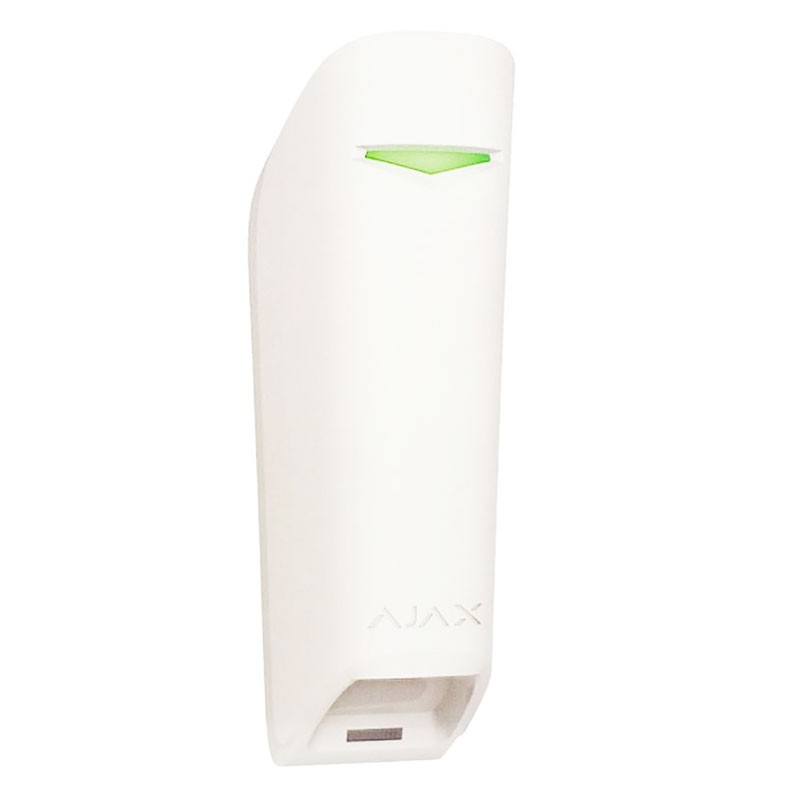

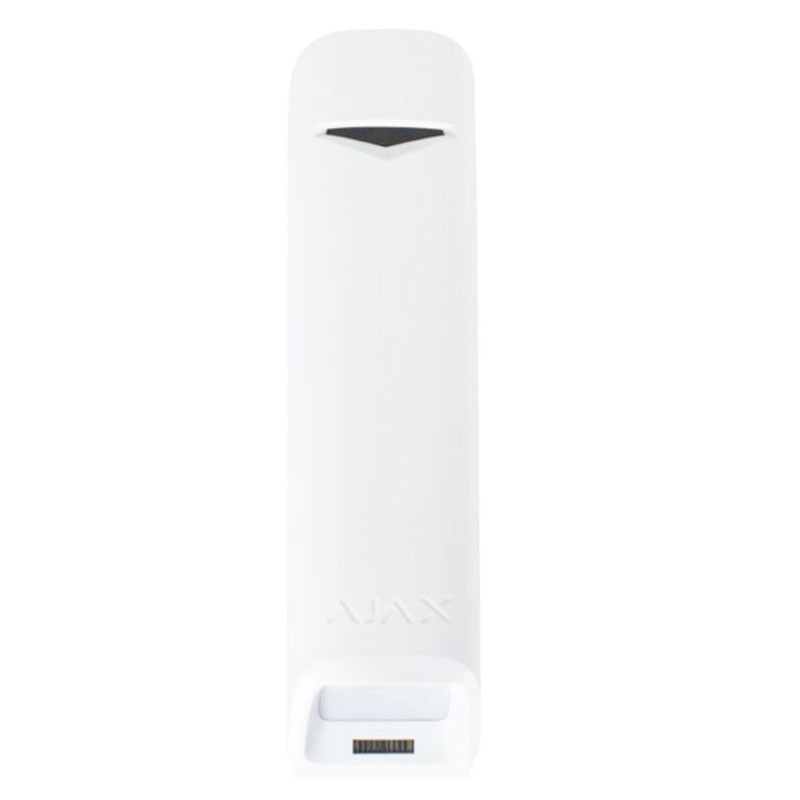

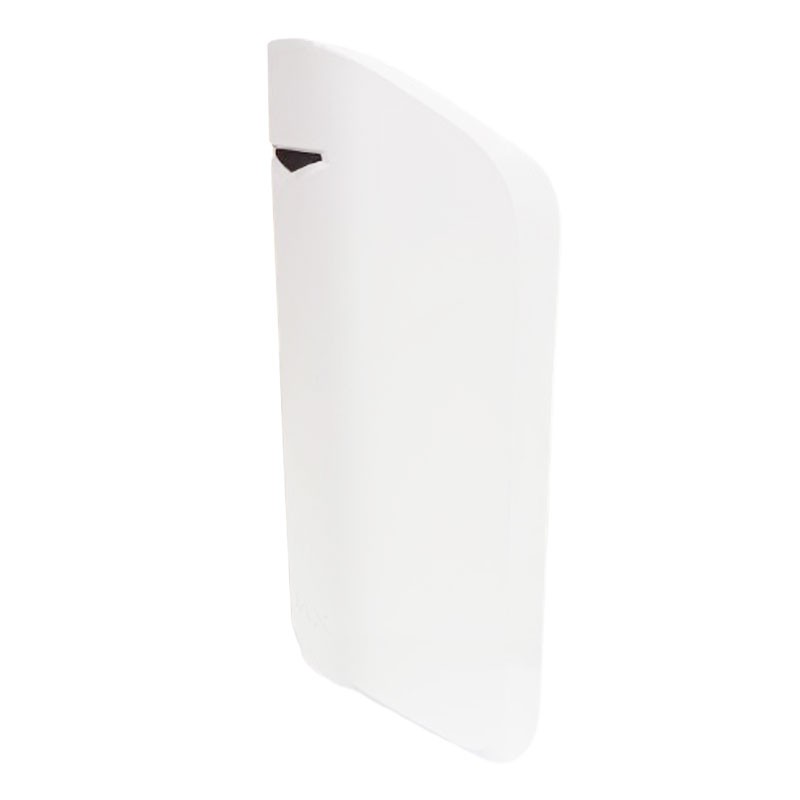

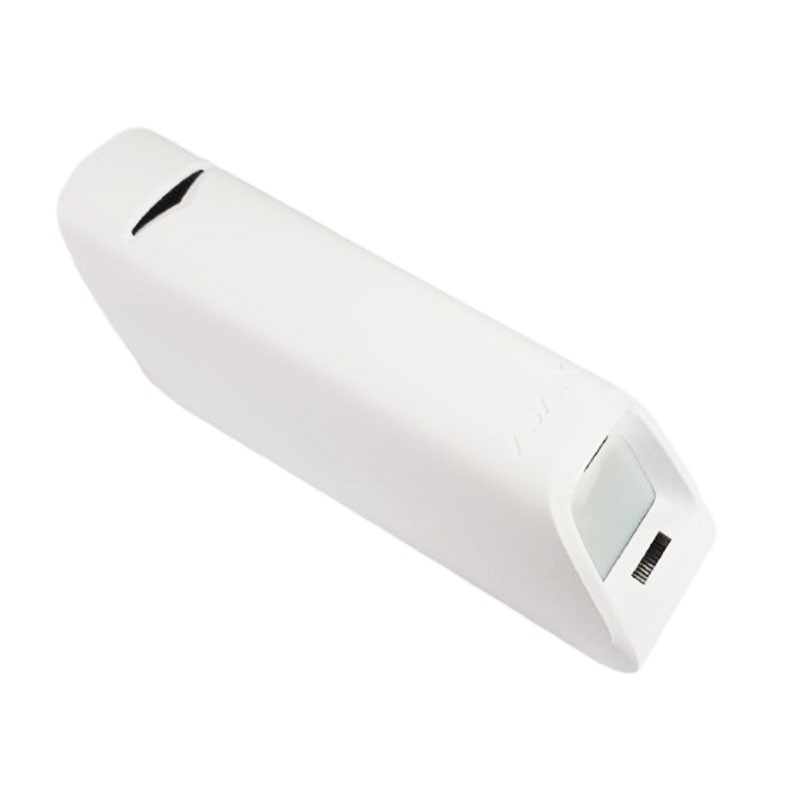

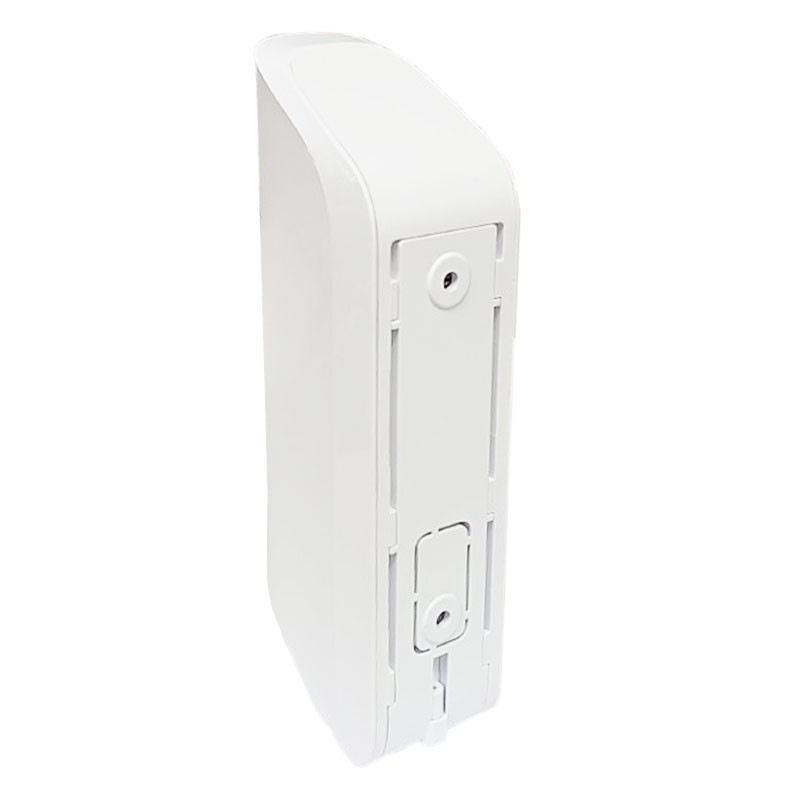

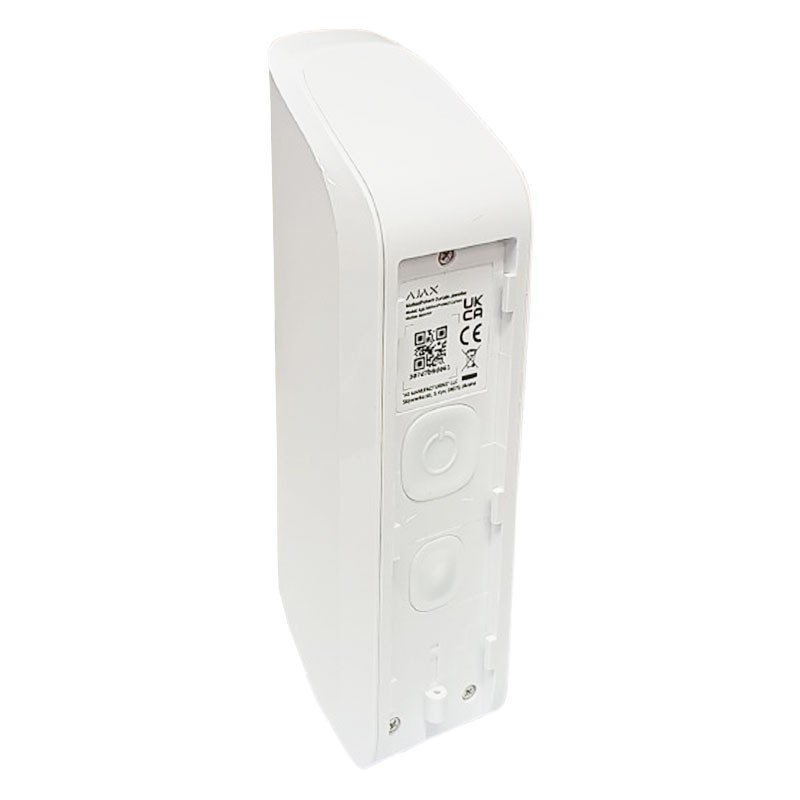

Ajax MotionProtect Curtain motion detector for indoor white
08T 38195
4823114015304
The Ajax MotionProtect Curtain white motion detector is designed to protect specific perimeters with a narrow detection beam. Ideal for windows, doors, garages and valuables, it detects motion at a distance of up to 15 meters. With advanced technology and encrypted wireless connection, it offers reliable and accurate protection for indoor environments:
-
Detection range: Up to 15 meters with a narrow and accurate detection beam
-
Battery life: Up to 3 years with pre-installed battery
-
Wireless communication: Range up to 1,700 meters with Ajax hub, via Jeweller protocol
-
Pet immunity: Ignores pet movements when properly installed
-
Operating temperature: Operates even at -10°C, ideal for cold environments such as garages
-
False alarm prevention: Simultaneous analysis of signals from two PIR sensors to distinguish real movements from interference
-
Data protection: Two-way encrypted frequency-hopping communication to avoid interference or inhibition.
€98.30
Items Available: 253
: 36
Frequently bought together
Ajax MotionProtect Curtain Motion Detector
MotionProtect Curtain is a wireless curtain motion detector. The detector has a narrow horizontal detection angle and is designed for indoor perimeter monitoring: protection of windows, doors, and other entrances and exits of the monitored building. MotionProtect Curtain detects motion up to a distance of 15 meters.
MotionProtect Curtain works within the Ajax system, connecting to the hub via the Jeweller protected protocol. The communication range extends up to 1,700 meters in the open field. The detector operates for up to 3 years with the preinstalled battery.
The detector is configured via mobile application for smartphones running iOS and Android. The user is notified for all events via push notifications, SMS and calls (if activated).
The user can also connect Ajax to the central monitoring station of a security institution.
Applications
- At home: Protects the perimeter of the house by allowing free movement inside. In case of intrusion, it triggers the alarm and alerts the user.
- In the garage: Protects garage doors and windows, detecting movement even in temperatures as low as -10°C.
- In museums and galleries: Ideal for protecting artworks and valuables, triggering the alarm only when visitors cross a defined line.
- In apartments with pets: Ignores movements of pets, even large ones, when properly installed.
Key Benefits.
Immediate response to threats
By analyzing signals from both PIR sensors, the detector immediately detects suspicious movements, sending instant notifications to the user and the alarm receiving center.
Advanced encrypted security
The Jeweller protocol ensures a stable and secure connection by encrypting transmissions and automatically jumping frequencies in case of interference.
Ease of use and long life
With a battery life of up to 3 years and a sleek, unobtrusive design, the detector is an ideal choice for long-term protection.
Operation
The MotionProtect Curtain detector's IR sensors identify intrusions into a protected room by detecting moving objects with a temperature similar to that of the human body.
When the system is engaged, the detector receives signals emitted by two IR sensors at regular intervals. When motion is detected, the detector instantly transmits an alarm to the hub and signals it with the flashing green LED. In the event of an alarm, the hub activates the sirens and alerts the user and the security institution.
Compatibility with the following Ajax hubs
- Hub (2G) Jeweller
- Hub (4G) Jeweller
- Hub 2 (2G) Jeweller
- Hub 2 (4G) Jeweller
- Hub 2 Plus Jeweller
- Hub BP Jeweller
- Hub Hybrid (2G)
- Hub Hybrid (4G)
- Hub Plus Jeweller
- ReX 2 Jeweller
- ReX Jeweller
Communication
| Feature | Description |
|---|---|
| Communication Technology. | Jeweller - Proprietary wireless technology for transmission of commands, alarms and events. |
| Key Features. |
|
| Operating frequencies. |
|
| Maximum effective radiated power (ERP) | Up to 20 mW (with automatic power control to reduce power consumption and interference). |
| Radio signal modulation | GFSK |
| Radio communication range | Up to 1,700 m in open field (between device and hub or repeater). |
| Encrypted communication | Saved and transmitted data protected by block encryption with moving key. |
| Frequency hopping | Prevents radio interference and signal inhibition. |
Detection
| Feature | Description |
|---|---|
| Sensor type | 2 × PIR sensors |
| Motion detection distance |
|
| Motion detection angle |
|
| Motion detection speed | 0.3 to 2.0 m/s (The lens must be positioned perpendicular to the path of entry into the room.) |
| Sensitivity | 3 levels (can be set by a PRO or a user with administrator rights in the Ajax app). |
| Pet immunity | Install the detector upside down to prevent it from reacting to pets. |
| Temperature compensation | Effective motion detection at temperatures between -10 °C and +40 °C. |
Installation
| Feature | Description |
|---|---|
| Recommended installation height | 2,4 m |
| Environment of use | Designed exclusively for indoor use. |
Antisabotage protection
| Feature | Description |
|---|---|
| Tamper alarm | Notifications if an attempt is made to detach the detector from the surface or remove it from the mounting panel. |
| Protection against counterfeiting | Authentication of the device. |
| Detection of loss of connection. | Within 36 seconds (detection time depends on Jeweller or Jeweller/Fiber settings). |
Power supply
| Feature | Description |
|---|---|
| Battery | CR123A (Preinstalled) |
| Type | Type C |
| Calculated battery life | Up to 5 years |
| Operating voltage | 2,1-3,3 V⎓ |
| Rated voltage | 3 V⎓ |
| Idle consumption | 41 μA |
| Maximum consumption | 60.4 mA |
| Full battery capacity | 1,600 mAh |
| Low battery voltage | 2,5 V⎓ |
| Low recovery voltage | 2,7 V⎓ |
| Battery voltage at end of life | 2.1 V⎓ (device is turned off) |
| Battery capacity at end of life | 300 mAh |
Case
| Feature | Description |
|---|---|
| Dimensions | 134 × 44 × 34 mm With bracket: 134 × 52 × 41 mm |
| Weight | 118 g |
| Operating Temperatures | -10 °C to +40 °C |
| Maximum allowable humidity | Up to 75% |
| Protection class | IP54 |
Package Contents
| Element | Description |
|---|---|
| Device | MotionProtect Curtain Jeweller |
| Mounting Panel | SmartBracket |
| Bracket | Included |
| Installation kit | Included |
| Battery | CR123A (preinstalled) |
| Guide | Quick Start Guide |
perfect perfect perfect perfect perfect perfect perfect perfect perfect perfect perfect perfect
idem très bien : permet d'isoler des zones
Il rilevatore è facile da installare e funziona bene
Associato al sistema è provato , ma non ancora installato
Il prodotto si presenta bene ma Non lo ho ancora provato
Non copre l’area come descritto sul sito ajax
prodotto ottimo, facile da configurare lo consiglio
Perfekt 👍🥇 - The best service 👍
Prodotto ordinato rispetta le aspettative, Confezione originale e nuovo
Data sheet
- Colour: White
- Type: Detectors Wireless
- System: Pet Immunity
- Installation: Internal
Wireless
