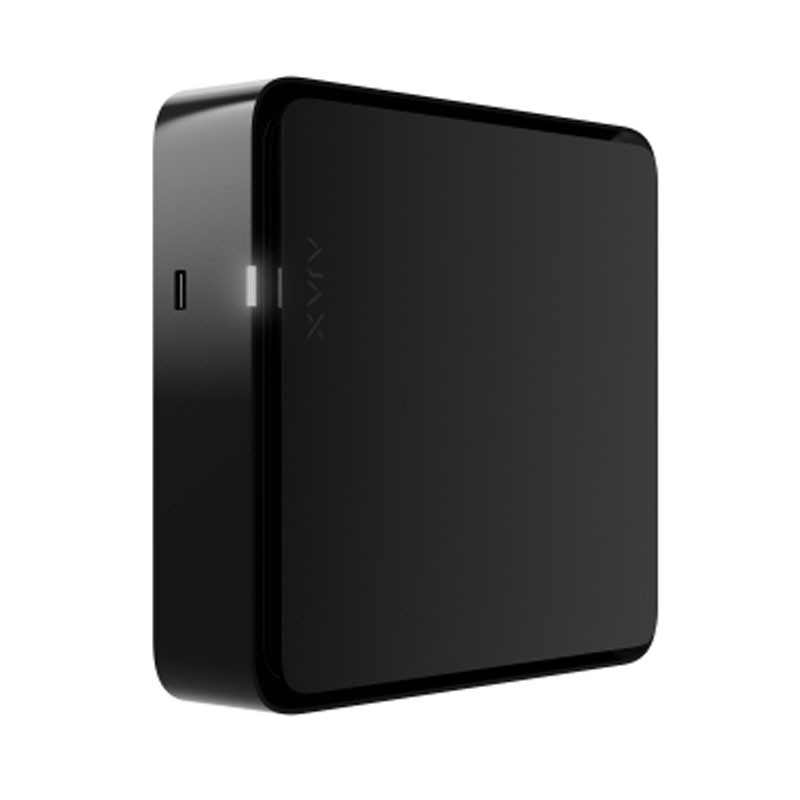

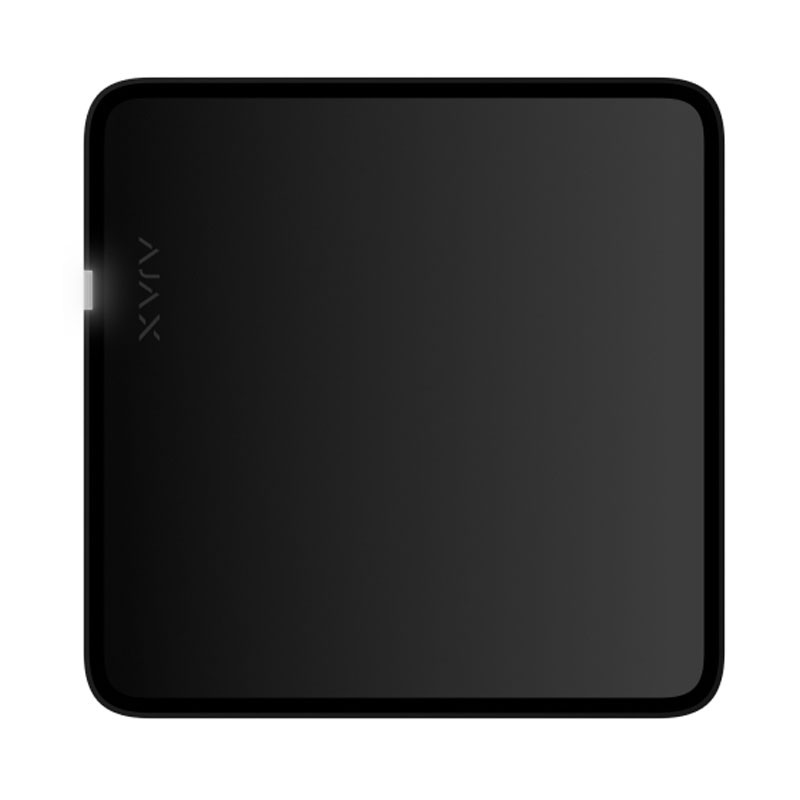

Ajax Network Video Recorder NVR HAC 8 channels 4K black
08T 134499
4823114076558
Ajax NVR HAC 8 channels 4K black is the network video recorder with HDMI output and integrated VMS to manage Ajax and third-party cameras. It supports H.265/H.264/JetSparrow, motion detection and AI, videowall via app, and recording on SATA HDD up to 16 TB.
-
Channels: 8
-
Colour: black
-
Recording resolutions: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
-
Resolution limit per channel: long or short side ≤ 4096 px
-
HDMI output: 1920×1080, 1600×1200, 1280×1024, 1280×720
-
Codec: H.265 / H.264 / JetSparrow
-
Decoding capacity (indicative): 1×8MP; 3×5MP; 4×4MP; 4×1080p; 8×720p; 8×1024×576
-
Motion detection: Ajax cameras 8 channels; NVR 8 channels (selectable in app)
-
AI objects: Ajax cameras up to 8 channels
-
Storage: 1× SATA for HDD 3.5” up to 16 TB (not included)
-
Network: 1× RJ-45 Ethernet auto-adaptive 10/100 Mbps
-
USB: 2× USB 2.0 Type-A (rear + side)
-
Hardware plus: LED indicator, disk lock, silent active cooling
-
VMS functions: local management, monitoring via Ajax app, customizable videowall
€261.27
Out of stock
Incoming
Frequently bought together
Ajax NVR HAC 8 channels: simple, local, and always accessible video surveillance
The Ajax NVR HAC 8-channel 4K recorder is designed to transform a camera system into a complete, stable, and easy-to-use video management system. After the initial setup, the NVR continues to work locally: you can view streams on a screen connected to the HDMI port, even without an Internet connection, a valuable feature for remote sites, warehouses, or businesses where operational continuity is essential.
At the same time, the Ajax apps for smartphones and desktops allow access to footage and manage settings and permissions wherever you are, with a consistent and controlled experience.
The HAC model differs from the previous NVR model for:
- Integrated local video management system
- Monitoring via Ajax apps for smartphones and desktops
- HDMI port to connect a screen
- Two USB ports for a keyboard, mouse, or flash drive
- Silent active cooling
8 channels 4K: wide compatibility with resolutions up to 8MP
The NVR supports many recording resolutions (from 8MP to lighter formats like 720p or 1024×576). The decoding capacity for viewing/management varies depending on the resolution:
- 1 channel at 8MP
- 3 channels at 5MP
- 4 channels at 4MP
- up to 8 channels at lighter resolutions (e.g., 720p or 1024×576)
Additionally, the resolution for a single channel cannot exceed 4096 pixels on the long or short side: a useful detail for verifying compatibility with very particular cameras.
Advanced codecs: H.265, H.264, and JetSparrow
Compatibility with H.265 and H.264 allows balancing quality, bandwidth, and disk space. The addition of the JetSparrow format expands options in Ajax ecosystems, maintaining a smooth experience and efficient archive, especially when managing multiple streams simultaneously.
Motion detection and AI: smarter events, fewer false alarms
Ajax NVR HAC integrates software for motion detection: the image can be analyzed by the NVR's algorithms or by the camera, selecting the option directly in the Ajax app. For object detection with AI, support is provided on 8 channels with Ajax cameras, so you can get more targeted alerts (and a "cleaner" archive), reducing unnecessary recordings and simplifying event searches.
HDMI + USB: a complete control station
With 1 HDMI output and 2 USB 2.0 ports, the NVR can become a true monitoring station: connect monitor, mouse, and keyboard and manage everything on-site. It is the ideal solution for receptions, concierge desks, security offices, and retail points, where immediate and continuous viewing is needed.
Storage up to 16 TB: space for extended recordings
The 1× SATA slot supports a 3.5” drive up to 16 TB (not included). This capacity allows sizing the archive based on the number of cameras, resolution, and type of recording (continuous or event-based), offering flexibility for both small systems and more structured installations.
Silent active cooling: 24/7 reliability
For a device that works 24/7, thermal management is essential. Ajax NVR HAC integrates silent active cooling, designed to maintain stability and longevity over time without introducing annoying noises in environments like offices or reception areas.
| VIDEO | |
|---|---|
| Video inputs | 8 channels |
| Recording resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI output resolution | 1920×1080, 1600×1200, 1280×1024, 1280×720 px |
| Live/playback resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| DECODING | |
| Format | H.265, H.264, JetSparrow |
| Decoding capacity | 1×8MP 3×5MP 4×4MP 4×1080p 8×720p 8×1024×576 |
| VIEWING | |
| Live window layout | 1, 4, 9, 16, 5+1, 7+1, custom up to 10×10 |
| Synchronous playback | 8 channels |
| INTELLIGENT VIDEO ANALYSIS | |
| Motion detection (Ajax cameras) | 8 channels |
| Motion detection (NVR) | 8 channels |
| AI object detection | 8 channels (Ajax cameras) |
| INTERFACES | |
| Hard disk | 1 × SATA (up to 16 TB, 3.5”) – not included |
| Network | 1 × RJ45 10/100 Mbps |
| USB | 2 × USB 2.0 (1 rear, 1 side) |
| NETWORK | |
| Input bandwidth | up to 80 Mbps |
| Output bandwidth | up to 40 Mbps |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| Interoperability | ONVIF (Profile S/T) |
| MAIN FEATURES | |
| Supported devices | Ajax cameras ONVIF / RTSP IP cameras |
| Video management system | Integrated videowall Smart event filters Interactive timeline Ajax alarm visual verification |
| POWER SUPPLY | |
| Power supply voltage | 110–240 V AC, 50/60 Hz, 0.6 A |
| Consumption | up to 24 W |
| Clock battery | CR2032, 3 V |
| ENCLOSURE | |
| Dimensions | 212 × 212 × 64 mm |
| Weight | 782 g (without HDD) |
| Operating temperature | 0 °C ÷ +40 °C |
| Maximum humidity | 75% |
| Protection rating | IP20 |
| PACKAGE CONTENTS | |
| Equipment | NVR HAC (8 channels) SmartBracket Power cable Ethernet cable Installation kit Quick guide |
Il prezzo più basso del mercato. Il prodotto funziona perfettamente
Telecamera e NVR Ajax molto buoni.Avendo già acquistato altri prodotti della stessa marca conoscevo l'ottima qualità.
Do a excellent job. Ajax NVR works perfect with Ajax alarm and is very easy to use.
Data sheet
- Colour: Black
- Type: Video recorders
- System: IP
- Resolution: 8MP (4K)
- Channels: 8
