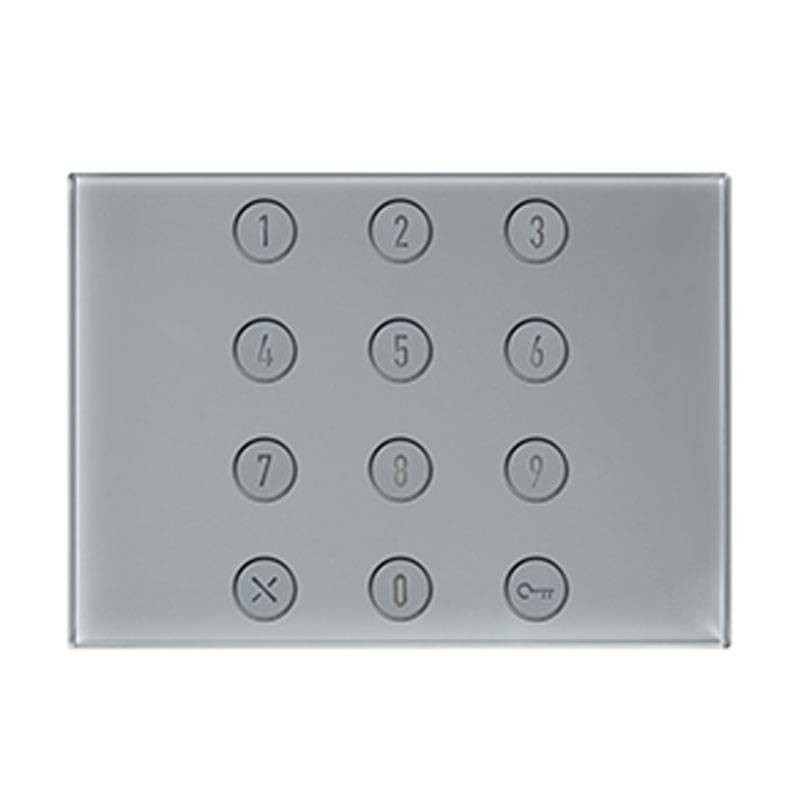

Urmet Alpha Door Opener Module Numerical Keypad colour Grey 1168/46G
UTD 1168/46G
8021156074884
Urmet Alpha Numeric Keypad Door Opener Module with the following features:
- Complete with screen-printed thermoplastic front panel.
- Keys are equipped with LEDs for backlighting
- Connection via flat cable supplied with frames
- Dimensions 124 x 90 mm
- Colour: Grey
The Alpha numeric keypad module is used together with the 1168/1 display module and an audio or audio/video door station to compose a digital call button panel. Connection to other modules by flat cable supplied.
Urmet Alpha Door Opener Module Numerical Keypad colour Grey 1168/46G
€211.46
€211.46
Tax included
Tax included
Pay in installments with Klarna
Items Available: 5
Frequently bought together
The numeric keypad module is a push-button panel device that can be used in stand-alone mode (stand alone) or implemented in 2Voice and Ipercom systems. In stand-alone (stand-alone) mode, the device has the function of door opener with numeric code, while if it is installed with the 1168/1 display module it assumes the function of numeric keypad for call module.
The main features are presented below:
- Ability to manage two inputs with 2 relay door opener contacts, which can be operated independently by each of the programmed codes
- 22 programmable user codes
- Time slot management via input H
- Programmable door opener activation duration for each of the two relays
- Ability to program the two relays for monostable or bistable activation
- Activation of relays by 2 normally open keys connected to inputs A1 and A2 (hall keys)
- 12 LED-backlit keys
- Audible feedback via buzzer
There are no reviews
Data sheet
- Type:
- Door stations/Outdoor Intercoms
- Components:
- Modules
