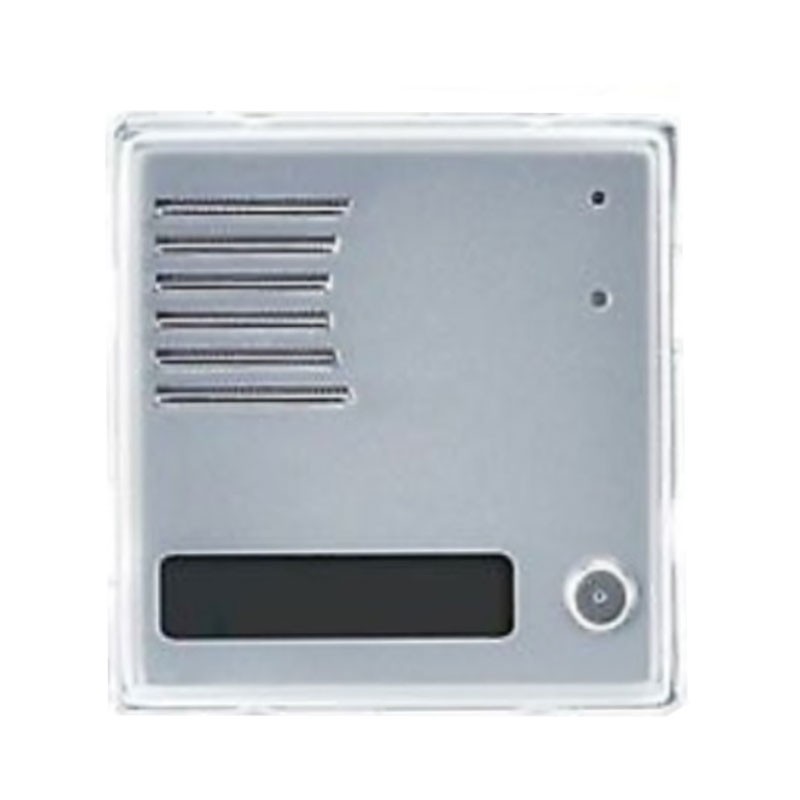

Urmet module SINTHESI S2 1P.C/P.EST.TEL 1148/1
UTD 1148/1
8021156057276
Urmet Sinthesi S2 1-button base module with telephone door station, with the following features:
- Tag size (W x H): 67 x 12.5 mm
- Front treatment: anodized aluminum
- Module size (W x H): 90 x 90 mm
- Degree of protection: IP42
- Min. supply voltage/current: 18Vdc/18mA
- Lighting power supply: 12Vdc/10-12Vac
- Max lighting current: 300mA
Urmet module SINTHESI S2 1P.C/P.EST.TEL 1148/1
€224.10
€224.10
Tax included
Tax included
Pay in installments with Klarna
Items Available: 6
The device can manage up to 99 keys, each call key can be associated with 2 numbers (day/night) with 24 digits, password programming access, decadic and multifrequency dialing (DTMF), auto-on, 2 independent actuator relays that can be configured for different applications, 6 door opener codes for each relay, speaker and microphone volume adjustment, two codes to operate outputs via telephone by 1 pulse and two codes by 2 pulses, outputs configurable in 8 different modes of operation (e.g. lighting, sequential opening, for additional doorbell, gradual door opening), two two-digit codes to end the conversation, automatic response to incoming call with variable number of rings, possibility to configure the time before hanging up in case a new selection is made, two codes to deactivate the intercom system by phone, self-powering, tag lighting from external power supply, electronic volume setting and adjustment without the need to open the front panel, easy HW programming via DIP switch, programming from telephone via DTMF tones (also remotely, with phone call to Sinthesi S2 module) and from PC via dedicated software and USB interface (1148/9).
There are no reviews
Data sheet
- Type:
- Door stations/Outdoor Intercoms
- Components:
- Modules
