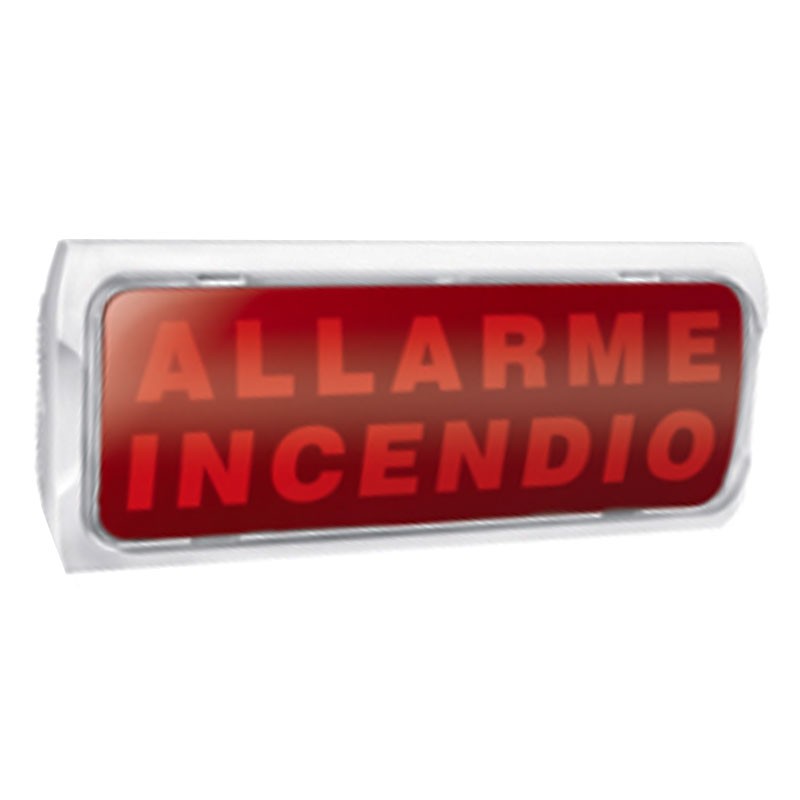

Urmet acoustic optical license plate addressed on firefighting Loop 1043/254
UTD 1043/254
8021156058747
Urmet optical acoustic license plate addressed on fire loop, with the following features:
- Operating voltage: 20Vdc (-15%, +10%) modulated - detection line
- Absorption at rest: 250 micro A @ 20Vdc
- Absorption in alarm: 2.5 mA @ 20Vdc
- Sound power at 1 m: 78 dB
- Built-in isolator module
- Selectable acoustic tones
- Selectable sound emission volume
- Configuration from central unit or via dip
- Weight: 650 grams
- Dimensions: 360 (W) x 150 (H) x 70 (D) mm
- EN54 part 3 certification
- DoP Number 1293-CPR-0470
€84.11
Items Available: 126
: 40
It is compatible with 500-series digital line control panels (codes 1043/550, /560, /570), connects directly to the loop and does not require external power supplies. It assumes an address.
Data sheet
- Type: Optical acoustic panels
