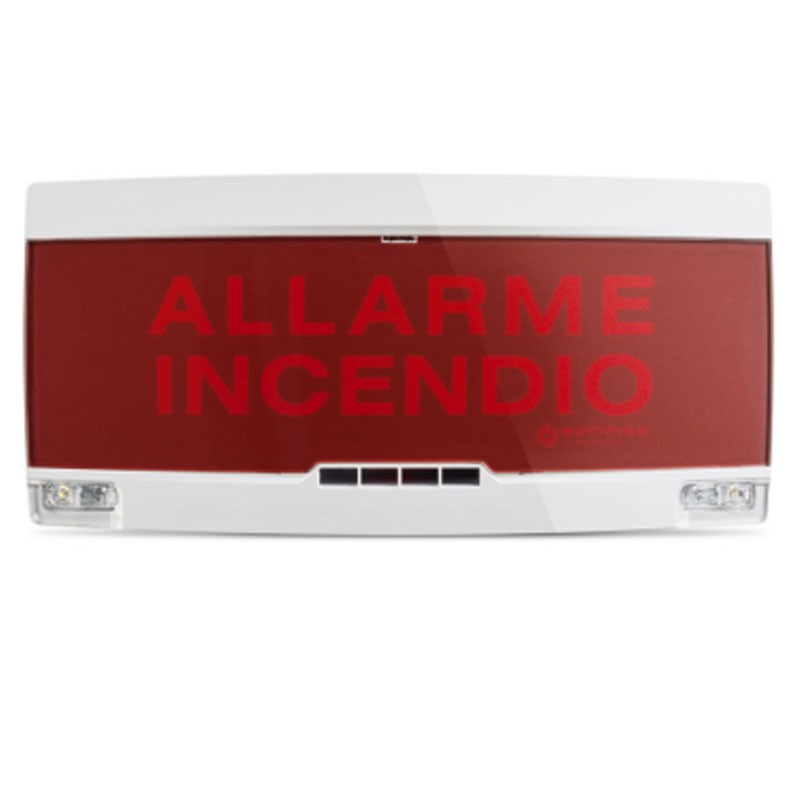

Notifier PAN1-PLUS-W Conventional Fire Fighting Acoustic Optical Panel
NOT PAN1-PLUS-W
Notifier conventional optical/acoustic full panel, with the following features:
- Rated supply voltage: 24VDC (20÷30VDC)
- Power: 1.7W @24V; 2.4 (DIP7 OFF)
- Current: 100mA average, 140mA peak, 70/90mA at low consumption
- With Flash: 0.6Hz frequency
- Colors: matte white with red film and red lettering
- Operating temperature: -10°C to +55°C
- Certificate: 1293 - CPR - 0597
- Standards: EN54-3:2001 + A1:2002 + A2:2006, EN54-23:2010, EN 54.3/23
- Cover volume: 11 (W) x 11 (D) x 5 (H)
- Wall-mounting or flush-mounting device
- For indoor use

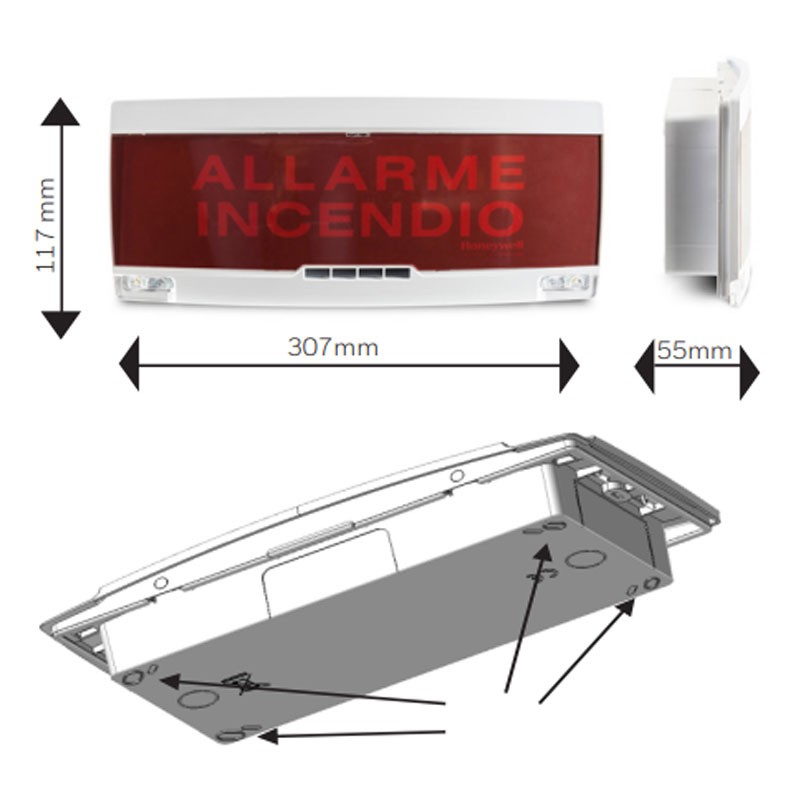

- Dimensions: 307 x 117 x 55 mm
- Weight: 539 grams
- IP41 degree of protection
- Indoor siren: intermittent sound type with frequency of 1983Hz
- Main tone: 1 pulsed sound at 1.2Hz
- Available tones: 1 modulated, 1 pulsed, 1 bitonal, 1 continuous
€102.70
Items Available: 193
: 37
PAN1-PLUS is an indoor optical-acoustic alarm warning panel, particularly suitable for all types of Fire detection systems in offices, hotels, shopping malls, hospitals and industrial environments.
The Panel is certified in accordance with EN 54.3 and EN 54.23 and complies with TR 11607, "Guideline for acoustic and optical alarms" where, for dormitories and hotels the predominant frequency is specified to be between 0.5 Hz and 1Khz.
PAN1-PLUS is constructed of non-combustible and flame-propagating materials. Films with illuminated inscriptions are made of slow-flammable PMMA (polymethyl methacrylate). The inscriptions, on a red or gray background, are highlighted at active panel
There are no reviews
Data sheet
- Type: Optical acoustic panels
