Notifier Acoustic Optical Panel EN54-3/23 PAN1-PLUS-Y
NOT PAN1-PLUS-Y

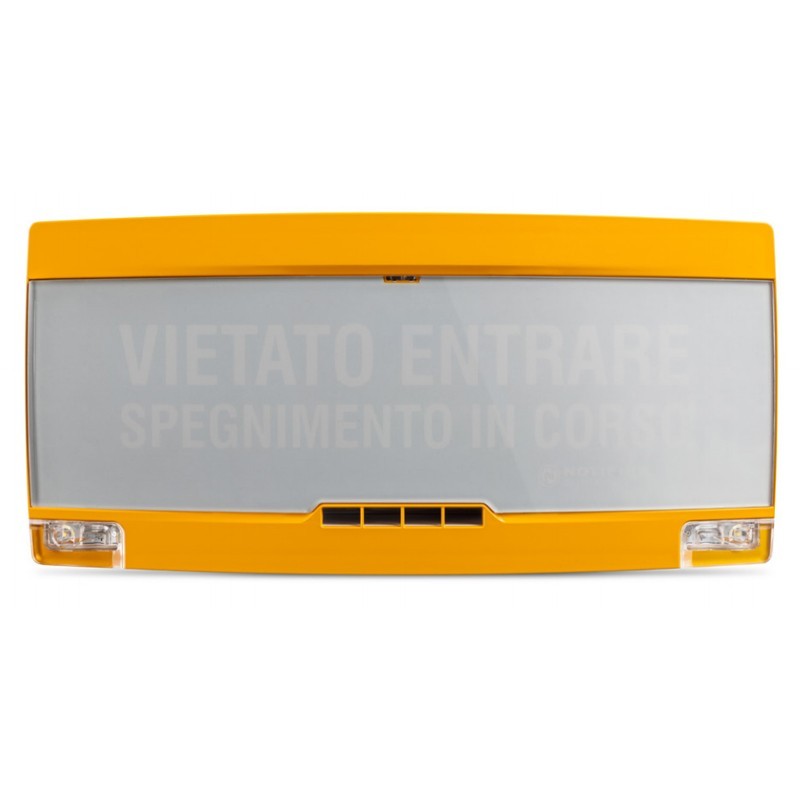

Conventional panel complete Notifier EN 54.3/23 YELLOW OPAQUE off with two films of the series with a Grey background with white lettering: EVACUATE THE premises and FORBIDDEN to ENTER the / SHUTDOWN is IN PROGRESS.
€109.76
Items Available: 55
: 16
PAN1-PLUS is a panel with optical-audible interior warning alarm, particularly suitable for all types of systems of Fire detection in offices, hotels, shopping malls, hospitals and industrial environments. The Panel is certified in compliance with EN 54.3 and EN 54.23, and is compliant to TR 11607, guideline for acoustic devices and optical, is where the dorms and the hotels is specified as the frequency of the predominant that it should be between 0.5 Hz and 1Khz.
PAN1-PLUS is built with non-combustible materials and flame retardant. The films with inscription-lit PMMA (polymethyl methacrylate) to slow flash. The lettering, on red background or grey, are highlighted in the active panel.
Features:
- Operating temperature: -10°C to +55°C
- Certificate: 1293 - CPR - 0597
- Standards: EN54-3:2001 + A1:2002 + A2:2006, EN54-23:2010
- Volume of coverage: 11 (L) x 11 (w) x 5 (A)
- Category: Device, wall mount or recessed
- Type: A, interior
- Size: 307 x 117 x 55 mm
- Weight: 539 gr
- IP grade: 41C
- Rated supply voltage: 24vdc (20÷30vdc)
- Power: 1.7 W @24V; 2,4 (DIP7 OFF)
- Current: 100mA average, 140mA peak), 70/90mA low consumption
- FLASH: frequency 0.6 Hz
- INTERNAL sounder: sound is intermittent with the frequency of 1983Hz
- Master key: 1 sound pulsed at 1.2 Hz
- Shades available: 1-modulated, 1 pulse, 1-tone, 1 continues.
There are no reviews
Data sheet
- Type: Optical acoustic panels
