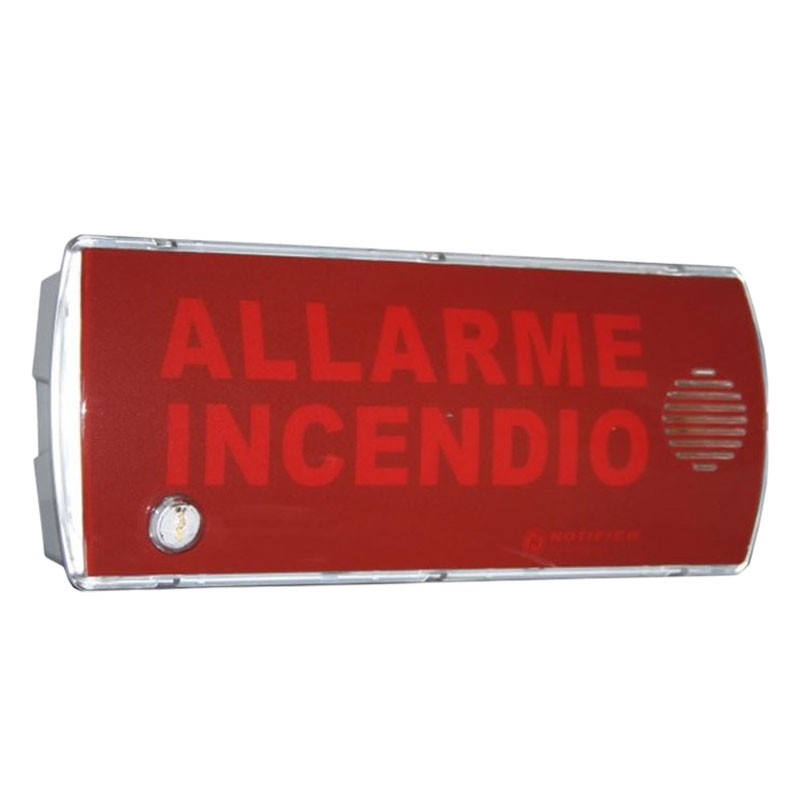

Notifier Acoustic Panel EN54-3/23 3.6W 24V PAN1-EU
NOT PAN1-EU
9000004924747
Notifier Optical Acoustic Panel is designed for fire detection systems, combining acoustic and optical signaling. Made of noncombustible materials, it ensures high safety and reliability, with the following features:
-
Certification: Compliant with EN54-3 and EN54-23 standards.
-
Dual signaling: acoustic buzzer + optical indication
-
Safe materials: non-combustible and non-propagating
-
Effective Coverage: Volume 4x9 meters (HxL)
-
Synchronizable: Avoids random flashing between multiple devices
-
IP41C protection: Suitable for indoor installation
€121.12
Items Available: 21
: 19
Notifier panel: safe and durable fire signaling
Clear and immediate signaling for fire safety
Designed to ensure effective alarm signaling by combining a light signal with a 3000Hz intermittent audible warning. Optical signaling is activated on a red background, making the message immediately visible in an emergency.
Durable materials and certified safety
Constructed from ABS or V0, the panel is noncombustible and designed to meet EN54-3 and EN54-23 safety standards. In addition, slow-flammable PMMA lettering ensures optimal visibility without compromising safety.
Notifier panel: extended coverage and secure installation
Wide coverage and multiple synchronization
The device is rated W-4-9, which means it covers a volume of 4 meters high and 9 meters wide. In addition, it can be synchronized with other panels in the same series to avoid random flashes and ensure uniform alerting throughout the environment.
Practical installation and advanced protection
The Notifier Panel is designed for wall installation and features reverse polarity protection. Its compact design and the ability to set the flash frequency to 0.6Hz or 1.1Hz make it versatile for various security needs.
Ideal applications
-
Fire detection systems in public and private buildings
-
Businesses, hospitals, schools and shopping centers
-
Indoor environments where effective visual and acoustic signaling is needed
Technical Specifications Notifier Panel
General Data
| Feature | Value |
|---|---|
| Certifications | EN54-3 and EN54-23 |
| Type | Wall mounting device |
| Category | A, for indoor use |
Electrical Specifications
| Feature | Value |
|---|---|
| Rated voltage | 24VDC |
| Power consumption | 3.6W at 24V |
| Peak current | 150mA (DIP1=OFF 100mA; DIP1=ON 110mA) |
Functional Characteristics
| Feature | Value |
|---|---|
| Flash | Frequency adjustable to 0.6Hz or 1.1Hz |
| Buzzer | Intermittent sound at 3000Hz |
| Volume of coverage | 4x9 meters (H x W) |
Environmental Characteristics
| Feature | Value |
|---|---|
| Degree of protection | IP41C |
| Operating temperature | -10/+55 degrees |
There are no reviews
Data sheet
- Type: Optical acoustic panels
