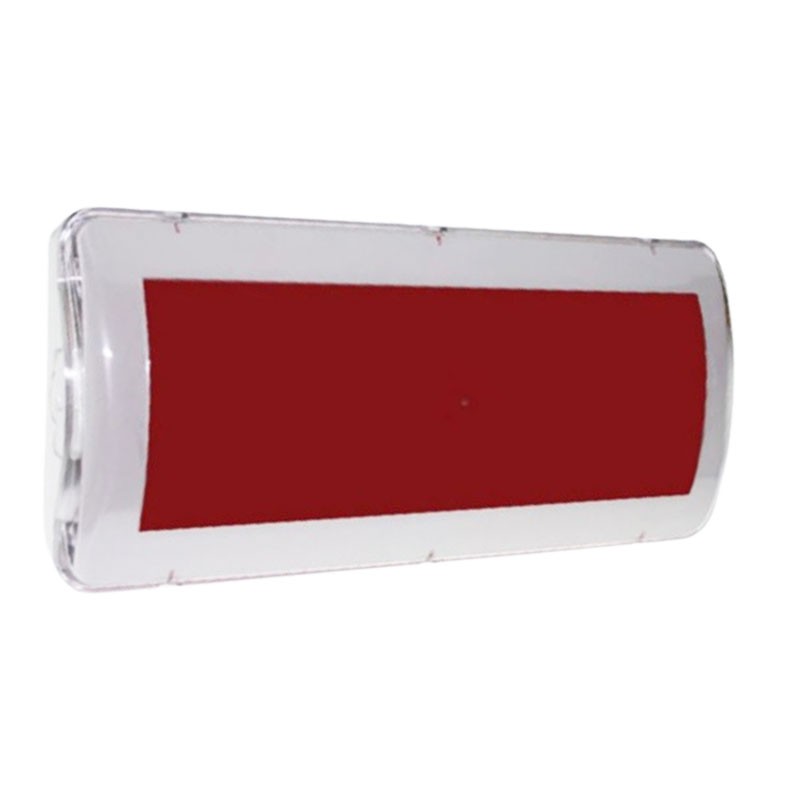

Siemens Acoustic Optical Panel Firefighting Without Film IT2AVDFJCPD
SIE IT2AVDFJCPD
Siemens DOA FJ/CPD acoustic fire alarm optical panel:
- 24V power supply
- Low consumption
- EN 54-3 and EN 54-23 certification
- Working voltage: De 10.8 to 28 VDC
- Consumption in alarm at 24 V: 110 mA
- Volume at 1 m: De 81 to 87 dB
- Frequency: 30/50 Hz
- Connection cable: 2 x 1.5 mm² braided
- Working temperature: -10ºC to 55ºC
- Relative humidity: 95% non-condensing
- Degree of protection: IP21C
- Dimensions: 320mm x 140mm x 68mm
- Material: ABS and polycarbonate
DOA series light panels are light and sound signaling devices by acoustic actuation.
Because of their low power consumption and high visibility, they can inform the user of the actions of fire extinguishing, fire detection and toxic gas detection (carbon monoxide) systems.
€52.70
Items Available: 13
: 12
There are no reviews
Data sheet
- Type: Optical acoustic panels
