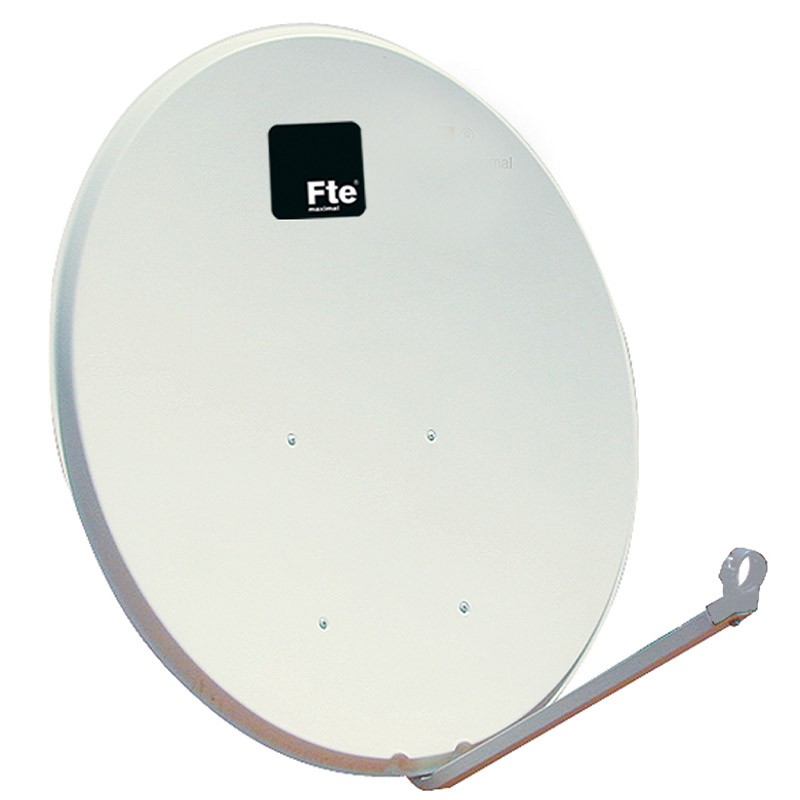

FTE Aluminium Parabolic Antenna 85 cm Grey OS85AL-1


FTE OS85AL-1 8436023598903

Parabolic antenna FTE OFF SET made of aluminum and painted with polyester paints, the composition of these two materials prevent corrosion.

Request info about this product

FTE Aluminium Parabolic Antenna 85 cm Grey OS85AL-1

€104.53
€104.53

FTE Aluminium Parabolic Antenna 85 cm Grey OS85AL-1

€104.53
Tax included
klarna Pay in installments with Klarna
qty

FTE Aluminium Parabolic Antenna 85 cm Grey OS85AL-1

€104.53

Buy it within and receive it from Thursday, 30 May
Two-year warranty
Secure Payment
Easy return within 14 days

Strengths

  • Aluminium reflector painted in anti-corrosion polyester
  • Inside all fixing accessories
  • AZ/EL bracket is made in one single piece with boxed structure, which gives the antenna greater rigidity
  • AZ/EL bracket in pre-galvanised steel with double clamp for pole fixing
  • LNB support in steel with 40 mm plastic feed holder
  • 13 mm stainless steel screws.

Applications:

  • Can be used for satellite reception in medium/large installations.

Technical Data:

  • Working frequency - GHz 10,7 ÷ 12,75
  • Efficiency - % > 70
  • Gain @ 10.7 GHz - dB 36.6
  • Gain @ 11.7 GHz - dB 37.9
  • Gain @ 12,75 GHz - dB 38,5
  • Dimensions - mm 875 x 825
  • F/D ratio 0,64
  • Diameter LNB holder - mm 40
  • Angle of elevation - ° 15° ÷ 65°
  • Diameter pole mount - mm 30 ÷ 60
  • Reflector color Epoxi-Polyester / RAL 7035 light gray
  • Reflector material / thickness - mm aluminium / 1
  • Material / thickness of AZ/EL bracket - mm Hot-dip galvanized steel / 2
  • Wind resistance @ 130 km/h - N 530
  • Weight reflector + bracket - kg 8
  • Not including illuminator to be added.

Data sheet

Type:
Parables
Model:
85 cm
