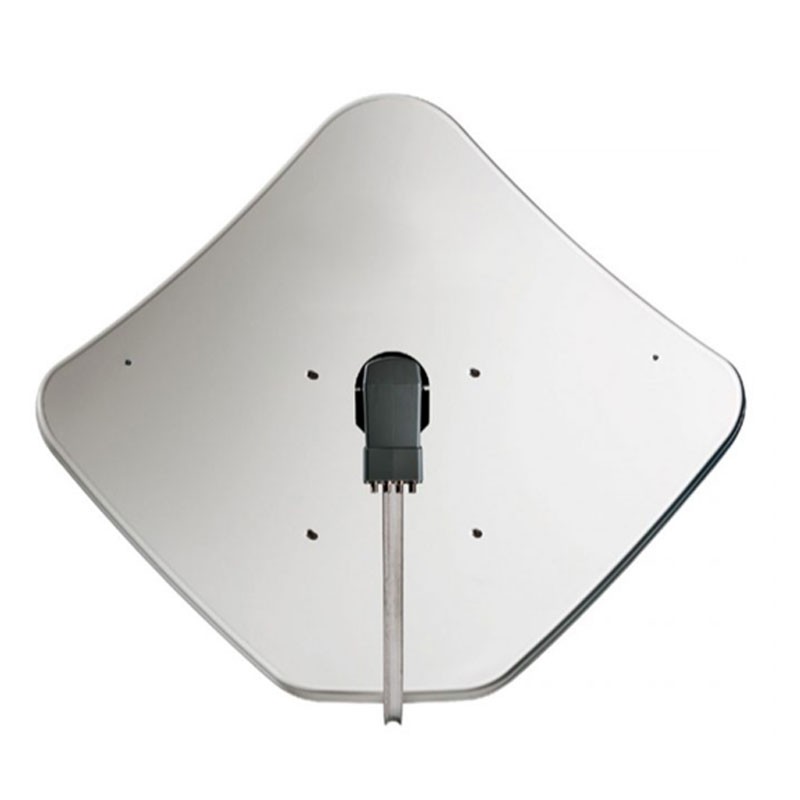

Fracarro Parabolic antenna diameter 69 in steel white 211104
FRA 211104
8016978000487
OFFSET DIGIT-A satellite dish, Fracarro, with the following characteristics:
- Working frequency: GHz 10.7 - 12.75
- Dimensions: Ø mm - 624 x 624
- OFFSET angle 22.3
- Colour: white
- Disc material: steel
- Disc support material: steel - treated aluminum/zinc
Fracarro Parabolic antenna diameter 69 in steel white 211104
€64.58
€64.58
Tax included
Tax included
Pay in installments with Klarna
Items Available: 2
Features:
- Fracarro series
- Efficiency: ⋝70%.
- Gain: 10.95 GHz dB 36.5
- Cross polarization on axis dB ˃37
- First side lobe dB ˂-32
- Noise temperature 30° elevation k° 40
- Equivalent F/D ratio 0.7
- Beam width 3dB mm 3
- Converter attachment mm: 23-28; 40; 60
- Elevation angle Tilt maximum 60 °
- Wind resistance 150 Km/h Kg: 53
- Equivalent diameter: 68
Advantages:
- Maximum reception quality for all high definition programmes
- High performance and excellent isolation from cross-polarisation
Data sheet
- Type:
- Parables
- Model:
- 69 cm
