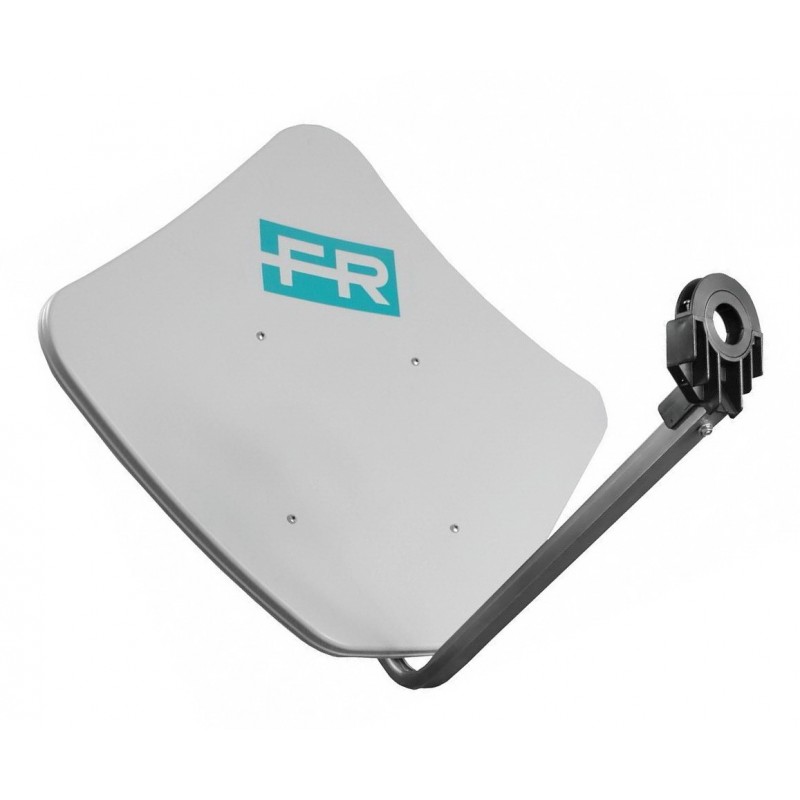

Fracarro Penta 85 satellite dish white aluminium diameter 85 211201


FRA 211201 8016978000111

Fracarro Penta 85 satellite dish white aluminium diameter 85 with mounting kit for fixed attachment to pole and screws included.

Request info about this product

Fracarro Penta 85 satellite dish white aluminium diameter 85 211201

€86.38
€86.38

Fracarro Penta 85 satellite dish white aluminium diameter 85 211201

€86.38
Tax included
klarna Pay in installments with Klarna
qty

Fracarro Penta 85 satellite dish white aluminium diameter 85 211201

€86.38

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

It adopts an original rhomboid shape which is the result of an in-depth technical and industrial analysis among 19 possible design alternatives.

This shape guarantees high performance in terms of protection from cross-polar isofrequency interfering signals coming from the same satellite and protection from co- and cross-polar interfering signals coming from satellites positioned at ±3° degrees.

This makes the Penta dish particularly suitable for dual feed systems, as demonstrated by the numerous tests to which it has been subjected.

Steel or aluminum offset dishes with diameter equivalent to 85cm

Features:

  • Working frequency: 10.7 - 12.75 GHz
  • Dimensions: Ø 775 x 775 mm
  • OFFSET angle: 22.1°.
  • Efficiency: ⋝70%.
  • Gain: 10.95 GHz 39 dB
  • Cross polarization on axis: ˃38 dB
  • First side lobe: ˂-34 dB
  • Noise temperature: 30° elevation 40 k°
  • Equivalent F/D ratio: 0.7
  • Beam width: 2.2 3dB
  • Converter mount: 23-28; 40; 60 mm
  • Elevation angle: 60° maximum tilt
  • Disc material: Aluminium
  • Disc holder material: Steel
  • Wind resistance:150 Km/h81 Kg
  • Equivalent diameter: 85
  • Colour: White
  • Support: dual feed 6°DFP85 cod. 211001
  • Pole attachment mm 35-80

Data sheet

Type:
Parables
Model:
85 cm
