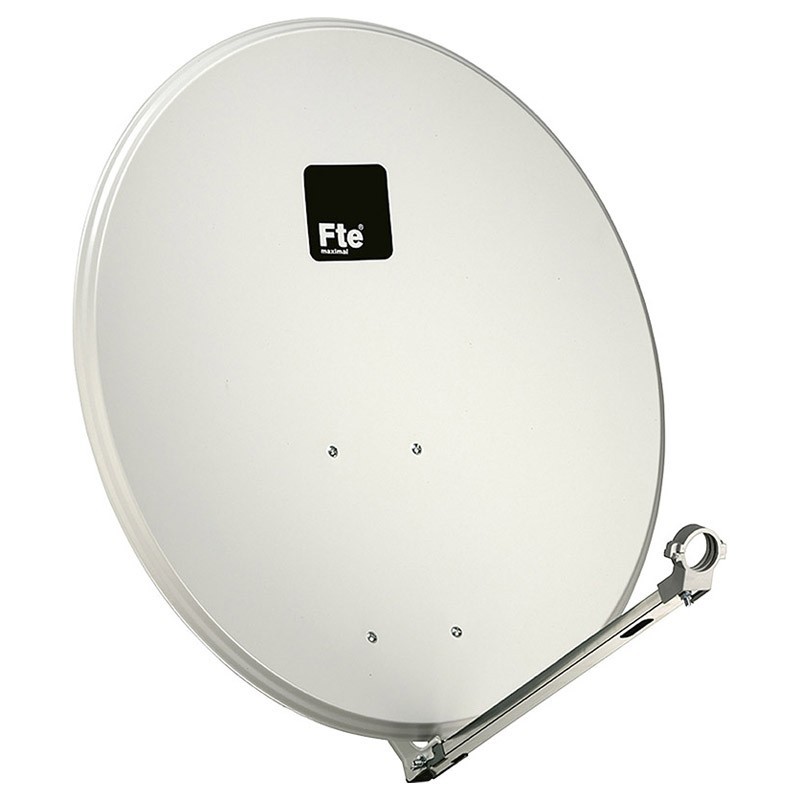

Antenna FTE steel dish diameter 80 grey OR80SB-PL
FTE OR80SB-PL
8436023597777
Parabolic antenna FTE OR80SB-PL OFF SET in pre-galvanized steel and painted with polyester paints, the composition of these two materials prevent corrosion. Inside all fixing accessories.
![Antenna FTE steel dish diameter 80 grey OR80SB-PL Antenna FTE steel dish diameter 80 grey OR80SB-PL](https://www.elettronew.com/35821-large_default/antenna-fte-steel-dish-diameter-80-grey-or80sb-pl.jpg)
Antenna FTE steel dish diameter 80 grey OR80SB-PL
€39.22
€39.22
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 52
Strong points:
- Reflector in pre-galvanized steel painted in anti-corrosion polyester
- Inside all fixing accessories
- The AZ/EL bracket is made in one piece with boxed structure, which gives the antenna greater rigidity.
Applications:
- Can be used for satellite reception in small/medium sized installations.
Features:
- Working frequency - GHz 10,7 ÷ 12,75
- Efficiency - % > 70
- Gain @ 10.7 GHz - dB 36
- Gain @ 11.7 GHz - dB 37.5
- Gain @ 12,75 GHz - dB 38,1
- Dimensions - mm 800 x 740
- F/D ratio 0,64
- Diameter support LNB - mm 40
- Angle of elevation - ° 16 ° to 56 °
- Diameter pole mount - mm 30 ÷ 60
- Reflector color Epoxi-Polyester / RAL 7035 light gray
- Reflector material / thickness - mm Pre-galvanized steel / 1
- Material / thickness of AZ/EL bracket - mm Hot-dip galvanized steel / 1,25
- Wind resistance @ 130 km/h - N 550
- Weight reflector + bracket - kg 5,5.
Data sheet
- Type:
- Parables
- Model:
- 80 cm
