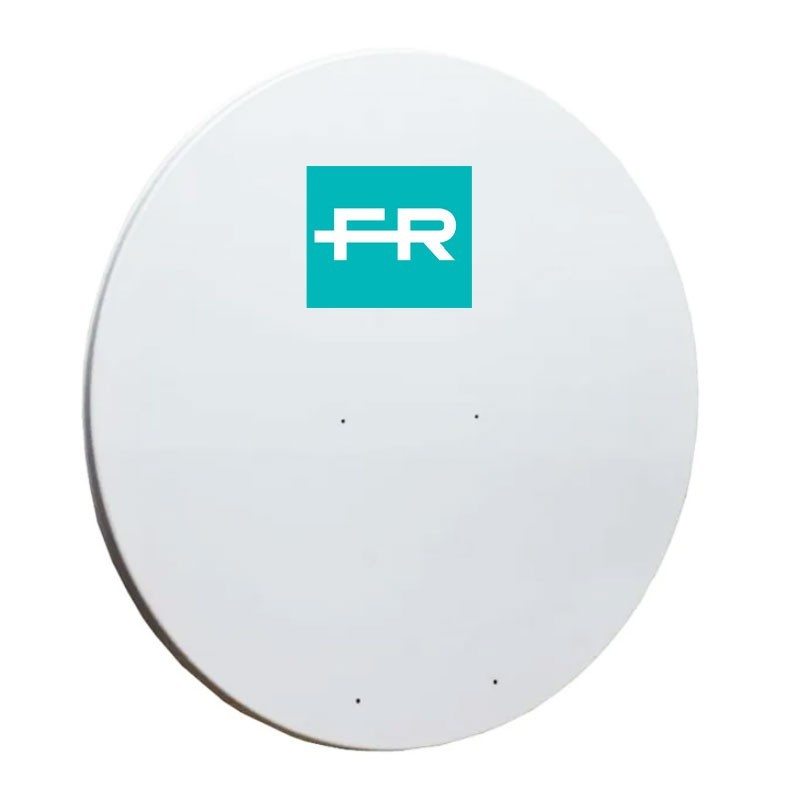

Fracarro Parabolic antenna steel white 60 cm diameter 280610
FRA 280610
8016978008612
The Fracarro 60-cm Parabolic antenna is a compact and durable solution for receiving high-definition satellite TV signals. Made with an aluminum reflector and steel support, it provides excellent structural rigidity and stable reception even in unfavorable weather conditions. Durable white paint finish ensures protection from external agents and long service life.
- Reflector diameter: 60 cm
- Reflector material: aluminum
- Color: White
- Disc holder: Sturdy steel
- Dish Type: Offset
- Optimized reception quality for HD programs
- Compact, ideal for balconies and installations in small spaces
Mounting kit ZNO60AC (P/N 289279) to be ordered separately, price is for disc only.
€17.64
Items Available: 46
: 13
Frequently bought together
Fracarro 60 cm Parabolic antenna: Maximum efficiency for satellite reception
Thanks to its offset and compact design, the 60 cm Fracarro dish guarantees excellent signal reception quality even with less than optimal installation conditions. Ideal for those who want to receive high-definition satellite channels with a discreet yet high-performance dish.
Solid construction and versatile installation
The combination of aluminum for the antenna and steel for the stand makes this dish lightweight yet extremely durable, suitable for both residential and professional installations. The stand provides stability, while the ZNO60AC mounting kit (not included) allows easy and secure attachment.
Weather-resistant
The dish is painted with anti-corrosion treatment, which protects the dish from rain, wind, sun and frost, while maintaining reception capacity and aesthetic integrity over time.
Technical Characteristics - Fracarro ZNO60AC Parabolic antenna
| Parameter | Value |
|---|---|
| Working frequency | 10700-12750 MHz |
| Gain at 10.7 GHz | 34.3 dB |
| Gain at 11.7 GHz | 35.1 dB |
| Gain at 12.7 GHz | 35.9 dB |
| Efficiency | ≥ 69% |
| Cross axis polarization | >24 dB |
| First side lobe | < -21 dB |
| Noise temperature (30° elevation) | 48 °K |
| Equivalent f/d ratio | 0.66 |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Dimensions | 63.2 × 58.3 cm |
| Diameter | 60 cm |
| Offset angle | 21° |
| Elevation angle | 0-90° |
| LNB connection | 40 mm |
| Pole attachment | 20-50 mm |
| Wind resistance (120 km/h) | 729 N/m² |
| Wind force (equivalent weight) | 34 kg (333.4 N) |
Materials and Finish
| Component | Material / Color |
|---|---|
| Disc | Steel |
| Disc holder | Steel |
| Color | Light gray |
Mounting Kit to be purchased separately
| Component | Detail |
|---|---|
| Kit code | 289279 |
| Kit model | ZNO60AC |
There are no reviews
Data sheet
- Type: Parabolic antennas
- Model: 60 cm
