Fracarro LP45HV antenna 5G 4G LTE UHF band 14 plus 14 channels 216259
FRA 216259
8016978099054

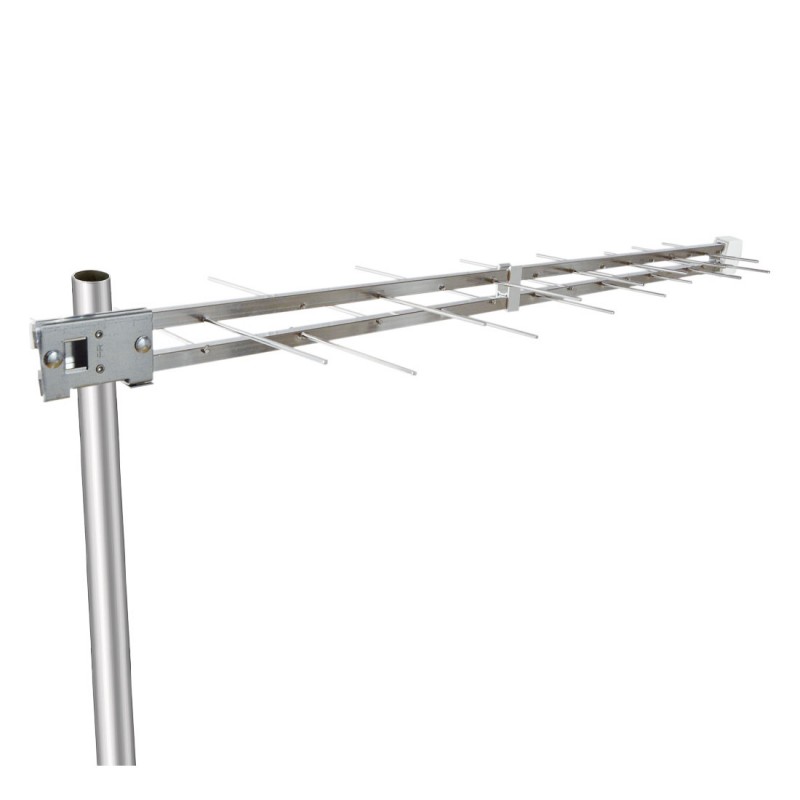

Fracarro LP45HV 5G 4G LTE band UHF 14 plus 14 channel pre-assembled periodic log antenna with the following characteristics:
- Elements No.: 14+14
- Band: UHF
- Channels: E21-E48
- Bandwidth MHz: 470-694
- Gain: dBi 11.5
Featuring filtering for 5G and 4G LTE interferers and extremely easy installation due to the clamp connector.
€15.09
Items Available: 18
: 10
Features:
- Fracarro series
- Forward-backward ratio: dB 36
- Reflection loss: dB -13
- Beam width (-3dB): ±28°
- Wind resistance 120Km/h 729N/m²: Kg (N) 3.0 (29.4)
- Connector: Clamp
- Impedance Ohm: 75
- Maximum pole attachment diameter (Ø) mm: 60
- Dimensions: cm: 96 x 32
- Weight 1.04 Kg
Accessories:
- Horizontal polarization: Included
- Horizontal zenith adjustment: PV10 (210011)
- Vertical polarization: Included
- Vertical zenith adjustment: PV10 (210011)
- Auxiliary cradle: N.P.
Advantages:
- Thanks to the special pole mount, the antenna can be installed in both vertical and horizontal polarization without adapters or other accessories.
- The geometric distribution of dipoles has been redesigned to achieve excellent filtering for interfering signals in the 5G and 4G LTE bands above 694 MHz reserved for mobile telephony.
- Equipped with excellent mechanical strength of fixing the elements to the cradle, excellent mechanical resistance to rotation on the pole, good electrical performance.
- White color antenna
Data sheet
- Type: Antennas
- Version: UHF
