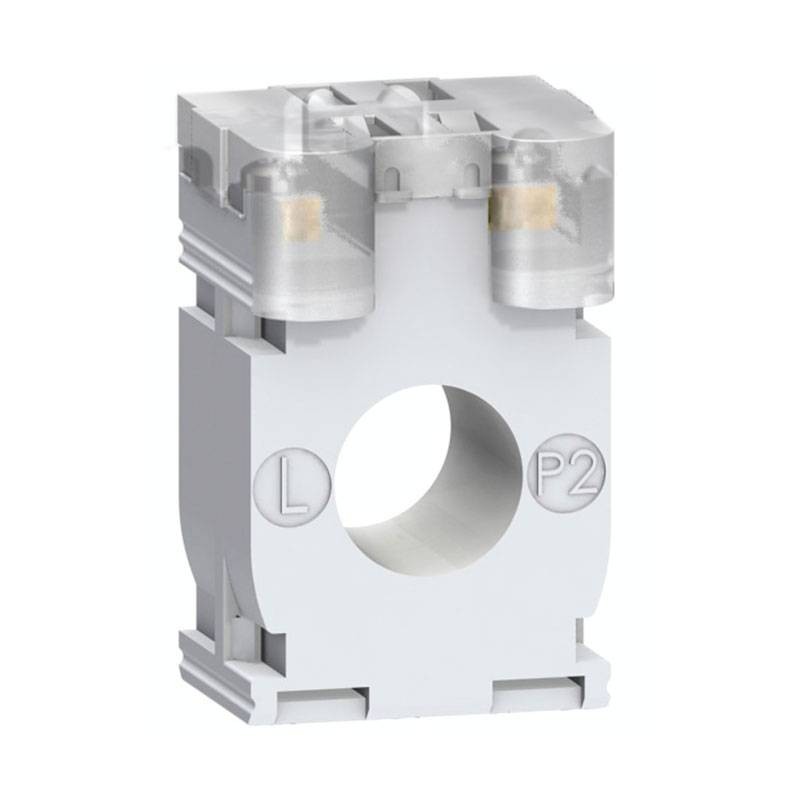

Schneider 75/5A Amperometric Transformer for Cables 21mm METSECT5CC008

Schneider
Schneider
SNR METSECT5CC008 3303430164524

Schneider tropicalized Amperometric Transformer for 21mm cables with the following characteristics:

  • Secondary current: 5 A
  • Rated current In: 75 A
  • Conventional thermal current in air Ith: 4.5 kA
  • Dynamic resistance current: 2.5 Ith
  • Rated operating voltage Ue: 720 V "AC" "50/60 Hz"
  • Rated insulation voltage Ui: 3 kV
  • Rated impulse withstand voltage Uimp: 3 kV
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider 75/5A Amperometric Transformer for Cables 21mm METSECT5CC008
€26.18
€26.18

€26.18
Tax included
Calculate shipping cost
Out of stock
Further availability of the manufacturer
Incoming
€26.18

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Characteristics:

  • Accuracy class: Class 1 at 1.25 VA - Class 3 at 1.5 VA
  • Mounting mode: Attachment With screws
  • Mounting medium: Mounting plate - DIN rail
  • Insulation class: B
  • Relative humidity: 0/95 %
  • Operating environment temperature: -25/60 °C
  • Degree of protection: IP20

Dimensions and weight:

  • External height: 65 mm
  • External width 44 mm
  • Frame depth 30 mm
  • Total depth 37 mm
  • Diameter 21 mm
  • Cable outer diameter 21 mm
  • Weight: 190 grams

There are no reviews

Data sheet

Type:
Toroidal Transformers
Amps:
75A
