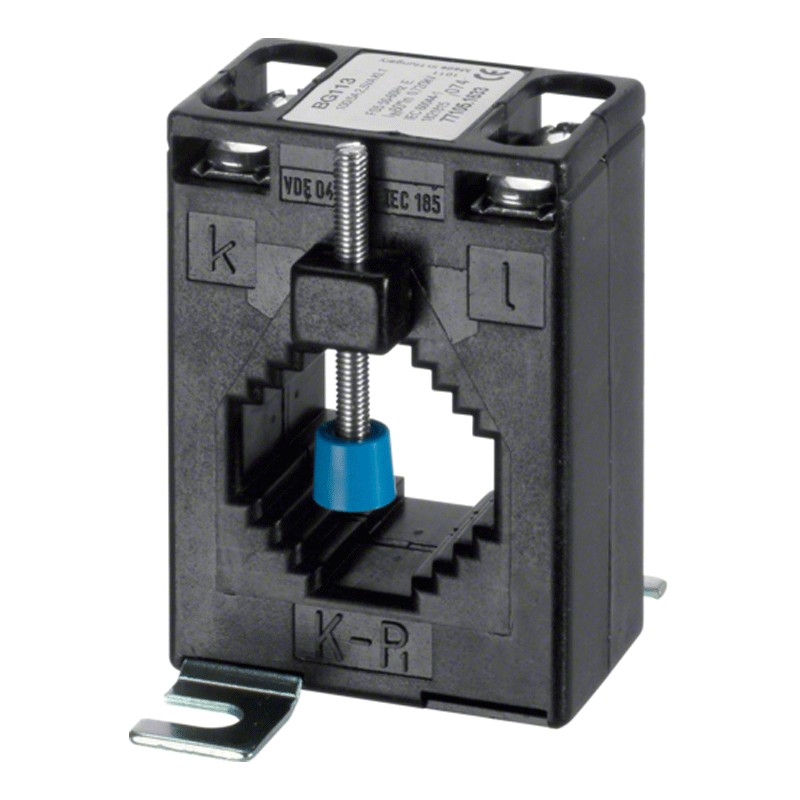

Current Transformer Hager 250/5 BG 113 SRA02505
HAG SRA02505
4049857139354
Hager Current Transformer:
- Maximum primary current 250A
- Maximum secondary current 5A
- Primary current 250A
- Accuracy class 1
- Rated insulation voltage 3 kV
Current Transformer Hager 250/5 BG 113 SRA02505
€26.27
€26.27
Tax included
Tax included
Pay in installments with Klarna
Items Available: 5
Features:
- Product type plug-in current transformer
- Mounting mode DIN rail or on a mounting plate
- Rated frequency 50/60 Hz
- Total power dissipation 2.6 W
- Depth of installed product 30 mm
- Height of installed product 70 mm
- Installed product width 49.5 mm
- opening width 29.5 mm
- opening height 20 mm
- Bar or cable section 30x10mm / 25x15mm / 20x20mm
- Minimum section with flexible cable 1.5 / 6mm²
- Minimum cross-section with rigid cable 1.5 / 6mm²
- Type of screw connection
- Number of inputs 1
- With touch protection yes
- Transformation ratio 250A, 5A
- Enclosure degree of protection IP10
- Operating temperature -40/+40 °C
- Storage/transport temperature -40/+40 °C
There are no reviews
Data sheet
- Type:
- Toroidal Transformers
- Amps:
- 250A
