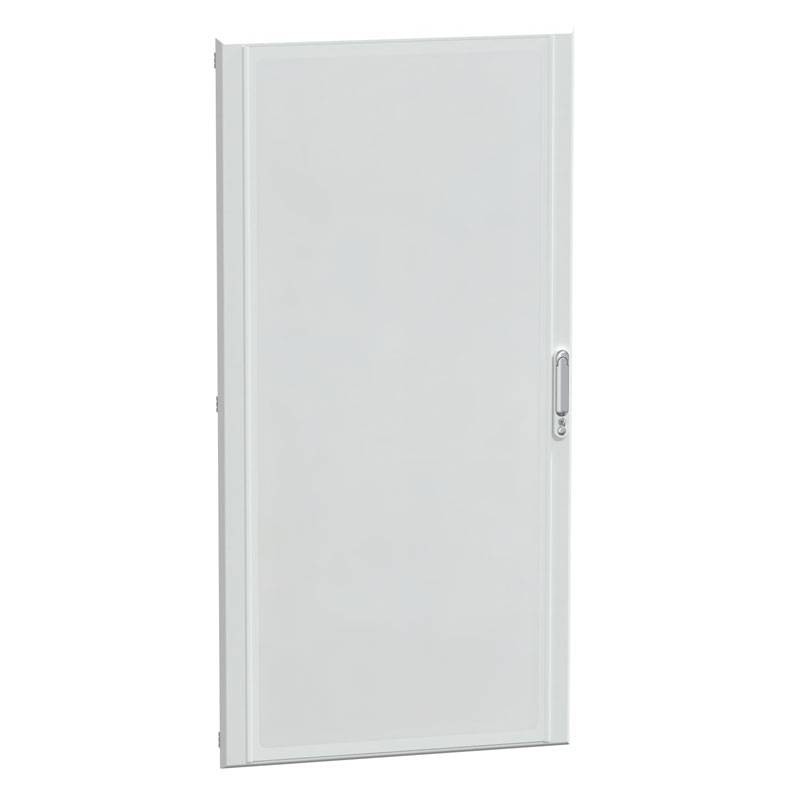

Schneider PrismaSet G W850 33M IP30 LVS08264 Transparent Door for Schneider PrismaSet Panels

Schneider
Schneider
SNR LVS08264 3606481878342

Schneider PrismaSet G W850 33M IP30 transparent door with the following features:

  • Product range: PrismaSet G
  • Product type or component: Door
  • Range Compatibility: PrismaSet G housing
  • Door Type: Transparent
  • Door opening side: Reversible
  • Number of locks: 3
  • Door opening angle: 130°
  • Number of vertical modules (50 mm) 33
  • Degree of protection: IP30
  • Degree of protection: IK08 in accordance with EN/IEC 62262
  • Protective treatment: electrophoresis treatment and heat-cured polyester epoxy powder
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider PrismaSet G W850 33M IP30 LVS08264 Transparent Door for Schneider PrismaSet Panels
€736.92
€736.92

€736.92
Tax included
Calculate shipping cost
Items Available: 5
Further availability of the manufacturer
€736.92

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

IP rating:

  • IP43 with IP43 door, canopy and gasket
  • IP30 without door
  • IP40 with door
  • IP41 with door and canopy

Installation description:

  • 850 mm wide wall-mounted cabinet

Equipment provided:

  • Door handle
  • Key lock (key 405)
  • Other key lock and insert to be ordered separately
  • 3 hinges

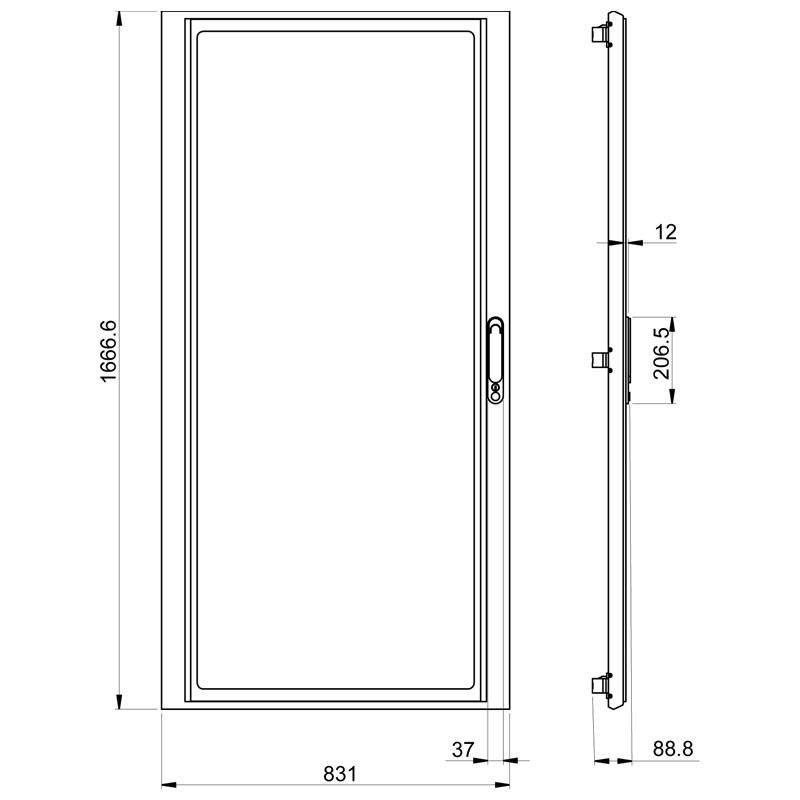

Dimensions and weight:

  • Height: 1650 mm
  • Width: 850 mm
  • Depth: 40 mm
  • Weight: 15.4 kg

There are no reviews

Data sheet

Type:
Doors
Modules:
33
Degree of protection:
IP30
