Schneider PrismaSet G W600 23M G IP55 Transparent Door LVS08336

Schneider
Schneider
SNR LVS08336 3606481878564

Schneider PrismaSet G W600 23M transparent door with the following features:

  • Product range: PrismaSet G
  • Product type or component: Door
  • Range Compatibility: PrismaSet G housing
  • Door Type: Transparent
  • Door opening side: Reversible
  • Number of locks: 3
  • Door opening angle: 180°
  • Number of vertical modules (50 mm) 23
  • Degree of protection IP55
  • Degree of protection: IK10 in accordance with EN/IEC 62262
  • Protective treatment: electrophoresis treatment and heat-cured polyester epoxy powder
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider PrismaSet G W600 23M G IP55 Transparent Door LVS08336
€471.25
€471.25

€471.25
Tax included
Calculate shipping cost
Items Available: 8
Further availability of the manufacturer
€471.25

Buy it within and receive it from Wednesday, 11 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Installation description:

  • Wall-mounted cabinet width 600 mm
  • Extension cabinet width 600 mm

Equipment provided:

  • Door handle
  • Key lock (key 405)
  • Other key lock and insert to be ordered separately
  • 2 hinges

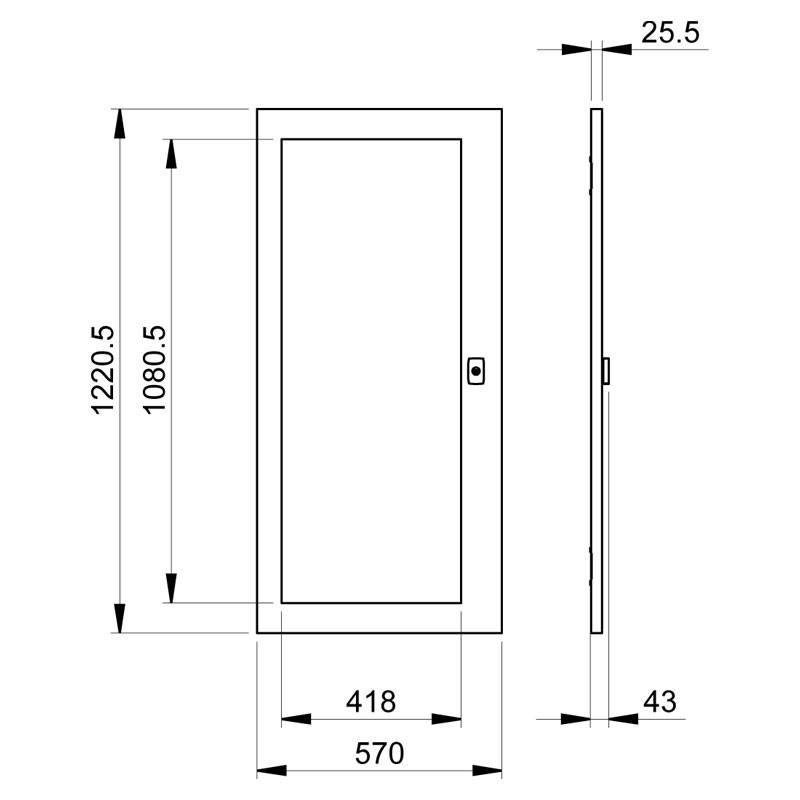

Dimensions and weight:

  • Height: 1250 mm
  • Width: 600 mm
  • Depth: 26 mm
  • Weight: 18.26 kg

There are no reviews

Data sheet

Type:
Doors
Modules:
23
Degree of protection:
IP55
