Schneider Prisma G 33M IP55 Transparent Door LVS08339

Schneider
Schneider
SNR LVS08339 3606481878588

Schneider Prisma G 33M IP55 transparent door with the following features:

  • Product range: PrismaSeT G
  • Product type or component: Door
  • Compatibility range: PrismaSeT - PrismaSeT G Cassette
  • Door type: Transparent
  • Degree of protection: IP55
  • Degree of protection IK10 according to EN/IEC 62262
  • Door opening side: Reversible
  • Number of locking devices: 3
  • Door opening angle: 180°
  • Number of vertical modules (50 mm): 33
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider Prisma G 33M IP55 Transparent Door LVS08339
€765.39
€765.39

€765.39
Tax included
Calculate shipping cost
Items Available: 7
Further availability of the manufacturer
€765.39

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Installation Description: 600 mm wide wall box - 600 mm wide square extension
  • Material: Glass
  • Enclosure material: Glass - Treated sheet steel
  • Surface finish: Matt textured
  • Reference Standards: IEC 61439-1 - IEC 61439-2
  • Protection treatment: Electrophoresis treatment and cured polyester epoxy powder

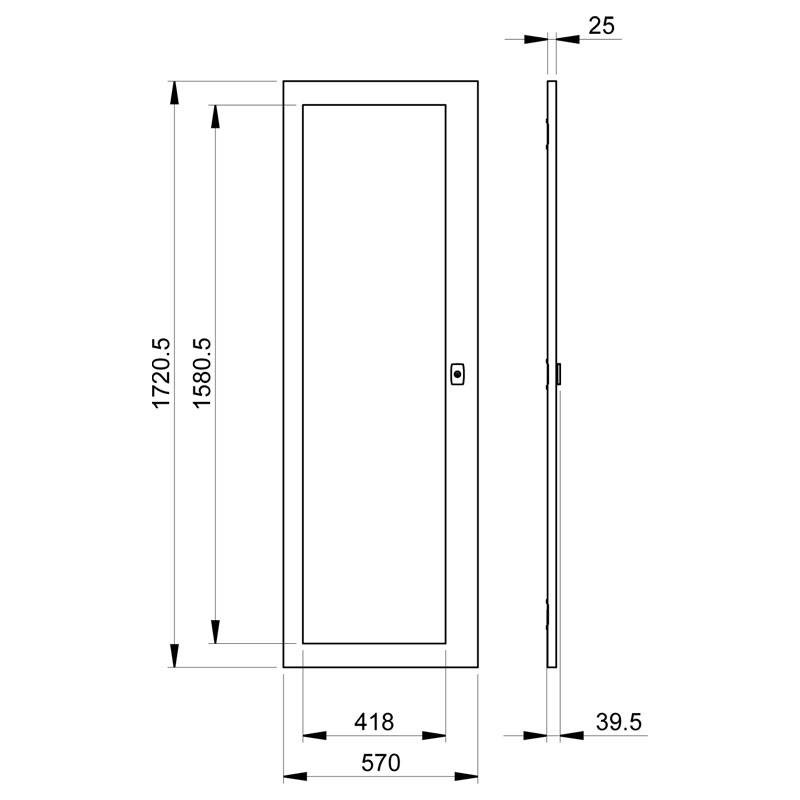

  • Dimensions: height 1750 mm - width 600 mm - depth 26 mm


Equipment provided:

  • Door
  • Knob
  • Key lock (key 405)
  • Other key lock and insert to be ordered separately
  • 3 Hinges

There are no reviews

Data sheet

Type:
Doors
Modules:
33
Degree of protection:
IP55
