Schneider PrismaSet G W600 18M IP30 LVS08136 Transparent Panelboard Door

Schneider
Schneider
SNR LVS08136 3606481879110

Schneider PrismaSet G W600 18M transparent door with the following features:

  • Product range: PrismaSet G
  • Product type or component: Door
  • Range Compatibility: PrismaSet G housing
  • Door Type: Transparent
  • Door opening side: Reversible
  • Number of locks: 2
  • Door opening angle: 130°
  • Number of vertical modules (50 mm) 18
  • Degree of protection: IP30
  • Degree of protection IK: IK08 in accordance with EN/IEC 62262
  • Protective treatment: electrophoresis treatment and heat-cured polyester epoxy powder
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider PrismaSet G W600 18M IP30 LVS08136 Transparent Panelboard Door
€243.14
€243.14

€243.14
Tax included
Calculate shipping cost
Items Available: 12
Further availability of the manufacturer
€243.14

Buy it within and receive it from Friday, 6 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

IP rating:

  • IP43 with IP43 door, canopy and gasket
  • IP30 without door
  • IP40 with door
  • IP41 with door and canopy

Installation description:

  • Wall-mounted cabinet width 600 mm
  • Extension cabinet width 600 mm

Enclosure material:

  • Handle: polyamide
  • Glass
  • Cover frame: treated sheet steel

Equipment provided:

  • Door handle
  • Key lock (key 405)
  • Other key lock and insert to be ordered separately
  • 2 hinges

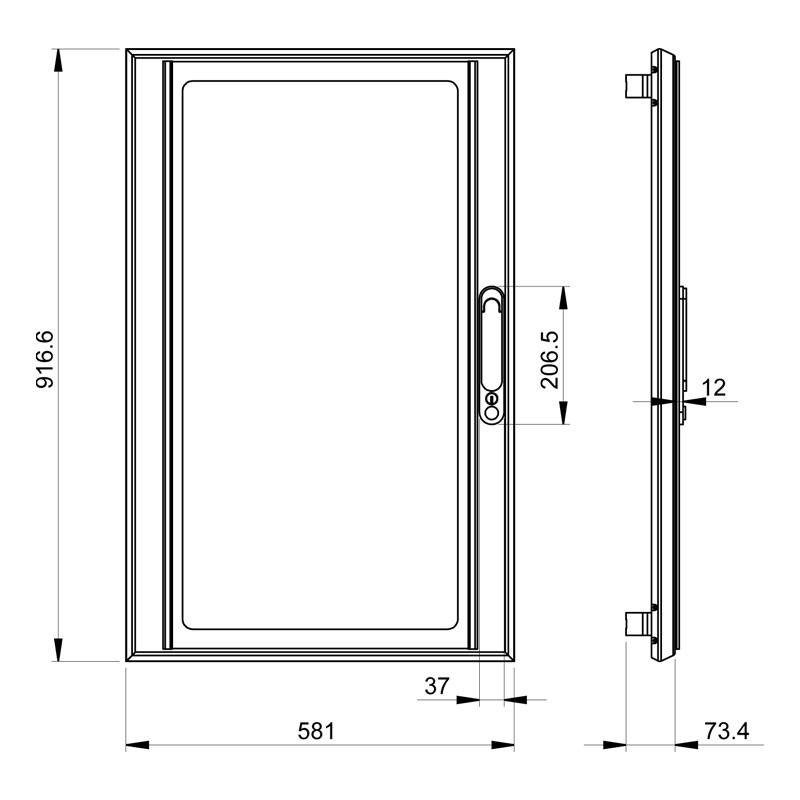

Dimensions and weight:

  • Height: 930 mm
  • Width: 600 mm
  • Depth: 36 mm
  • Weight: 6.36 kg

There are no reviews

Data sheet

Type:
Doors
Modules:
18
Degree of protection:
IP30
