Schneider Prisma G W600 15M IP30 Transparent Door LVS08135
SNR LVS08135
3606481879103

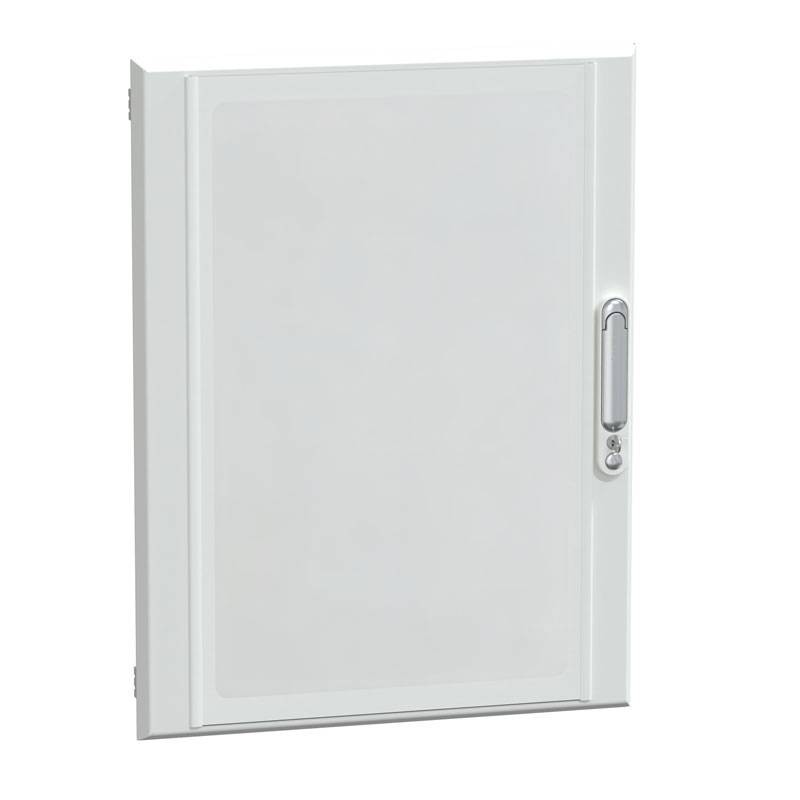

Schneider Prisma G transparent door with the following features:
- Range compatibility: PrismaSet G housing
- Door type: Transparent
- Door opening side: Reversible
- Number of locks: 2
- Door opening angle: 130°
- Number of vertical modules (50 mm): 15
€219.02
Items Available: 14
: 2
IP rating:
- IP43 with IP43 door, canopy and gasket
- IP30 without door
- IP40 with door
- IP41 with door and canopy§
Housing material:
- Handle: polyamide
- Glass
- Cover frame: treated sheet steel
Installation description:
- Wall cabinet - width 600 mm
- Extension cabinet - width 600 mm

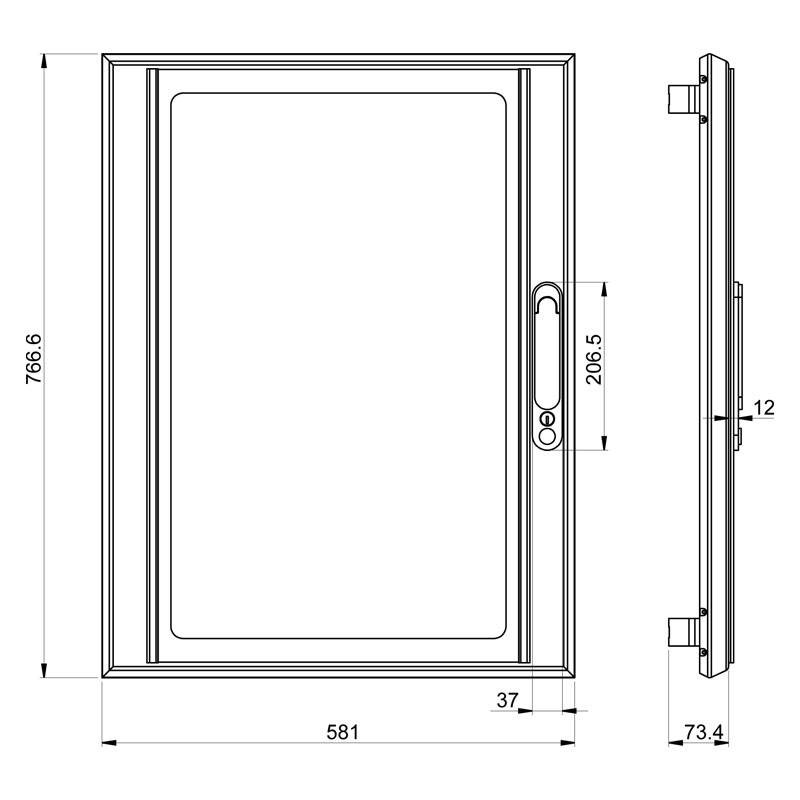

Dimensions:
- Height: 780 mm
- Width: 600 mm
- Depth: 36 mm
- Weight: 5.52 kg
There are no reviews
Data sheet
- Type: Doors
- Modules: 15
- Degree of protection: IP30
