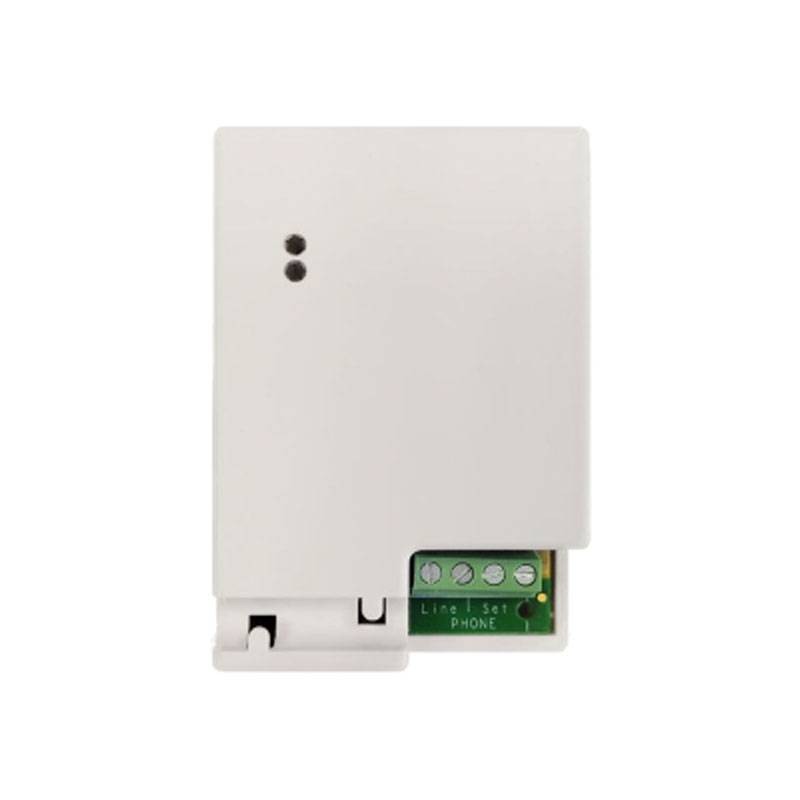

Risco Plug-In PSTN Module for LightSYS Plus Control Panel RP432PSTN00A
RSK RP432PSTN00A
8485840085202
Risco Plug-In PSTN module for LightSYS+ control panels for voice communications and sending events to security agencies via standard protocols. Ideal as a main or backup channel.
-
Easy-to-install plug-in PSTN module
-
Communication with Surveillance Institutes (CMS)
-
Use as a main or backup channel
-
Support for voice calls and beeps
-
Compatible with standard SIA and Contact ID protocols
-
Follow me feature with voice messages
-
Supports incoming calls with voice module installed
€49.86
Items Available: 4
Frequently bought together
Risco Plug-In PSTN Module: Secure and integrated voice communication for LightSYS+
The Risco RP432PSTN00A PSTN module enables the LightSYS Plus central unit to communicate securely with surveillance centers (CMSs) and users, using the traditional landline telephone network. It is lideal as the main communication channel or as a backup to the IP/Wi-Fi or Cloud link.
Standard protocol for maximum compatibility
With support for SIA and Contact ID protocols, the PSTN module ensures full compatibility with professional monitoring systems, ensuring the timely sending of alarms and notifications to security institutions.
Follow Me function and voice communication
-
The Follow Me function allows you to set up voice calls to predefined numbers with recorded voice messages
-
In the absence of a voice module, the PSTN can still notify an alarm via telephone beeps
-
If a voice module is present, the PSTN handles incoming calls and enables remote functions via DTMF, such as system arming/disarming.
Simple and versatile installation
The module connects directly to the LightSYS+ control panel, thanks to the plug-in format, simplifying integration into new systems or retrofits of existing systems.
Technical specifications of the RISCO Plug-In PSTN Module
| Feature | Detail |
|---|---|
| Product Code. | RP432PSTN00A |
| Type | PSTN Plug-In Module |
| Compatibility | RISCO LightSYS Plus Control Panel |
| Supported Protocols | SIA, Contact ID |
| Communication with CMS | Yes |
| Voice communication | Yes (with optional voice module) |
| Follow Me function | Yes, with beeps or voice messages |
| Incoming calls | Yes, with DTMF remote control (if voice module) |
| Backup for Cloud/IP | Yes |
| Installation | Plug-in directly to central unit |
| Power supply | 13.8VDC |
| Power consumption | Standby: 30mA Communication: 100mA |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Relative humidity | ≤ 75% |
| Dimensions (W x D x H) | 88mm x 52mm x 16.5mm |
